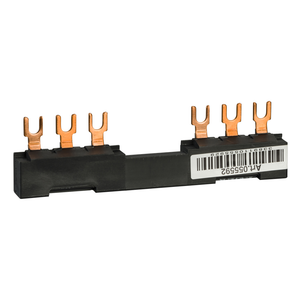

Schneider Electric GV2G472 4 Tap Offs Busbar Gv2 63A 72Mm Pitch

Schneider Electric GV2G472 4 Tap Offs Busbar Gv2 63A 72Mm Pitch

Schneider Electric
SKU:
GV2G472
|
UPC:
3389110555868
Availability:
Contact us to confirm availability and lead times.
$34.20
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
TeSys GV busbar set, 3 phases, 63A/690V, for the upstream parallel wiring of groups of motor starters composed of GV2 motor circuit breakers or LS1D32 fuse carriers. For use with screw clamp terminal devices, it is composed of 4 tap-off outlets for the paralleling of 2 devices with a pitch of 72mm. The use of a terminal block GV1G09 or GV2G05 is recommended to supply the busbar sets (to be ordered separately). Green Premium compliant (RoHS/REACh).
Additional Information
Device Short Name:
GV2G
Toxic Heavy Metal Free:
Yes
Product Name:
FT
China Rohs Regulation:
X
Number Of Tap-Offs:
4
Product Or Component Type:
comb busbar
Eu Rohs Directive:
Compliant
Length:
260 mm
Connection Pitch:
72 mm
[Ith] Conventional Free Air Thermal Current:
63 A
Reach Free Of Svhc:
Yes
Net Weight:
0.094 kg
Poles Description:
3P
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Rohs Exemption Information:
Yes
Mercury Free:
Yes
Mounting Location:
on terminal
[Ui] Rated Insulation Voltage:
690 V
Range:
Linergy
Range Compatibility:
TeSys D || TeSys GV2 || TeSys K || TeSys U
Accessory / Separate Part Category:
connection accessory
Warranty:
18 months
