Schneider Electric GV4APN04 Tesys Extended Rotaryhandle Ip65 Red Bv4

Schneider Electric GV4APN04 Tesys Extended Rotaryhandle Ip65 Red Bv4

Schneider Electric
SKU:
GV4APN04
|
UPC:
3.60649E+12
Availability:
Contact us to confirm availability and lead times.
$315.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

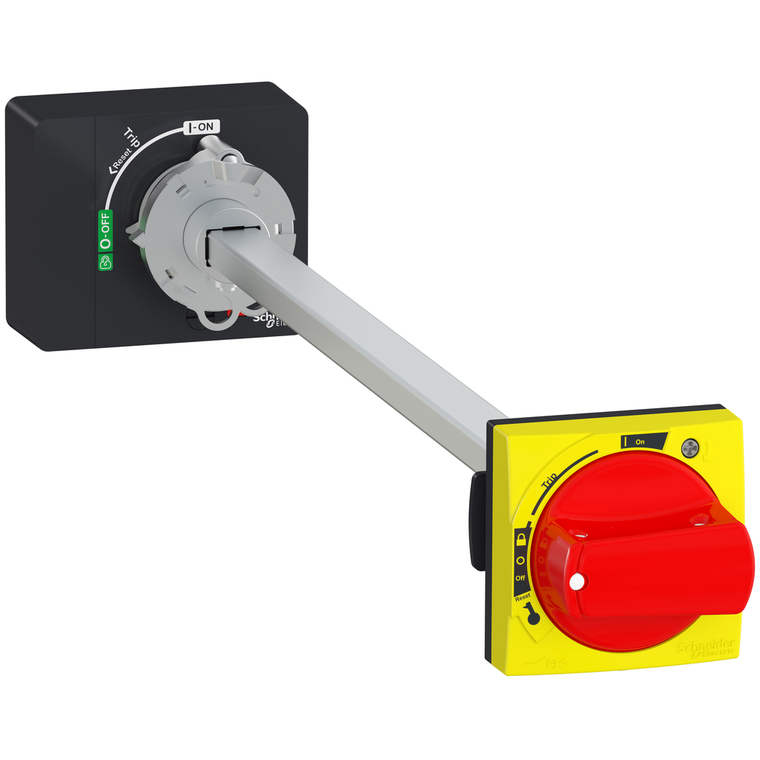

TeSys GV extended rotary handle, for motor circuit breakers GV4 mounted inside an enclosure and to be operated externally. For emergency switch usage, it provides a red handle on yellow front plate with indication of 3 positions OFF, ON, TRIP. To be mounted on the door of the enclosure, the handle mechanism ensures an IP65 protection to the mounting. It also includes a mounting adaptor to be screwed on the face of the circuit breaker, and an extension shaft to be be adjusted in length (distance between the door and the back of the circuit breaker must be in range 214-627mm). Padlockable in OFF position with up to 3 padlocks (to be ordered separately). Green Premium compliant (RoHS/REACh).
Additional Information
Locking Options Description:
1 to 3 padlocks Ø 4 to Ø 8
Accessory / Separate Part Category:
control accessory
Ip Degree Of Protection:
IP65
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Rotary Handle Padlocking:
1 to 3 padlocks || padlock in ON position || padlock in OFF position
Marking:
OFF - Trip - ON
Sustainable Offer Status:
Green Premium product
Environmental Disclosure:
ENVPEP1704004EN
Circularity Profile:
ENVEOLI1704004EN
Range:
TeSys || TeSys Deca
Rohs Exemption Information:
Yes
Rotary Handle Mounting Style:
extended
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Handle Front Plate Colour:
yellow
Mercury Free:
Yes
Back/Door Distance:
214-627 mm
Mounting Location:
door of enclosure
Mounting Mode:
fixed
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Product Or Component Type:
rotary handle kit
Range Compatibility:
TeSys TeSys GV4 || TeSys TeSys BV4 || TeSys TeSys Deca
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Handle Colour:
red
Datasheet:
View
