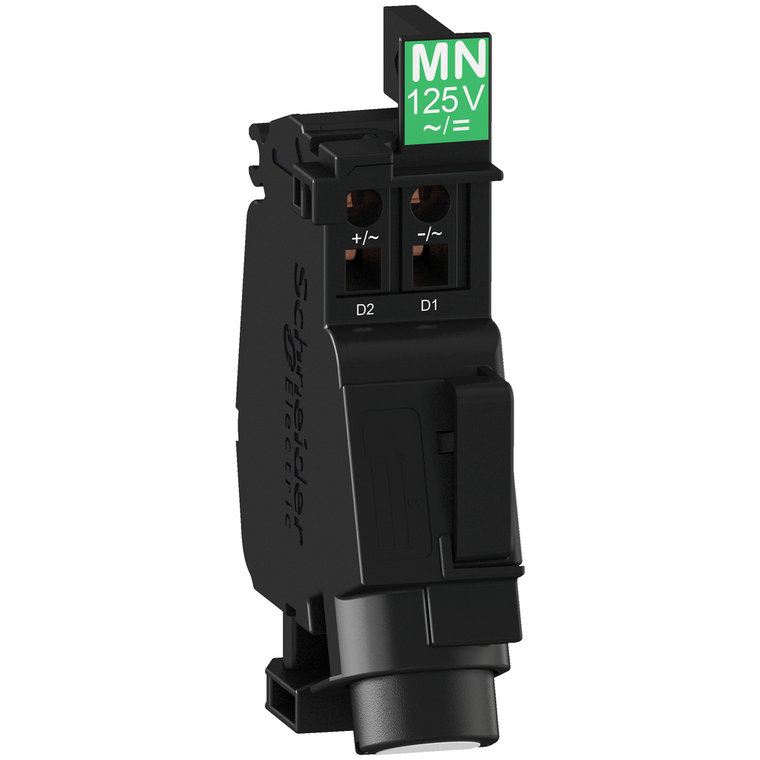

Schneider Electric GV4AU137 Coil Uvr Mn 110-130V Ac/Dc For Gv4 Bv4

Schneider Electric GV4AU137 Coil Uvr Mn 110-130V Ac/Dc For Gv4 Bv4

Schneider Electric
SKU:
GV4AU137
|
UPC:
3606485444833
Availability:
Contact us to confirm availability and lead times.
$277.50
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
TeSys GV electrical trip unit, MN undervoltage release, 110-130V AC 50/60Hz and 125V DC, for motor circuit breakers GV4. Opening of the the circuit breaker is ensured when the control voltage drops below 0.35 Uc, and possible between 0.35-0.7 Uc. Closing of the circuit breaker is possible when the control voltage is in limits 0.85-1.1 Uc. To be plugged inside the circuit breaker, connection by spring terminals. Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).
Additional Information
Wire Stripping Length:
8 mm
Connections - Terminals:
spring terminals 1 0.5-1.5 mm² - cable stiffness: flexible without cable end
Circularity Profile:
ENVEOLI2311042EN
Device Application:
control
[Ui] Rated Insulation Voltage:
130 V IEC 60947-1
Voltage Release Type:
undervoltage release
Maximum Hold-In Power Consumption In Va:
7 VA
Operating Time:
< 50 ms
Product Or Component Type:
voltage release
Mounting Mode:
internal mounting
Maximum Inrush Power In Va:
7 VA
[Uc] Control Circuit Voltage:
110...130 V AC 50/60 Hz || 125 V DC
Eu Rohs Directive:
Compliant with Exemptions
Range:
TeSys
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Environmental Disclosure:
ENVPEP2311042EN
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Maximum Inrush Power In W:
2 W
Maximum Hold-In Power Consumption In W:
2 W
Device Short Name:
MN
Quantity Per Set:
set of 1
Range Compatibility:
TeSys TeSys GV4 || TeSys TeSys BV4
Threshold Tripping Voltage:
< 0.35 Un failsafe opening || 0.35...0.7 Un possible opening || 0.85...1.1 Un enabled closing
Rohs Exemption Information:
Yes
Mechanical Durability:
20000 cycles
Mercury Free:
Yes
