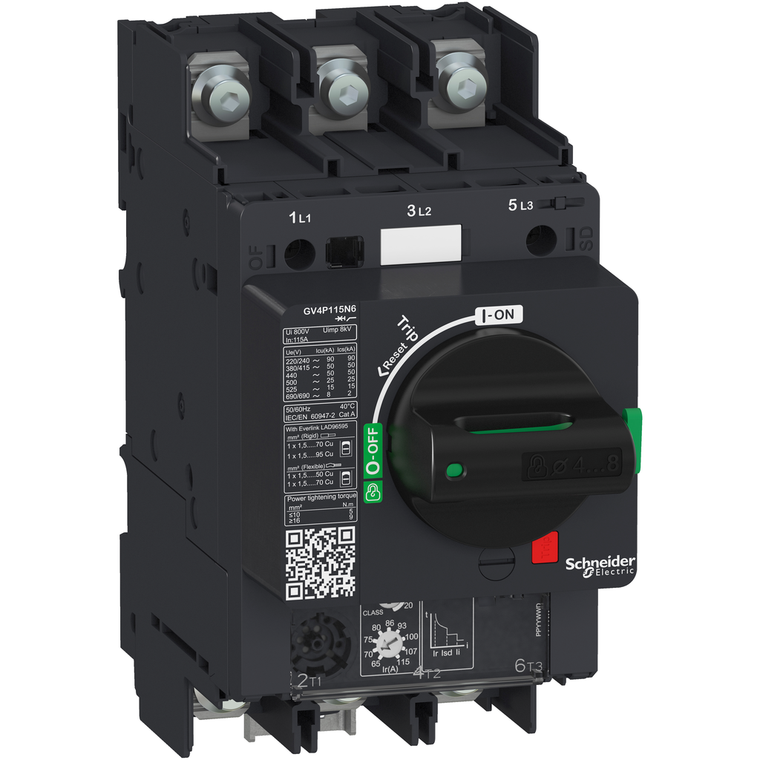

Schneider Electric GV4P115N6 Motor circuit breaker, TeSys GV4, 3P, 115A, Icu 50kA, thermal magnetic, lugs terminals

(No reviews yet) Write a Review
SKU:
GV4P115N6
MPN:
GV4P115N6
Condition:
New
Motor Power Kw:
37-37 kW 400...415 V AC 50/60 Hz || 45-45 kW 400...415 V AC 50/60 Hz || 55-55 kW 400...415 V AC 50/60 Hz || 45-45 kW 500 V AC 50/60 Hz || 55-55 kW 500 V AC 50/60 Hz || 75-75 kW 500 V AC 50/60 Hz || 75-75 kW 660...690 V AC 50/60 Hz || 90-90 kW 660...6
Device Application:
motor protection
Magnetic Tripping Current:
1955-1955 A
Product Certifications:
IEC || UL || CSA || CCC || EAC || ATEX || EU-RO MR
Tightening Torque:
9 N.m 16-95 mm² || 5 N.m 1.5-10 mm²
Power Dissipation Per Pole:
4.6 W
Ambient Air Temperature For Operation:
-25-70°C
Standards:
CSA C22.2 No 60947-4-1 || UL 60947-4-1 || EN/IEC 60947-4-1 || EN/IEC 60947-2
[Ui] Rated Insulation Voltage:
800 V AC 50/60 Hz IEC 60947-2
Range Of Product:
TeSys GV4
Trip Unit Technology:
electronic || thermal-magnetic
Operating Altitude:
5000 m
Warranty:
18 months
Depth:
165 mm
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Connections - Terminals:
lugs-ring terminals
Mechanical Durability:
40000 cycles
Product Name:
TeSys GV4 || TeSys Deca
Mechanical Robustness:
vibrations +/- 1 mm 2...13.2 Hz IEC 60068-2-6 || vibrations 0.7 gn 13.2...100 Hz IEC 60068-2-6 || shocks 15 gn 11 ms IEC 60068-2-27
[Ith] Conventional Free Air Thermal Current:
115 A IEC 60947-4-1
Eu Rohs Directive:
Compliant with Exemptions
Pollution Degree:
3
Circularity Profile:
ENVEOLI1704004EN
Ambient Air Temperature For Storage:
-50-85°C
Halogen Content Performance:
Halogen free plastic parts product
Product Or Component Type:
motor circuit breaker
Weight:
1.6 kg
Net Weight:
1.6 kg
Mercury Free:
Yes
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Ik Degree Of Protection:
IK07 IEC 62262
Rohs Exemption Information:
Yes
Suitability For Isolation:
yes IEC 60947-1
Breaking Capacity:
100 kA Icu 220...240 V AC 50/60 Hz IEC 60947-2 || 50 kA Icu 380...415 V AC 50/60 Hz IEC 60947-2 || 50 kA Icu 440 V AC 50/60 Hz IEC 60947-2 || 15 kA Icu 525 V AC 50/60 Hz IEC 60947-2 || 65 kA 208Y/120 V AC 50/60 Hz UL 60947 || 65 kA 240 V AC 50/60 Hz
Fire Resistance:
960°C IEC 60695-2-11
Climatic Withstand:
IACS E10
Utilisation Category:
category A IEC 60947-2 || AC-3 IEC 60947-4-1
Color:
Gray RAL 7016)
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-2
Rated Duty:
continuous IEC 60947-4-1
Environmental Disclosure:
ENVPEP1704004EN
Control Type:
rotary handle
Poles Description:
3P
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Maximum Operating Rate:
25 cyc/h
Range:
TeSys Deca
Sustainable Offer Status:
Green Premium product
Electrical Durability:
10000 cycles AC-3 440 V In/2 || 5000 cycles AC-3 440 V In
$1,342.50

Description

TeSys GV motor circuit breaker, 3 poles (3P), 115A/690V, for protection of 3-phase motors 37-55kW@400V. It provides thermal magnetic protection and additional motor protection functions, breaking capacity Icu 50kA@400V, start-stop control by rotary handle, connection for bars or cables with lugs. Thermal protection adjustable by dials with a setting current Ir in range 65-115A and a selectable tripping class 10 or 20, magnetic protection at 17 In. Additional protections have fixed pick-up and include short time delay protection Isd at 13 Ir, phase unbalance and loss protection, ground fault protection. It makes internal locations available for additional auxiliary contact blocks (OF, SD), and voltage trip units (MN, MX). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).
