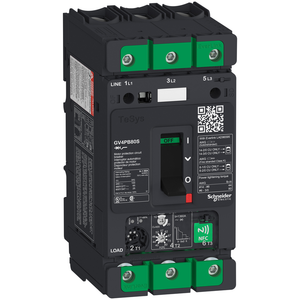

Schneider Electric GV4PB07S Motbreakgv4Pbul489Th/Mag 7A 100Ka Elink

Schneider Electric GV4PB07S Motbreakgv4Pbul489Th/Mag 7A 100Ka Elink

Schneider Electric
SKU:
GV4PB07S
|
UPC:
3606489868659
Availability:
Contact us to confirm availability and lead times.
$508.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
TeSys GV motor circuit breaker, 3 poles (3P), 7A/690V, for protection of 3-phase motors 1.5-3kW@400V. Multifunction circuit breaker UL489 compliant, it provides thermal magnetic protection and advanced motor protection, breaking capacity Icu 100kA@400V, start-stop control by toggle, connection by Everlink BTR screw terminals. Thermal protection adjustable by dials with a setting current Ir in range 2.9-7A, a selectable tripping class 10 or 20, rated tripping current 125%, magnetic protection at 17 In. Advanced protections are adjustable with a smartphone using wireless NFC and include short time delay protection Isd with a setting range 5-13 Ir, phase unbalance and loss protection, ground fault protection, locked rotor (jam), long start. It makes internal locations available for additional auxiliary contact blocks (OF, SD), and voltage trip units (MN, MX). It can be equiped externally with 1 or 2 auxiliary SDx modules in order to have alarming and fault differentiation. Multi standards certified (IEC, UL 489, CSA C22.2 N°5), Green Premium compliant (RoHS/REACh).
Additional Information
Color:
Gray RAL 7016)
Depth:
116 mm
Line Rated Current:
0.291666666666667
Environmental Disclosure:
ENVPEP1704004EN
Mechanical Durability:
40000 cycles
Range Of Product:
TeSys GV4
Control Type:
toggle
Pollution Degree:
3
[Ith] Conventional Free Air Thermal Current:
115 A IEC 60947-4-1
Operating Position:
any position
Product Or Component Type:
motor circuit breaker
Pvc Free:
Yes
Climatic Withstand:
IACS E10
Utilisation Category:
category A IEC 60947-2 || AC-3 IEC 60947-4-1
Power Dissipation Per Pole:
4.6 W
Breaking Capacity:
100 kA SCCR 240 V AC 60 Hz UL 489 || 65 kA SCCR 480Y/277 V AC 60 Hz UL 489 || 25 kA SCCR 600Y/347 V AC 60 Hz UL 489 || 120 kA Icu 220/240 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 380/415 V AC 50/60 Hz IEC 60947-2 || 70 kA Icu 440 V AC 50/60 Hz IEC 609
Ip Degree Of Protection:
IP40 IEC 60529
Warranty:
18 months
Range:
TeSys Deca
Eu Rohs Directive:
Compliant with Exemptions
Height:
171 mm
Product Name:
TeSys GV4 || TeSys Deca
Electrical Durability:
40000 cycles AC-3 440 V In/2 || 40000 cycles AC-3 440 V In
Device Short Name:
GV4PB
Suitability For Isolation:
yes IEC 60947-1
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation:
-25-70 °C
Fire Resistance:
960 °C IEC 60695-2-11
Phase Failure Sensitivity:
yes IEC 60947-4-1
Trip Unit Technology:
thermal-magnetic || electronic
Poles Description:
3P
Mercury Free:
Yes
Circularity Profile:
ENVEOLI1704004EN
Width:
81 mm
Rated Duty:
continuous IEC 60947-4-1
Mechanical Robustness:
vibrations +/- 1 mm 2...13.2 Hz IEC 60068-2-6 || vibrations 0.7 gn 13.2...100 Hz IEC 60068-2-6 || shocks 15 gn 11 ms IEC 60068-2-27
Tightening Torque:
9 N.m 16-95 mm² || 5 N.m 1.5-10 mm²
Sustainable Offer Status:
Green Premium product
[Ics] Rated Service Short-Circuit Breaking Capacity:
100 % 220/240 V AC 50/60 Hz IEC 60947-2 || 100 % 380/415 V AC 50/60 Hz IEC 60947-2 || 100 % 440 V AC 50/60 Hz IEC 60947-2 || 100 % 500 V AC 50/60 Hz IEC 60947-2 || 100 % 525 V AC 50/60 Hz IEC 60947-2 || 25 % 660/690 V AC 50/60 Hz IEC 60947-2
Net Weight:
1.45 kg
Maximum Operating Rate:
25 cyc/h
Device Application:
motor protection
Operating Altitude:
5000 m
Connections - Terminals:
EverLink BTR screw connectors top) 1 1.5-70 mm² - rigid || EverLink BTR screw connectors top) 1 1.5-50 mm² - flexible || EverLink BTR screw connectors bottom) 1 2.5-95 mm² - rigid || EverLink BTR screw connectors bottom) 1 2.5-70 mm² - flexible
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-2 || 600Y/347 V AC 60 Hz UL 489
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ambient Air Temperature For Storage:
-50-85 °C
Halogen Content Performance:
Halogen free plastic parts product
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
[Ui] Rated Insulation Voltage:
800 V AC 50/60 Hz IEC 60947-2
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Standards:
EN/IEC 60947-1 || EN/IEC 60947-2 || EN/IEC 60947-4-1 || UL 489 || CSA C22.2 No 5
Product Certifications:
IEC || UL || CSA
Ik Degree Of Protection:
IK07 IEC 62262
Rohs Exemption Information:
Yes
Magnetic Tripping Current:
119-119 A
Datasheet:
View
