Schneider Electric GV4PB80N Motbreakgv4Pbul489Th/Mag 80A 50Ka Elink
Schneider Electric
$551.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

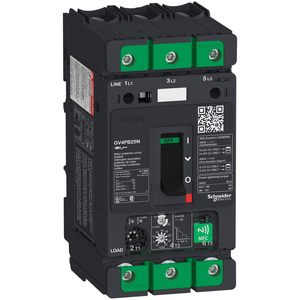

TeSys GV motor circuit breaker, 3 poles (3P), 80A/690V, for protection of 3-phase motors 22-37kW@400V. Multifunction circuit breaker UL489 compliant, it provides thermal magnetic protection and advanced motor protection, breaking capacity Icu 50kA@400V, start-stop control by toggle, connection by Everlink BTR screw terminals. Thermal protection adjustable by dials with a setting current Ir in range 40-80A, a selectable tripping class 10 or 20, rated tripping current 125%, magnetic protection at 17 In. Advanced protections are adjustable with a smartphone using wireless NFC and include short time delay protection Isd with a setting range 5-13 Ir, phase unbalance and loss protection, ground fault protection, locked rotor (jam), long start. It makes internal locations available for additional auxiliary contact blocks (OF, SD), and voltage trip units (MN, MX). It can be equiped externally with 1 or 2 auxiliary SDx modules in order to have alarming and fault differentiation. Multi standards certified (IEC, UL 489, CSA C22.2 N°5), Green Premium compliant (RoHS/REACh).
- Electrical Durability:
- 14000 cycles AC-3 440 V In/2 || 7000 cycles AC-3 440 V In
- Net Weight:
- 1.45 kg
- Tightening Torque:
- 9 N.m 16-95 mm² || 5 N.m 1.5-10 mm²
- Breaking Capacity:
- 65 kA SCCR 240 V AC 60 Hz UL 489 || 35 kA SCCR 480Y/277 V AC 60 Hz UL 489 || 18 kA SCCR 600Y/347 V AC 60 Hz UL 489 || 100 kA Icu 220/240 V AC 50/60 Hz IEC 60947-2 || 50 kA Icu 380/415 V AC 50/60 Hz IEC 60947-2 || 50 kA Icu 440 V AC 50/60 Hz IEC 60947
- Standards:
- EN/IEC 60947-1 || EN/IEC 60947-2 || EN/IEC 60947-4-1 || UL 489 || CSA C22.2 No 5
- Warranty:
- 18 months
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Line Rated Current:
- 80 A
- Poles Description:
- 3P
- Pollution Degree:
- 3
- Range Of Product:
- TeSys GV4
- [Ith] Conventional Free Air Thermal Current:
- 115 A IEC 60947-4-1
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pvc Free:
- Yes
- Magnetic Tripping Current:
- 1360-1360 A
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Operating Altitude:
- 5000 m
- Control Type:
- toggle
- Mechanical Durability:
- 40000 cycles
- Connections - Terminals:
- EverLink BTR screw connectors top) 1 1.5-70 mm² - rigid || EverLink BTR screw connectors top) 1 1.5-50 mm² - flexible || EverLink BTR screw connectors bottom) 1 2.5-95 mm² - rigid || EverLink BTR screw connectors bottom) 1 2.5-70 mm² - flexible
- Environmental Disclosure:
- ENVPEP1704004EN
- Ik Degree Of Protection:
- IK07 IEC 62262
- Maximum Operating Rate:
- 25 cyc/h
- Height:
- 171 mm
- Product Or Component Type:
- motor circuit breaker
- Depth:
- 116 mm
- Ip Degree Of Protection:
- IP40 IEC 60529
- Device Short Name:
- GV4PB
- Mercury Free:
- Yes
- Eu Rohs Directive:
- Compliant with Exemptions
- Range:
- TeSys Deca
- Rohs Exemption Information:
- Yes
- Operating Position:
- any position
- Ambient Air Temperature For Operation:
- -25-70 °C
- Power Dissipation Per Pole:
- 4.6 W
- Halogen Content Performance:
- Halogen free plastic parts product
- Width:
- 81 mm
- Product Certifications:
- IEC || UL || CSA
- Phase Failure Sensitivity:
- yes IEC 60947-4-1
- Trip Unit Technology:
- thermal-magnetic || electronic
- Product Name:
- TeSys GV4 || TeSys Deca
- Circularity Profile:
- ENVEOLI1704004EN
- Suitability For Isolation:
- yes IEC 60947-1
- Device Application:
- motor protection
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-2 || 600Y/347 V AC 60 Hz UL 489
- [Ui] Rated Insulation Voltage:
- 800 V AC 50/60 Hz IEC 60947-2
- Mechanical Robustness:
- vibrations +/- 1 mm 2...13.2 Hz IEC 60068-2-6 || vibrations 0.7 gn 13.2...100 Hz IEC 60068-2-6 || shocks 15 gn 11 ms IEC 60068-2-27
- Rated Duty:
- continuous IEC 60947-4-1
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Climatic Withstand:
- IACS E10
- Color:
- Gray RAL 7016)
- Fire Resistance:
- 960 °C IEC 60695-2-11
- Sustainable Offer Status:
- Green Premium product
- Ambient Air Temperature For Storage:
- -50-85 °C
- [Ics] Rated Service Short-Circuit Breaking Capacity:
- 100 % 220/240 V AC 50/60 Hz IEC 60947-2 || 100 % 380/415 V AC 50/60 Hz IEC 60947-2 || 100 % 440 V AC 50/60 Hz IEC 60947-2 || 100 % 500 V AC 50/60 Hz IEC 60947-2 || 100 % 525 V AC 50/60 Hz IEC 60947-2 || 25 % 660/690 V AC 50/60 Hz IEC 60947-2
- Utilisation Category:
- category A IEC 60947-2 || AC-3 IEC 60947-4-1
- Datasheet:
- View
