Schneider Electric GVAE113 Tesys Spring Therm Plug In Aux

Schneider Electric GVAE113 Tesys Spring Therm Plug In Aux

Schneider Electric
SKU:
GVAE113
|
UPC:
3389110346633
Availability:
Contact us to confirm availability and lead times.
$35.70
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

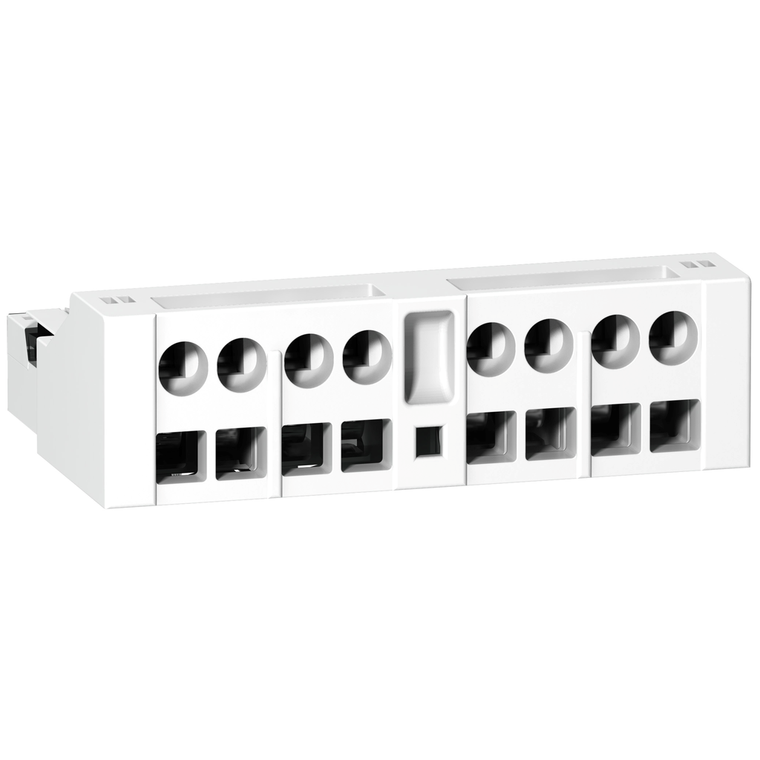

TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 1NO+1NC instantaneous auxiliary contacts. Rated for operation up to 2A/240V AC and 1A/60V DC. To be installed on front side of the circuit breaker, connection by spring terminals. Sold in lots of 10 units. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Additional Information
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Minimum Switching Current:
5 mA
Color:
dark grey
Rohs Exemption Information:
Yes
Range:
TeSys || TeSys Deca
Device Short Name:
GVAE
Product Or Component Type:
auxiliary contact block
Mercury Free:
Yes
Rated Operational Power In Va:
120 VA 110-120 V AC-15 100000 cycles || 120 VA 230-240 V AC-15 100000 cycles || 48 VA 24-24 V AC-15 100000 cycles || 60 VA 48-48 V AC-15 100000 cycles
Product Compatibility:
GV2L || GV2ME || GV3L || GV2RT || GV2P || GV3P || GV2LE || LS1D323
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
[Ith] Conventional Free Air Thermal Current:
2.5 A
Sustainable Offer Status:
Green Premium product
Net Weight:
0.05 kg
Circularity Profile:
ENVEOLI2207006
[Ue] Rated Operational Voltage:
24...240 V AC || 24...60 V DC
Pole Contact Composition:
1 NO + 1 NC
Eu Rohs Directive:
Compliant
Minimum Switching Voltage:
17 V
[Ui] Rated Insulation Voltage:
300 V UL 508 || 300 V CSA C22.2 No 14 || 250 V IEC 60947-1
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Height:
13 mm
Protection Type:
gG fuse 10 A || GB2CB06 circuit breaker 10 A
Toxic Heavy Metal Free:
Yes
Quantity Per Set:
set of 10
Warranty:
18 months
Mounting Location:
front side
Environmental Disclosure:
ENVPEP2207006
Depth:
31.5 mm
Environmental Characteristic:
normal environment
Product Certifications:
UKCA
Reach Free Of Svhc:
Yes
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Rated Operational Power In W:
15 W 48 V DC-13 100000 cycles || 24 W 24 V DC-13 100000 cycles || 9 W 60 V DC-13 100000 cycles
Width:
44.5 mm
Mechanical Durability:
100000 cycles
