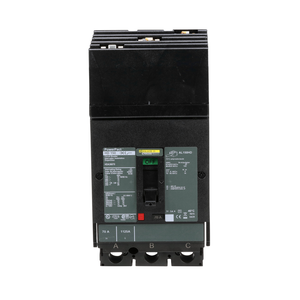

Schneider Electric HDA260701 Molded Case Circuit Breaker 600V 70A

(No reviews yet) Write a Review

Write a Review

Schneider Electric HDA260701 Molded Case Circuit Breaker 600V 70A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

HDA260701

UPC:

785901539957

MPN:

Condition:

New

Sustainable Offer Status:

Green Premium product

Product Name:

PowerPact H

Quality Labels:

CE

Phase Connection:

AB

Net Weight:

2.2 kg

Tightening Torque:

5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)

Warranty:

18 months

Mounting Height:

3 in

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Mounting Support:

bracket

Network Frequency:

50/60 Hz

Ambient Air Temperature For Operation:

-2-70 °C

Mounting Mode:

I-Line bracket)

Wire Stripping Length:

16 mm

[Ui] Rated Insulation Voltage:

750 V IEC 60947-2

Terminal Identifier:

AL150HD

Eu Rohs Directive:

Compliant with Exemptions

[Ics] Rated Service Breaking Capacity:

25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2

Color:

Black

California Proposition 65:

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information

Width:

104 mm

Local Signalling:

switched off (OFF) 1 trip indicator green)

Height:

163 mm

Breaking Capacity Code:

D

Pollution Degree:

3 IEC 60947-1

Range:

PowerPact

Depth:

86 mm

Number Of Slots:

2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)

Ip Degree Of Protection:

front cover IP40 IEC 60529

Magnetic Hold Current:

800 A

Line Rated Current:

70-70 A

Operating Altitude:

< 6561.68 ft (2000 m) without derating || 5000 m with derating

Quantity Per Set:

1

Product Or Component Type:

circuit breaker

Communication Interface:

Modbus || Ethernet

Pvc Free:

Yes

Continuous Current Rating:

0.8

[Ue] Rated Operational Voltage:

690 V AC 50/60 Hz IEC 60947-3

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Poles Description:

2P

Circularity Profile:

ENVEOLI2206027EN

Environmental Disclosure:

ENVPEP2206027EN

Circuit Breaker Application:

HACR rated

Magnetic Tripping Current:

1450-1450 A

Ambient Air Temperature For Storage:

-50-85 °C

[Uimp] Rated Impulse Withstand Voltage:

8 kV IEC 60947-2

Breaking Capacity:

25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC

Rohs Exemption Information:

Yes

Utilisation Category:

category A

Mercury Free:

Yes

Protected Poles Description:

2t

Awg Gauge:

AWG 14...AWG 3/0 aluminium/copper terminal

Suitability For Isolation:

yes IEC 60947-2

Standards:

UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2

Trip Unit Technology:

thermal-magnetic

Control Type:

toggle

Electrical Connection:

I-Line connection, line || lugs, load

Device Application:

distribution

Product Certifications:

UL || CSA || NOM
