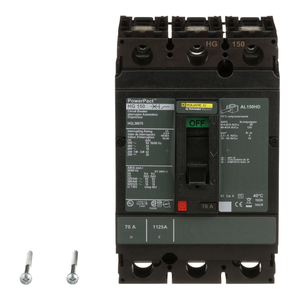

Schneider Electric HDA260704 Molded Case Circuit Breaker 600V 70A

(No reviews yet) Write a Review

Write a Review

Schneider Electric HDA260704 Molded Case Circuit Breaker 600V 70A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

HDA260704

UPC:

785901750338

MPN:

Condition:

New

Device Application:

distribution

Height:

163 mm

Quantity Per Set:

1

Mounting Height:

3 in

Pvc Free:

Yes

Wire Stripping Length:

16 mm

Range:

PowerPact

Ambient Air Temperature For Operation:

-2-70 °C

Network Frequency:

50/60 Hz

[Ics] Rated Service Breaking Capacity:

25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2

Magnetic Hold Current:

800 A

Circuit Breaker Application:

HACR rated

Terminal Identifier:

AL150HD

Magnetic Tripping Current:

1450-1450 A

Control Type:

toggle

Rohs Exemption Information:

Yes

Color:

Black

Pollution Degree:

3 IEC 60947-1

Protected Poles Description:

2t

[Uimp] Rated Impulse Withstand Voltage:

8 kV IEC 60947-2

Ip Degree Of Protection:

front cover IP40 IEC 60529

Awg Gauge:

AWG 14...AWG 3/0 aluminium/copper terminal

Mounting Support:

bracket

[Ui] Rated Insulation Voltage:

750 V IEC 60947-2

Circularity Profile:

ENVEOLI1311006EN

Mounting Mode:

I-Line bracket)

[Ue] Rated Operational Voltage:

690 V AC 50/60 Hz IEC 60947-3

Tightening Torque:

5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)

Ambient Air Temperature For Storage:

-50-85 °C

Mercury Free:

Yes

Operating Altitude:

< 6561.68 ft (2000 m) without derating || 5000 m with derating

Utilisation Category:

category A

Electrical Connection:

I-Line connection, line || lugs, load

Eu Rohs Directive:

Compliant

Line Rated Current:

70-70 A

Trip Unit Technology:

thermal-magnetic

Breaking Capacity Code:

D

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Product Certifications:

UL || CSA || NOM

Depth:

86 mm

Suitability For Isolation:

yes IEC 60947-2

Product Or Component Type:

circuit breaker

Poles Description:

2P

Quality Labels:

CE

Product Name:

PowerPact H

Continuous Current Rating:

0.8

Breaking Capacity:

25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC

Phase Connection:

BC

California Proposition 65:

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information

Number Of Slots:

2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)

Standards:

UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2

Communication Interface:

Modbus || Ethernet

Width:

104 mm

Net Weight:

2.2 kg

Warranty:

18 months

Environmental Disclosure:

ENVPEP1311006EN

Sustainable Offer Status:

Green Premium product

Local Signalling:

switched off (OFF) 1 trip indicator green)
