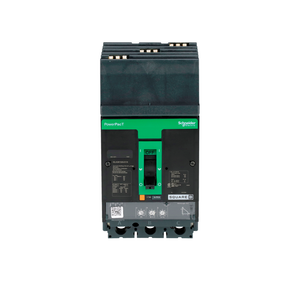

Schneider Electric HDA36150U31X Molded Case Circuit Breaker 600V 150A

Schneider Electric HDA36150U31X Molded Case Circuit Breaker 600V 150A

Schneider Electric
SKU:
HDA36150U31X
|
UPC:
785901324409
Availability:
Contact us to confirm availability and lead times.
$2,911.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides Micrologic Standard with a 3.2 trip unit and an LI function with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 150A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Communication Interface:
Modbus || Ethernet
[Ics] Rated Service Breaking Capacity:
25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Circuit Breaker Application:
HACR rated
Tightening Torque:
5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
Pvc Free:
Yes
Terminal Identifier:
AL150HD
Net Weight:
2.2 kg
Color:
Black
Electrical Connection:
I-Line connection, line || lugs, load
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Phase Connection:
ABC
Wire Stripping Length:
16 mm
Trip Unit Name:
MicroLogic 3.2
Ip Degree Of Protection:
front cover IP40 IEC 60529
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Eu Rohs Directive:
Compliant with Exemptions
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Continuous Current Rating:
0.8
Mounting Height:
4.5 in
Width:
104 mm
Network Frequency:
50/60 Hz
Ambient Air Temperature For Storage:
-50-85 °C
Pollution Degree:
3 IEC 60947-1
Range:
PowerPact
Breaking Capacity Code:
D
Warranty:
18 months
Suitability For Isolation:
yes IEC 60947-2
Product Name:
PowerPact H
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Awg Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Mounting Mode:
I-Line bracket)
Quantity Per Set:
1
Trip Unit Technology:
electronic, standard, MicroLogic 3.2, LI
Environmental Disclosure:
ENVPEP2206028EN
Sustainable Offer Status:
Green Premium product
Circularity Profile:
ENVEOLI2206028EN
Height:
163 mm
Product Certifications:
UL || CSA || NOM
Poles Description:
3P
Utilisation Category:
category A
Mercury Free:
Yes
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-3
Device Application:
distribution
Quality Labels:
CE
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Protected Poles Description:
3t
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Depth:
86 mm
Breaking Capacity:
25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
Product Or Component Type:
circuit breaker
Rohs Exemption Information:
Yes
Control Type:
toggle
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Ambient Air Temperature For Operation:
-2-70 °C
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Mounting Support:
bracket
Line Rated Current:
150-150 A
