Schneider Electric HDF36125 Molded Case Circuit Breaker 600V 125A
Schneider Electric
$2,600.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

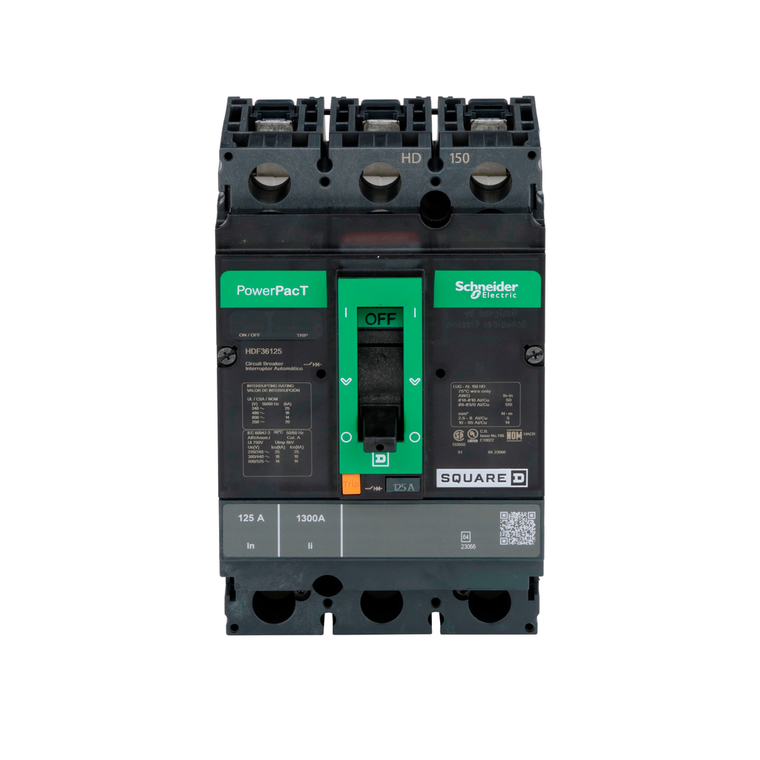

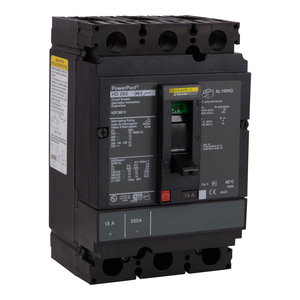

Schneider Electric HDF36125 Molded Case Circuit Breaker 600V 125A
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has a busbar connection. This PowerPacT H, 125A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Width:
- 104 mm
- Wire Stripping Length:
- 16 mm
- Pvc Free:
- Yes
- Circuit Breaker Application:
- HACR rated
- Breaking Capacity:
- 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
- Color:
- Black
- [Ics] Rated Service Breaking Capacity:
- 25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Line Rated Current:
- 125-125 A
- Height:
- 163 mm
- Product Certifications:
- UL || CSA || NOM
- Product Name:
- PowerPact H
- Mounting Support:
- busbar
- Rohs Exemption Information:
- Yes
- Breaking Capacity Code:
- D
- Circularity Profile:
- ENVEOLI2206027EN
- Ambient Air Temperature For Operation:
- -2-70 °C
- Quality Labels:
- CE
- Product Or Component Type:
- circuit breaker
- Protected Poles Description:
- 3t
- Ambient Air Temperature For Storage:
- -50-85 °C
- Utilisation Category:
- category A
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Control Type:
- toggle
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Trip Unit Technology:
- thermal-magnetic
- Continuous Current Rating:
- 0.8
- Range:
- PowerPact
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Sustainable Offer Status:
- Green Premium product
- Magnetic Tripping Current:
- 1700-1700 A
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Terminal Identifier:
- AL150HD
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Mercury Free:
- Yes
- Warranty:
- 18 months
- Depth:
- 86 mm
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Eu Rohs Directive:
- Compliant with Exemptions
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Poles Description:
- 3P
- Magnetic Hold Current:
- 900 A
- Device Application:
- distribution
- Suitability For Isolation:
- yes IEC 60947-2
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Network Frequency:
- 50/60 Hz
- Communication Interface:
- Modbus || Ethernet
- Quantity Per Set:
- 1
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Net Weight:
- 2.2 kg
- Environmental Disclosure:
- ENVPEP2206027EN
- Mounting Mode:
- unit mount busbar)
- Electrical Connection:
- busbar connection, line || busbar connection, load
- Pollution Degree:
- 3 IEC 60947-1
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
