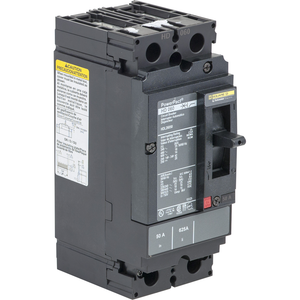

Schneider Electric HDL26040 Molded Case Circuit Breaker 600V 40A
Schneider Electric
$870.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 40A, 2 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Communication Interface:
- Modbus || Ethernet
- Breaking Capacity Code:
- D
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Product Name:
- PowerPact H
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Magnetic Hold Current:
- 400 A
- Range:
- PowerPact
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Sustainable Offer Status:
- Green Premium product
- Ambient Air Temperature For Storage:
- -50-85 °C
- Pollution Degree:
- 3 IEC 60947-1
- Mounting Mode:
- unit mount lug)
- Trip Unit Technology:
- thermal-magnetic
- Eu Rohs Directive:
- Compliant with Exemptions
- Protected Poles Description:
- 2t
- Wire Stripping Length:
- 16 mm
- Mounting Support:
- lug
- Rohs Exemption Information:
- Yes
- Quantity Per Set:
- 1
- Width:
- 104 mm
- Network Frequency:
- 50/60 Hz
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Color:
- Black
- Product Or Component Type:
- circuit breaker
- Terminal Identifier:
- AL150HD
- Continuous Current Rating:
- 0.8
- Depth:
- 86 mm
- Magnetic Tripping Current:
- 850-850 A
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Breaking Capacity:
- 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
- Product Certifications:
- UL || CSA || NOM
- Pvc Free:
- Yes
- Device Application:
- distribution
- Environmental Disclosure:
- ENVPEP2206027EN
- Poles Description:
- 2P
- Mercury Free:
- Yes
- Ambient Air Temperature For Operation:
- -2-70 °C
- Electrical Connection:
- lugs, line || lugs, load
- Utilisation Category:
- category A
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Height:
- 163 mm
- Net Weight:
- 2.2 kg
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Suitability For Isolation:
- yes IEC 60947-2
- Warranty:
- 18 months
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Quality Labels:
- CE
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Control Type:
- toggle
- [Ics] Rated Service Breaking Capacity:
- 25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Line Rated Current:
- 40-40 A
- Circularity Profile:
- ENVEOLI2206027EN
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Circuit Breaker Application:
- HACR rated
