Schneider Electric HDL36045 Molded Case Circuit Breaker 600V 45A
Schneider Electric
$1,088.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

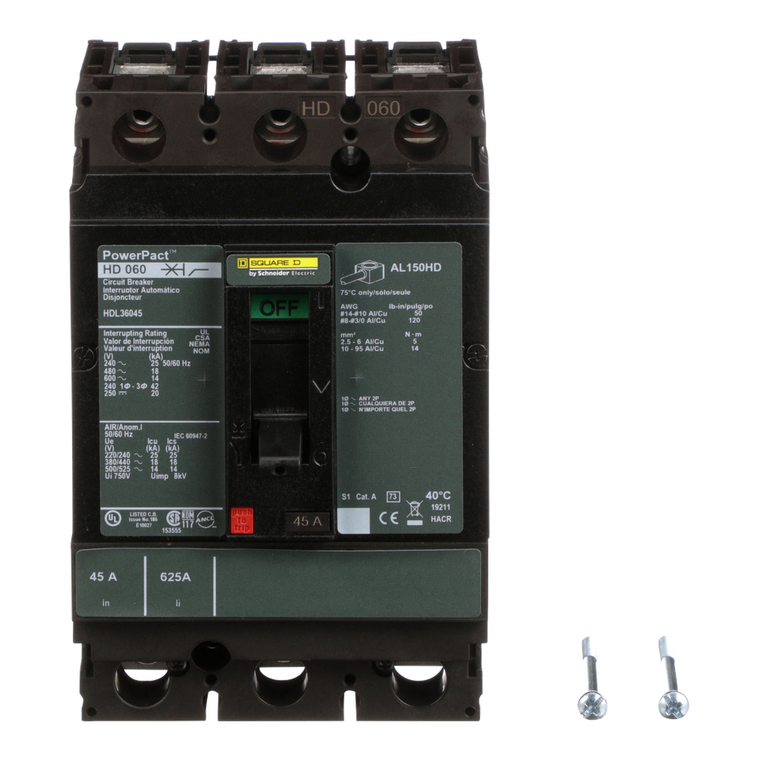

Schneider Electric HDL36045 Molded Case Circuit Breaker 600V 45A
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 45A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Line Rated Current:
- 45-45 A
- Pvc Free:
- Yes
- Product Certifications:
- UL || CSA || NOM
- Network Frequency:
- 50/60 Hz
- Rohs Exemption Information:
- Yes
- Width:
- 104 mm
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Sustainable Offer Status:
- Green Premium product
- Quantity Per Set:
- 1
- Device Application:
- distribution
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Electrical Connection:
- lugs, line || lugs, load
- Quality Labels:
- CE
- Utilisation Category:
- category A
- Color:
- Black
- Mercury Free:
- Yes
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Mounting Support:
- lug
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Trip Unit Technology:
- thermal-magnetic
- Terminal Identifier:
- AL150HD
- Protected Poles Description:
- 3t
- Height:
- 163 mm
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Breaking Capacity:
- 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Circuit Breaker Application:
- HACR rated
- Control Type:
- toggle
- Breaking Capacity Code:
- D
- Depth:
- 86 mm
- [Ics] Rated Service Breaking Capacity:
- 25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Suitability For Isolation:
- yes IEC 60947-2
- Warranty:
- 18 months
- Communication Interface:
- Modbus || Ethernet
- Product Name:
- PowerPact H
- Environmental Disclosure:
- ENVPEP2206027EN
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Eu Rohs Directive:
- Compliant with Exemptions
- Product Or Component Type:
- circuit breaker
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Circularity Profile:
- ENVEOLI2206027EN
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Pollution Degree:
- 3 IEC 60947-1
- Ambient Air Temperature For Storage:
- -50-85 °C
- Continuous Current Rating:
- 0.8
- Ambient Air Temperature For Operation:
- -2-70 °C
- Magnetic Hold Current:
- 400 A
- Wire Stripping Length:
- 16 mm
- Poles Description:
- 3P
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Net Weight:
- 2.2 kg
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Mounting Mode:
- unit mount lug)
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Magnetic Tripping Current:
- 850-850 A
- Range:
- PowerPact
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
