Schneider Electric HDL36060CU33X Molded Case Circuit Breaker 600V 60A
Schneider Electric
$1,641.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

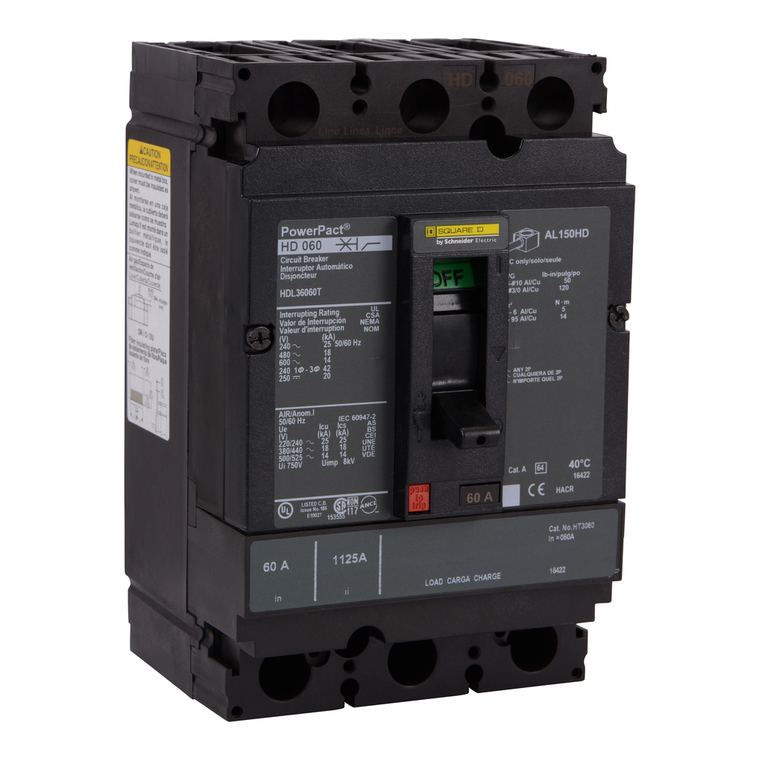

Schneider Electric HDL36060CU33X Molded Case Circuit Breaker 600V 60A
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides Micrologic Standard with a 3.2S trip unit and an LSI function with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 60A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 100%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Continuous Current Rating:
- 1
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Color:
- Black
- Trip Unit Technology:
- electronic, standard, MicroLogic 3.2 S, LSI
- Product Name:
- PowerPact H
- Network Frequency:
- 50/60 Hz
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Net Weight:
- 2.2 kg
- Wire Stripping Length:
- 16 mm
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Electrical Connection:
- lugs, line || lugs, load
- Product Certifications:
- UL || CSA || NOM
- Communication Interface:
- Modbus || Ethernet
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Breaking Capacity Code:
- D
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Pvc Free:
- Yes
- Device Application:
- distribution
- Range:
- PowerPact
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Ambient Air Temperature For Storage:
- -50-85 °C
- Ambient Air Temperature For Operation:
- -2-70 °C
- Mercury Free:
- Yes
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- [Ics] Rated Service Breaking Capacity:
- 25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Breaking Capacity:
- 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
- Terminal Identifier:
- AL150HD
- Warranty:
- 18 months
- Quality Labels:
- CE
- Width:
- 104 mm
- Pollution Degree:
- 3 IEC 60947-1
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Local Signalling:
- ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
- Height:
- 163 mm
- Mounting Mode:
- unit mount lug)
- Eu Rohs Directive:
- Compliant with Exemptions
- Poles Description:
- 3P
- Protected Poles Description:
- 3t
- Mounting Support:
- lug
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Depth:
- 86 mm
- Product Or Component Type:
- circuit breaker
- Rohs Exemption Information:
- Yes
- Line Rated Current:
- 60-60 A
- Quantity Per Set:
- 1
- Utilisation Category:
- category A
- Environmental Disclosure:
- ENVPEP2206028EN
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Control Type:
- toggle
- Trip Unit Name:
- MicroLogic 3.2 S
- Circuit Breaker Application:
- HACR rated
- Circularity Profile:
- ENVEOLI2206028EN
- Suitability For Isolation:
- yes IEC 60947-2
- Sustainable Offer Status:
- Green Premium product
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
