Schneider Electric HDL36070C Molded Case Circuit Breaker 600V 70A
Schneider Electric
$1,593.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

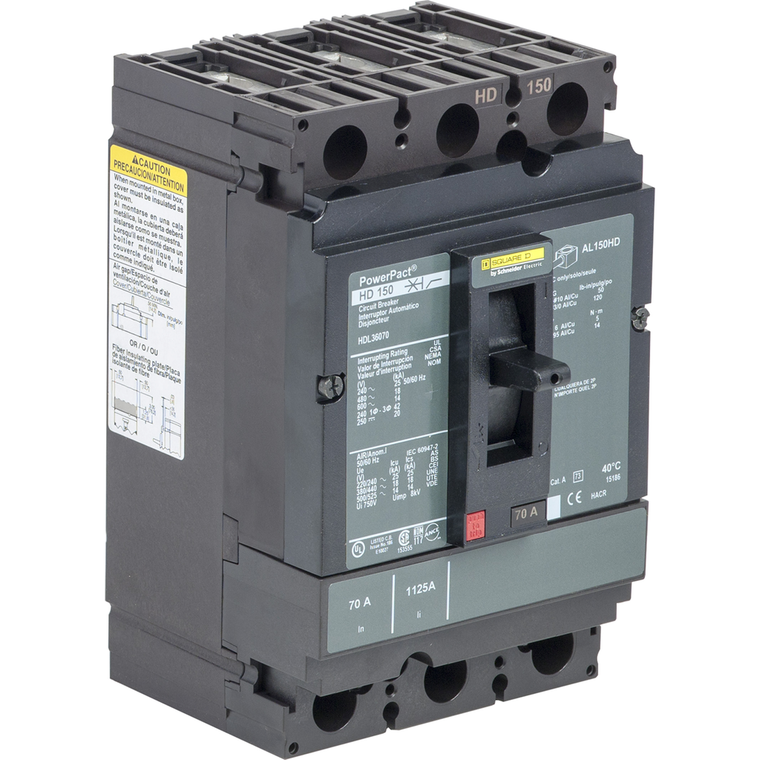

Schneider Electric HDL36070C Molded Case Circuit Breaker 600V 70A
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 70A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 100%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Circuit Breaker Application:
- HACR rated
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Net Weight:
- 2.2 kg
- Mounting Mode:
- unit mount lug)
- Environmental Disclosure:
- ENVPEP2206027EN
- Poles Description:
- 3P
- Color:
- Black
- Pollution Degree:
- 3 IEC 60947-1
- Circularity Profile:
- ENVEOLI2206027EN
- Utilisation Category:
- category A
- Rohs Exemption Information:
- Yes
- Height:
- 163 mm
- Ambient Air Temperature For Operation:
- -2-70 °C
- Mounting Support:
- lug
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Quantity Per Set:
- 1
- Wire Stripping Length:
- 16 mm
- Network Frequency:
- 50/60 Hz
- Quality Labels:
- CE
- Suitability For Isolation:
- yes IEC 60947-2
- Breaking Capacity Code:
- D
- Protected Poles Description:
- 3t
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Width:
- 104 mm
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Breaking Capacity:
- 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
- Mercury Free:
- Yes
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Product Certifications:
- UL || CSA || NOM
- Range:
- PowerPact
- Product Or Component Type:
- circuit breaker
- Device Application:
- distribution
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Magnetic Tripping Current:
- 1450-1450 A
- Depth:
- 86 mm
- Product Name:
- PowerPact H
- [Ics] Rated Service Breaking Capacity:
- 25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Pvc Free:
- Yes
- Magnetic Hold Current:
- 800 A
- Ambient Air Temperature For Storage:
- -50-85 °C
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Terminal Identifier:
- AL150HD
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Control Type:
- toggle
- Line Rated Current:
- 70-70 A
- Sustainable Offer Status:
- Green Premium product
- Communication Interface:
- Modbus || Ethernet
- Continuous Current Rating:
- 1
- Electrical Connection:
- lugs, line || lugs, load
- Warranty:
- 18 months
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Trip Unit Technology:
- thermal-magnetic
- Eu Rohs Directive:
- Compliant with Exemptions
