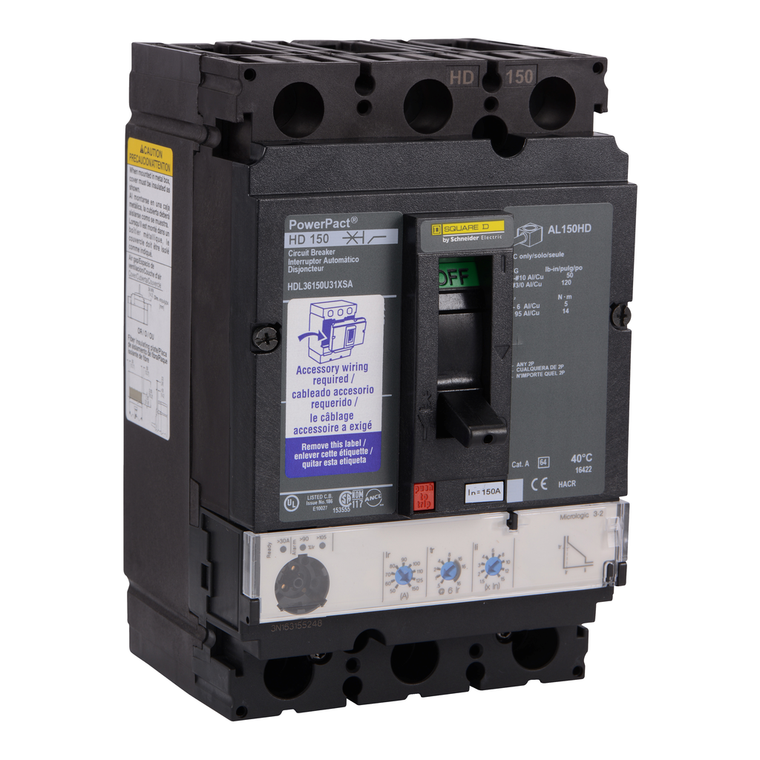

Schneider Electric HDL36150U31XSA Molded Case Circuit Breaker 600V 150A

Schneider Electric HDL36150U31XSA Molded Case Circuit Breaker 600V 150A

Schneider Electric
SKU:
HDL36150U31XSA
|
UPC:
7.85901E+11
Availability:
Contact us to confirm availability and lead times.
$3,476.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides Micrologic Standard with a 3.2 trip unit and an LI function with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 150A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80%. This unit includes a factory installed 120VAC shunt trip. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Poles Description:
3P
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Ambient Air Temperature For Storage:
-50-85 °C
Protected Poles Description:
3t
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Net Weight:
2.2 kg
Pollution Degree:
3 IEC 60947-1
Range:
PowerPact
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Mercury Free:
Yes
Depth:
86 mm
Height:
163 mm
Width:
104 mm
Eu Rohs Directive:
Compliant with Exemptions
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Breaking Capacity:
25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Rohs Exemption Information:
Yes
Circuit Breaker Application:
HACR rated
Quality Labels:
CE
Tightening Torque:
5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
Quantity Per Set:
1
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Utilisation Category:
category A
Product Or Component Type:
circuit breaker
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Suitability For Isolation:
yes IEC 60947-2
Electrical Connection:
lugs, line || lugs, load
Ip Degree Of Protection:
front cover IP40 IEC 60529
Breaking Capacity Code:
D
[Ics] Rated Service Breaking Capacity:
25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-3
Control Type:
toggle
Awg Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Product Name:
PowerPact H
Pvc Free:
Yes
Terminal Identifier:
AL150HD
Circularity Profile:
ENVEOLI2206028EN
Wire Stripping Length:
16 mm
Color:
Black
Continuous Current Rating:
0.8
Ambient Air Temperature For Operation:
-2-70 °C
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Sustainable Offer Status:
Green Premium product
Warranty:
18 months
Line Rated Current:
150-150 A
Communication Interface:
Modbus || Ethernet
Accessory / Separate Part Type:
shunt trip 110...130 V AC compartment
Trip Unit Name:
MicroLogic 3.2
Network Frequency:
50/60 Hz
Device Application:
distribution
Mounting Support:
lug
Product Certifications:
UL || CSA || NOM
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Trip Unit Technology:
electronic, standard, MicroLogic 3.2, LI
Environmental Disclosure:
ENVPEP2206028EN
Mounting Mode:
unit mount lug)
