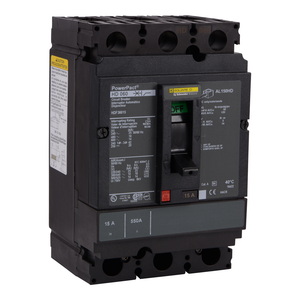

Schneider Electric HDM36070 Molded Case Circuit Breaker 600V 70A

Schneider Electric HDM36070 Molded Case Circuit Breaker 600V 70A

Schneider Electric
SKU:
HDM36070
|
UPC:
3.60649E+12
Availability:
Contact us to confirm availability and lead times.
$1,328.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on the line and terminal nuts on the load side. This PowerPacT H, 70A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Local Signalling:
switched off (OFF) 1 trip indicator green)
[Ics] Rated Service Breaking Capacity:
25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Control Type:
toggle
Poles Description:
3P
Product Or Component Type:
circuit breaker
Magnetic Hold Current:
800 A
Ambient Air Temperature For Storage:
-50-85 °C
Electrical Connection:
lugs, line || terminal nut, load
Protected Poles Description:
3t
Network Frequency:
50/60 Hz
Quality Labels:
CE
Magnetic Tripping Current:
1450-1450 A
Sustainable Offer Status:
Green Premium product
Width:
104 mm
Product Name:
PowerPact H
Breaking Capacity Code:
D
Awg Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Suitability For Isolation:
yes IEC 60947-2
Color:
Black
Tightening Torque:
5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Breaking Capacity:
25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
Depth:
86 mm
Ambient Air Temperature For Operation:
-2-70 °C
Circuit Breaker Application:
HACR rated
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Environmental Disclosure:
ENVPEP1311006EN
Line Rated Current:
70-70 A
Terminal Identifier:
AL150HD
Pvc Free:
Yes
Ip Degree Of Protection:
front cover IP40 IEC 60529
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Communication Interface:
Modbus || Ethernet
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-3
Height:
163 mm
Eu Rohs Directive:
Compliant
Quantity Per Set:
1
Mounting Mode:
unit mount lug)
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Net Weight:
2.2 kg
Device Application:
distribution
Circularity Profile:
ENVEOLI1311006EN
Continuous Current Rating:
0.8
Trip Unit Technology:
thermal-magnetic
Utilisation Category:
category A
Mercury Free:
Yes
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Range:
PowerPact
Mounting Support:
lug
Wire Stripping Length:
16 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Warranty:
18 months
Pollution Degree:
3 IEC 60947-1
Product Certifications:
UL || CSA || NOM
Rohs Exemption Information:
Yes
