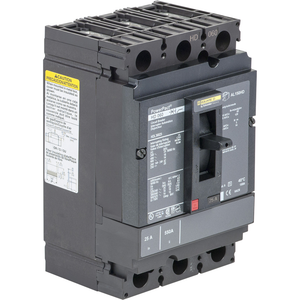

Schneider Electric HGA36035 Molded Case Circuit Breaker 600V 35A

Schneider Electric HGA36035 Molded Case Circuit Breaker 600V 35A

Schneider Electric
SKU:
HGA36035
|
UPC:
785901422303
Availability:
Contact us to confirm availability and lead times.
$1,575.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 35A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-3
Product Or Component Type:
circuit breaker
Product Name:
PowerPact H
Pvc Free:
Yes
Circularity Profile:
ENVEOLI2206027EN
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Width:
104 mm
Mounting Support:
bracket
Poles Description:
3P
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Control Type:
toggle
Trip Unit Technology:
thermal-magnetic
Warranty:
18 months
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Wire Stripping Length:
16 mm
Magnetic Tripping Current:
850-850 A
Mercury Free:
Yes
Network Frequency:
50/60 Hz
Electrical Connection:
I-Line connection, line || lugs, load
Local Signalling:
switched off (OFF) 1 trip indicator green)
Product Certifications:
UL || CSA || NOM
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Height:
163 mm
Ip Degree Of Protection:
front cover IP40 IEC 60529
Communication Interface:
Modbus || Ethernet
Phase Connection:
ABC
Terminal Identifier:
AL150HD
Line Rated Current:
35-35 A
Suitability For Isolation:
yes IEC 60947-2
Quality Labels:
CE
Breaking Capacity:
65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
Awg Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Utilisation Category:
category A
Mounting Height:
4.5 in
Net Weight:
2.2 kg
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Rohs Exemption Information:
Yes
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Circuit Breaker Application:
HACR rated
Environmental Disclosure:
ENVPEP2206027EN
Pollution Degree:
3 IEC 60947-1
Ambient Air Temperature For Storage:
-50-85 °C
Color:
Black
Magnetic Hold Current:
400 A
Protected Poles Description:
3t
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Range:
PowerPact
Continuous Current Rating:
0.8
Device Application:
distribution
Depth:
86 mm
Sustainable Offer Status:
Green Premium product
Quantity Per Set:
1
Tightening Torque:
5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
Mounting Mode:
I-Line bracket)
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Eu Rohs Directive:
Compliant with Exemptions
Breaking Capacity Code:
G
Ambient Air Temperature For Operation:
-2-70 °C
