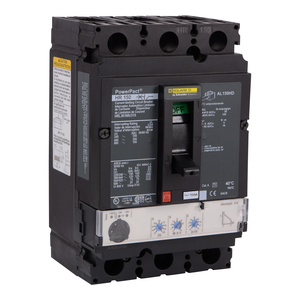

Schneider Electric HGA36100U33X Molded Case Circuit Breaker 600V 100A

Schneider Electric HGA36100U33X Molded Case Circuit Breaker 600V 100A

Schneider Electric
SKU:
HGA36100U33X
|
UPC:
785901947677
Availability:
Contact us to confirm availability and lead times.
$2,159.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides Micrologic Standard with a 3.2S trip unit and an LSI function with a breaking capacity of 18kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 100A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Depth:
86 mm
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Width:
104 mm
Product Certifications:
UL || CSA || NOM
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Suitability For Isolation:
yes IEC 60947-2
Continuous Current Rating:
0.8
Utilisation Category:
category A
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Tightening Torque:
5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
Quality Labels:
CE
Mounting Height:
4.5 in
Product Name:
PowerPact H
Control Type:
toggle
Awg Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Pollution Degree:
3 IEC 60947-1
Ambient Air Temperature For Storage:
-50-85 °C
Communication Interface:
Modbus || Ethernet
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Poles Description:
3P
Warranty:
18 months
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Circuit Breaker Application:
HACR rated
Pvc Free:
Yes
Mercury Free:
Yes
Trip Unit Name:
MicroLogic 3.2 S
Height:
163 mm
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Ip Degree Of Protection:
front cover IP40 IEC 60529
Sustainable Offer Status:
Green Premium product
Protected Poles Description:
3t
Net Weight:
2.2 kg
Device Application:
distribution
Wire Stripping Length:
16 mm
Range:
PowerPact
Trip Unit Technology:
electronic, standard, MicroLogic 3.2 S, LSI
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Quantity Per Set:
1
Breaking Capacity Code:
G
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-3
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Rohs Exemption Information:
Yes
Line Rated Current:
100-100 A
Eu Rohs Directive:
Compliant with Exemptions
Environmental Disclosure:
ENVPEP2206028EN
Circularity Profile:
ENVEOLI2206028EN
Electrical Connection:
I-Line connection, line || lugs, load
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Terminal Identifier:
AL150HD
Product Or Component Type:
circuit breaker
Color:
Black
Breaking Capacity:
65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
Network Frequency:
50/60 Hz
Phase Connection:
ABC
Mounting Support:
bracket
Ambient Air Temperature For Operation:
-2-70 °C
Mounting Mode:
I-Line bracket)
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Brochure:
View
