Schneider Electric HGL26080 Molded Case Circuit Breaker 600V 80A
Schneider Electric
$1,497.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric HGL26080 Molded Case Circuit Breaker 600V 80A

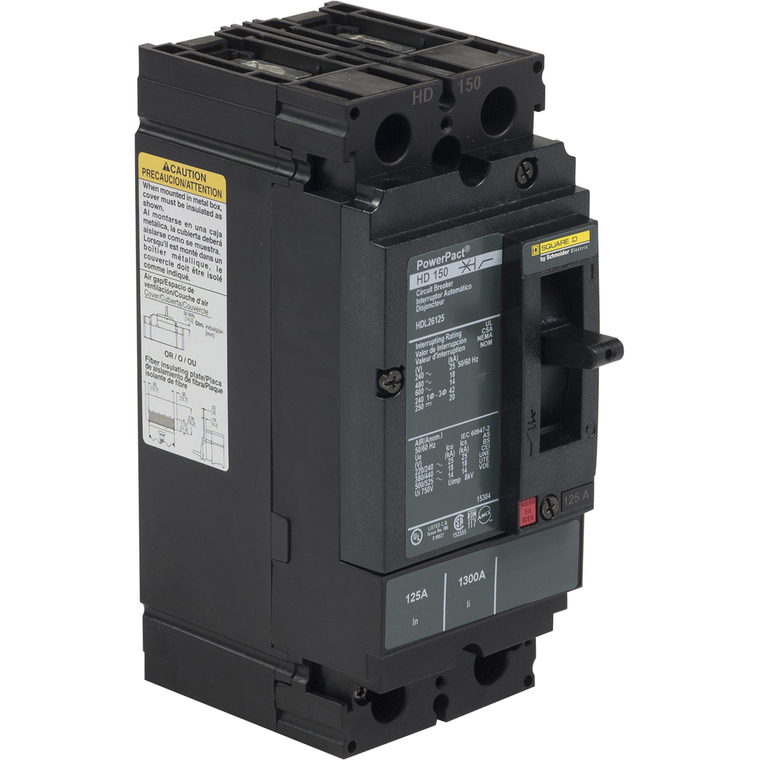

PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 80A, 2 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Breaking Capacity Code:
- G
- Mounting Support:
- lug
- Magnetic Tripping Current:
- 1450-1450 A
- Terminal Identifier:
- AL150HD
- Breaking Capacity:
- 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
- Circularity Profile:
- ENVEOLI2206027EN
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Eu Rohs Directive:
- Compliant with Exemptions
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Mounting Mode:
- unit mount lug)
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Height:
- 163 mm
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Network Frequency:
- 50/60 Hz
- Range:
- PowerPact
- Product Certifications:
- UL || CSA || NOM
- Quantity Per Set:
- 1
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Product Name:
- PowerPact H
- Warranty:
- 18 months
- Circuit Breaker Application:
- HACR rated
- Line Rated Current:
- 80-80 A
- Magnetic Hold Current:
- 800 A
- Net Weight:
- 2.2 kg
- Trip Unit Technology:
- thermal-magnetic
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Poles Description:
- 2P
- Width:
- 104 mm
- Continuous Current Rating:
- 0.8
- Utilisation Category:
- category A
- Device Application:
- distribution
- Environmental Disclosure:
- ENVPEP2206027EN
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Protected Poles Description:
- 2t
- Pollution Degree:
- 3 IEC 60947-1
- Color:
- Black
- Quality Labels:
- CE
- Communication Interface:
- Modbus || Ethernet
- Sustainable Offer Status:
- Green Premium product
- Depth:
- 86 mm
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Rohs Exemption Information:
- Yes
- Ambient Air Temperature For Operation:
- -2-70 °C
- Product Or Component Type:
- circuit breaker
- Suitability For Isolation:
- yes IEC 60947-2
- Control Type:
- toggle
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Mercury Free:
- Yes
- Wire Stripping Length:
- 16 mm
- Electrical Connection:
- lugs, line || lugs, load
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Pvc Free:
- Yes
- Ambient Air Temperature For Storage:
- -50-85 °C
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
