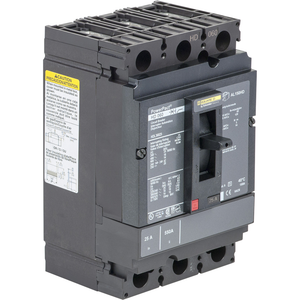

Schneider Electric HGL36015 Molded Case Circuit Breaker 600V 15A
Schneider Electric
$1,493.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 15A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Wire Stripping Length:
- 16 mm
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Magnetic Tripping Current:
- 750-750 A
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Device Application:
- distribution
- Terminal Identifier:
- AL150HD
- Communication Interface:
- Modbus || Ethernet
- Rohs Exemption Information:
- Yes
- Ambient Air Temperature For Operation:
- -2-70 °C
- Breaking Capacity Code:
- G
- Line Rated Current:
- 15-15 A
- Protected Poles Description:
- 3t
- Mounting Support:
- lug
- Sustainable Offer Status:
- Green Premium product
- Suitability For Isolation:
- yes IEC 60947-2
- Electrical Connection:
- lugs, line || lugs, load
- Net Weight:
- 2.2 kg
- Utilisation Category:
- category A
- Pvc Free:
- Yes
- Circuit Breaker Application:
- HACR rated
- Quantity Per Set:
- 1
- Trip Unit Technology:
- thermal-magnetic
- Control Type:
- toggle
- Warranty:
- 18 months
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Color:
- Black
- Network Frequency:
- 50/60 Hz
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Height:
- 163 mm
- Eu Rohs Directive:
- Compliant with Exemptions
- Product Or Component Type:
- circuit breaker
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Circularity Profile:
- ENVEOLI2206027EN
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Depth:
- 86 mm
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Product Certifications:
- UL || CSA || NOM
- Pollution Degree:
- 3 IEC 60947-1
- Magnetic Hold Current:
- 350 A
- Ambient Air Temperature For Storage:
- -50-85 °C
- Width:
- 104 mm
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Environmental Disclosure:
- ENVPEP2206027EN
- Continuous Current Rating:
- 0.8
- Product Name:
- PowerPact H
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Mercury Free:
- Yes
- Range:
- PowerPact
- Poles Description:
- 3P
- Breaking Capacity:
- 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
- Mounting Mode:
- unit mount lug)
- Quality Labels:
- CE
