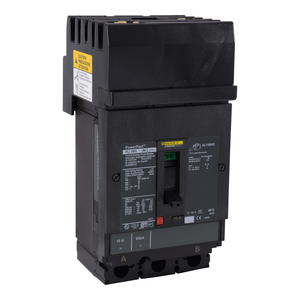

Schneider Electric HGL36015C Molded Case Circuit Breaker 600V 15A

Schneider Electric HGL36015C Molded Case Circuit Breaker 600V 15A

Schneider Electric
SKU:
HGL36015C
|
UPC:
7.85902E+11
Availability:
Contact us to confirm availability and lead times.
$1,791.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 15A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 100%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Sustainable Offer Status:
Green Premium product
Electrical Connection:
lugs, line || lugs, load
Ambient Air Temperature For Operation:
-2-70 °C
Magnetic Hold Current:
350 A
Awg Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Breaking Capacity Code:
G
Communication Interface:
Modbus || Ethernet
Magnetic Tripping Current:
750-750 A
Tightening Torque:
5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Warranty:
18 months
Ambient Air Temperature For Storage:
-50-85 °C
Product Certifications:
UL || CSA || NOM
Width:
104 mm
Control Type:
toggle
Mercury Free:
Yes
Line Rated Current:
15-15 A
Environmental Disclosure:
ENVPEP2206027EN
Quantity Per Set:
1
Pollution Degree:
3 IEC 60947-1
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Terminal Identifier:
AL150HD
Quality Labels:
CE
Ip Degree Of Protection:
front cover IP40 IEC 60529
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Color:
Black
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Product Or Component Type:
circuit breaker
Breaking Capacity:
65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
Product Name:
PowerPact H
Circularity Profile:
ENVEOLI2206027EN
Depth:
86 mm
Mounting Mode:
unit mount lug)
Rohs Exemption Information:
Yes
Poles Description:
3P
Utilisation Category:
category A
Net Weight:
2.2 kg
Continuous Current Rating:
1
Suitability For Isolation:
yes IEC 60947-2
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Device Application:
distribution
Mounting Support:
lug
Trip Unit Technology:
thermal-magnetic
Pvc Free:
Yes
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Wire Stripping Length:
16 mm
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-3
Protected Poles Description:
3t
Eu Rohs Directive:
Compliant with Exemptions
Range:
PowerPact
Circuit Breaker Application:
HACR rated
Local Signalling:
switched off (OFF) 1 trip indicator green)
Height:
163 mm
Network Frequency:
50/60 Hz
