Schneider Electric HGL36100U33X Molded Case Circuit Breaker 600V 100A
Schneider Electric
$2,046.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

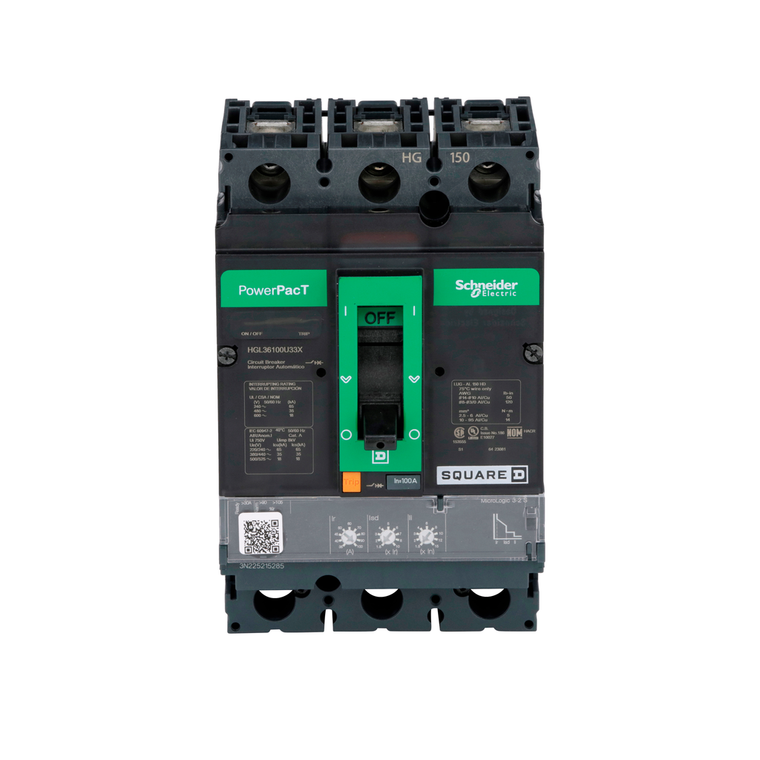

Schneider Electric HGL36100U33X Molded Case Circuit Breaker 600V 100A
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides Micrologic Standard with a 3.2S trip unit and an LSI function with a breaking capacity of 18kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 100A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Poles Description:
- 3P
- Environmental Disclosure:
- ENVPEP2206028EN
- Height:
- 163 mm
- Pollution Degree:
- 3 IEC 60947-1
- Mounting Support:
- lug
- Electrical Connection:
- lugs, line || lugs, load
- Protected Poles Description:
- 3t
- Eu Rohs Directive:
- Compliant with Exemptions
- Circuit Breaker Application:
- HACR rated
- Circularity Profile:
- ENVEOLI2206028EN
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Control Type:
- toggle
- Line Rated Current:
- 100-100 A
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Ambient Air Temperature For Storage:
- -50-85 °C
- Rohs Exemption Information:
- Yes
- Network Frequency:
- 50/60 Hz
- Mercury Free:
- Yes
- Utilisation Category:
- category A
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Communication Interface:
- Modbus || Ethernet
- Trip Unit Technology:
- electronic, standard, MicroLogic 3.2 S, LSI
- Net Weight:
- 2.2 kg
- Sustainable Offer Status:
- Green Premium product
- Terminal Identifier:
- AL150HD
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Local Signalling:
- ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
- Continuous Current Rating:
- 0.8
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Suitability For Isolation:
- yes IEC 60947-2
- Mounting Mode:
- unit mount lug)
- Product Certifications:
- UL || CSA || NOM
- Color:
- Black
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Product Or Component Type:
- circuit breaker
- Ambient Air Temperature For Operation:
- -2-70 °C
- Wire Stripping Length:
- 16 mm
- Breaking Capacity Code:
- G
- Trip Unit Name:
- MicroLogic 3.2 S
- Pvc Free:
- Yes
- Product Name:
- PowerPact H
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Width:
- 104 mm
- Warranty:
- 18 months
- Range:
- PowerPact
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Quality Labels:
- CE
- Breaking Capacity:
- 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
- Depth:
- 86 mm
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Device Application:
- distribution
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Quantity Per Set:
- 1
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
