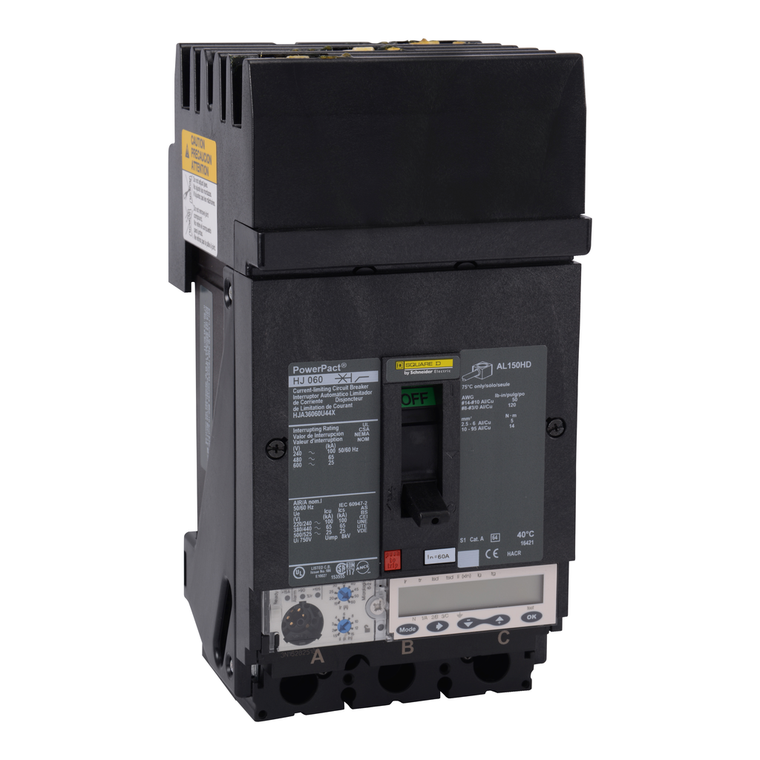

Schneider Electric HJA36060U44X Molded Case Circuit Breaker 600V 60A

Schneider Electric HJA36060U44X Molded Case Circuit Breaker 600V 60A

Schneider Electric
SKU:
HJA36060U44X
|
UPC:
785901655657
Availability:
Contact us to confirm availability and lead times.
$3,811.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides Micrologic Ammeter with a 6.2A trip unit and an LSIG function with a breaking capacity of 25kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 60A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Eu Rohs Directive:
Compliant with Exemptions
Warranty:
18 months
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Pollution Degree:
3 IEC 60947-1
Net Weight:
2.2 kg
Network Frequency:
50/60 Hz
Control Type:
toggle
Ambient Air Temperature For Storage:
-50-85 °C
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Device Application:
distribution
Wire Stripping Length:
16 mm
Ip Degree Of Protection:
front cover IP40 IEC 60529
Phase Connection:
ABC
Protected Poles Description:
3t
Height:
163 mm
Tightening Torque:
5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
Trip Unit Name:
MicroLogic 6.2 A
Product Name:
PowerPact H
Mounting Support:
bracket
Trip Unit Technology:
electronic, ammeter, MicroLogic 6.2 A, LSIG
Range:
PowerPact
Suitability For Isolation:
yes IEC 60947-2
Rohs Exemption Information:
Yes
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Utilisation Category:
category A
Electrical Connection:
I-Line connection, line || lugs, load
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-3
Awg Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Mounting Height:
4.5 in
Communication Interface:
Modbus || Ethernet
Circuit Breaker Application:
HACR rated
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Circularity Profile:
ENVEOLI2206028EN
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Width:
104 mm
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Mounting Mode:
I-Line bracket)
Breaking Capacity:
100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
Mercury Free:
Yes
Line Rated Current:
60-60 A
Depth:
86 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Pvc Free:
Yes
Breaking Capacity Code:
J
Environmental Disclosure:
ENVPEP2206028EN
Terminal Identifier:
AL150HD
[Ics] Rated Service Breaking Capacity:
100 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 65 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 25 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Continuous Current Rating:
0.8
Poles Description:
3P
Quality Labels:
CE
Sustainable Offer Status:
Green Premium product
Color:
Black
Ambient Air Temperature For Operation:
-2-70 °C
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Product Or Component Type:
circuit breaker
Quantity Per Set:
1
Product Certifications:
UL || CSA || NOM
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
