Schneider Electric HJA36090YP Molded Case Circuit Breaker 600V 90A

Schneider Electric HJA36090YP Molded Case Circuit Breaker 600V 90A

Schneider Electric
SKU:
HJA36090YP
|
UPC:
3606486282694
Availability:
Contact us to confirm availability and lead times.
$5,179.50
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

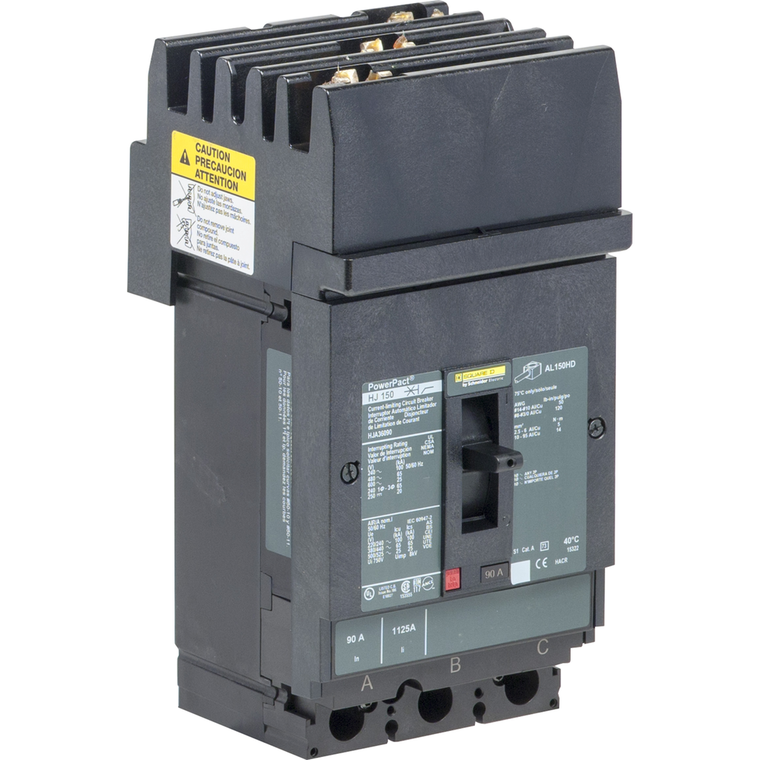

PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 90A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. This unit includes a factory installed padlock handle. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Protected Poles Description:
3t
Suitability For Isolation:
yes IEC 60947-2
Pvc Free:
Yes
Height:
163 mm
Circuit Breaker Application:
HACR rated
Breaking Capacity:
100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-3
Product Name:
PowerPact H
Warranty:
18 months
Mounting Height:
4.5 in
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Continuous Current Rating:
0.8
Range:
PowerPact
Accessory / Separate Part Type:
padlocking device
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Local Signalling:
switched off (OFF) 1 trip indicator green)
Trip Unit Technology:
thermal-magnetic
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Pollution Degree:
3 IEC 60947-1
Utilisation Category:
category A
Color:
Black
Terminal Identifier:
AL150HD
Line Rated Current:
90-90 A
Product Certifications:
UL || CSA || NOM
Environmental Disclosure:
ENVPEP1311006EN
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Network Frequency:
50/60 Hz
Ambient Air Temperature For Operation:
-2-70 °C
Ip Degree Of Protection:
front cover IP40 IEC 60529
Poles Description:
3P
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Eu Rohs Directive:
Compliant
Net Weight:
2.2 kg
Communication Interface:
Modbus || Ethernet
Product Or Component Type:
circuit breaker
Magnetic Hold Current:
800 A
Ambient Air Temperature For Storage:
-50-85 °C
Mounting Mode:
I-Line bracket)
Control Type:
toggle
Rohs Exemption Information:
Yes
Magnetic Tripping Current:
1450-1450 A
Electrical Connection:
I-Line connection, line || lugs, load
Tightening Torque:
5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
Mercury Free:
Yes
Sustainable Offer Status:
Green Premium product
Quantity Per Set:
1
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Depth:
86 mm
Width:
104 mm
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Mounting Support:
bracket
Phase Connection:
ABC
Breaking Capacity Code:
J
[Ics] Rated Service Breaking Capacity:
100 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 65 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 25 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Circularity Profile:
ENVEOLI1311006EN
Quality Labels:
CE
Device Application:
distribution
Awg Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Wire Stripping Length:
16 mm
