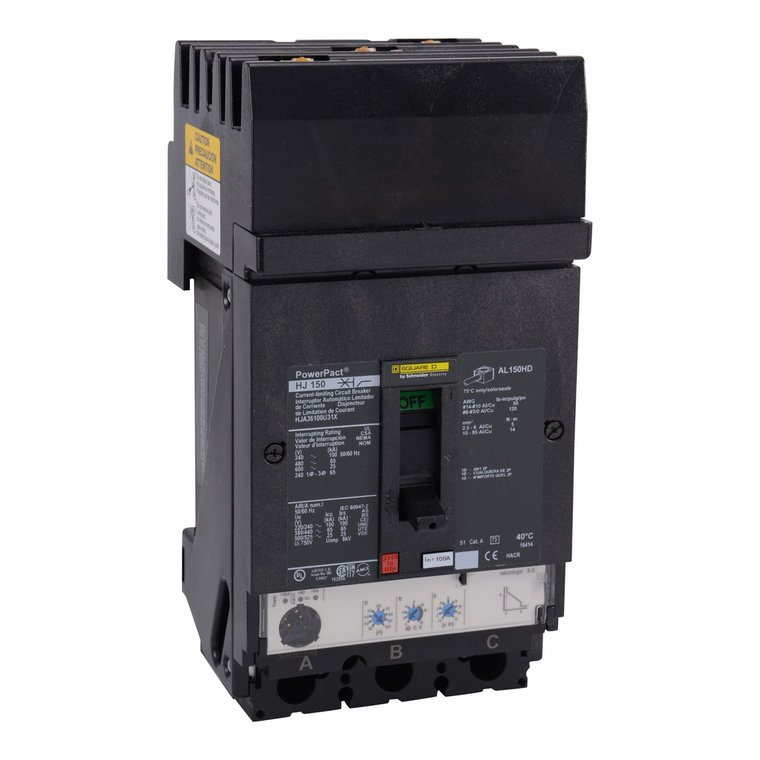

Schneider Electric HJA36100U31X Molded Case Circuit Breaker 600V 100A

(No reviews yet) Write a Review

Write a Review

Schneider Electric HJA36100U31X Molded Case Circuit Breaker 600V 100A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

HJA36100U31X

UPC:

785901508786

MPN:

Condition:

New

Mounting Height:

4.5 in

[Uimp] Rated Impulse Withstand Voltage:

8 kV IEC 60947-2

Network Frequency:

50/60 Hz

California Proposition 65:

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information

Warranty:

18 months

Control Type:

toggle

Poles Description:

3P

Breaking Capacity:

100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489

Mercury Free:

Yes

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Circuit Breaker Application:

HACR rated

Width:

104 mm

Communication Interface:

Modbus || Ethernet

Rohs Exemption Information:

Yes

Color:

Black

[Ui] Rated Insulation Voltage:

750 V IEC 60947-2

Protected Poles Description:

3t

Standards:

UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2

Ambient Air Temperature For Operation:

-2-70 °C

Awg Gauge:

AWG 14...AWG 3/0 aluminium/copper terminal

Net Weight:

2.2 kg

Trip Unit Technology:

electronic, standard, MicroLogic 3.2, LI

Height:

163 mm

Continuous Current Rating:

0.8

Tightening Torque:

5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)

Line Rated Current:

100-100 A

Terminal Identifier:

AL150HD

Long Time Pick-Up Adjustment Range:

0.25...1 x In

Breaking Capacity Code:

J

Number Of Slots:

2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)

Pollution Degree:

3 IEC 60947-1

Electrical Connection:

I-Line connection, line || lugs, load

Pvc Free:

Yes

Operating Altitude:

< 6561.68 ft (2000 m) without derating || 5000 m with derating

Trip Unit Name:

MicroLogic 3.2

Device Application:

distribution

Phase Connection:

ABC

Utilisation Category:

category A

Range:

PowerPact

Local Signalling:

ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)

Eu Rohs Directive:

Compliant with Exemptions

Mounting Mode:

I-Line bracket)

Wire Stripping Length:

16 mm

Product Certifications:

UL || CSA || NOM

Product Name:

PowerPact H

Quality Labels:

CE

[Ics] Rated Service Breaking Capacity:

100 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 65 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 25 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2

Mounting Support:

bracket

[Ue] Rated Operational Voltage:

690 V AC 50/60 Hz IEC 60947-3

Sustainable Offer Status:

Green Premium product

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Circularity Profile:

ENVEOLI2206028EN

Ambient Air Temperature For Storage:

-50-85 °C

Ip Degree Of Protection:

front cover IP40 IEC 60529

Depth:

86 mm

Quantity Per Set:

1

Suitability For Isolation:

yes IEC 60947-2

Product Or Component Type:

circuit breaker

Environmental Disclosure:

ENVPEP2206028EN
