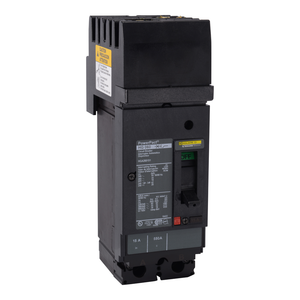

Schneider Electric HJL36050T Molded Case Circuit Breaker 600V 50A
Schneider Electric
$1,949.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 50A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80%. This unit allows field-interchangeable trip units. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Color:
- Black
- Sustainable Offer Status:
- Green Premium product
- Wire Stripping Length:
- 16 mm
- Suitability For Isolation:
- yes IEC 60947-2
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Terminal Identifier:
- AL150HD
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Protected Poles Description:
- 3t
- Pvc Free:
- Yes
- Quantity Per Set:
- 1
- Continuous Current Rating:
- 0.8
- Warranty:
- 18 months
- Communication Interface:
- Modbus || Ethernet
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Installed Device:
- trip unit field installable
- Utilisation Category:
- category A
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Circuit Breaker Application:
- HACR rated
- Environmental Disclosure:
- ENVPEP2206027EN
- Range:
- PowerPact
- Ambient Air Temperature For Operation:
- -2-70 °C
- Device Application:
- distribution
- Trip Unit Technology:
- thermal-magnetic
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Mounting Mode:
- unit mount lug)
- Breaking Capacity:
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- Depth:
- 86 mm
- Line Rated Current:
- 50-50 A
- Eu Rohs Directive:
- Compliant with Exemptions
- Breaking Capacity Code:
- J
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Height:
- 163 mm
- Ambient Air Temperature For Storage:
- -50-85 °C
- Mercury Free:
- Yes
- Circularity Profile:
- ENVEOLI2206027EN
- Width:
- 104 mm
- Quality Labels:
- CE
- Product Or Component Type:
- circuit breaker
- Product Certifications:
- UL || CSA || NOM
- Mounting Support:
- lug
- Product Name:
- PowerPact H
- Network Frequency:
- 50/60 Hz
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Pollution Degree:
- 3 IEC 60947-1
- Rohs Exemption Information:
- Yes
- Magnetic Hold Current:
- 400 A
- Magnetic Tripping Current:
- 850-850 A
- Control Type:
- toggle
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Net Weight:
- 2.2 kg
- Electrical Connection:
- lugs, line || lugs, load
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Poles Description:
- 3P
