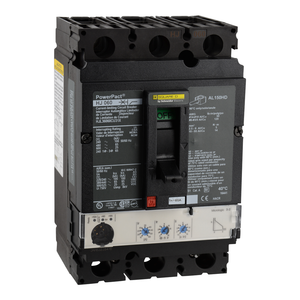

Schneider Electric HJL36060C Molded Case Circuit Breaker 600V 60A
Schneider Electric
$2,339.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 60A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 100%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Ambient Air Temperature For Storage:
- -50-85 °C
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Quality Labels:
- CE
- Net Weight:
- 2.2 kg
- Wire Stripping Length:
- 16 mm
- Electrical Connection:
- lugs, line || lugs, load
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Continuous Current Rating:
- 1
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Breaking Capacity Code:
- J
- Rohs Exemption Information:
- Yes
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Control Type:
- toggle
- Width:
- 104 mm
- Magnetic Hold Current:
- 800 A
- Pvc Free:
- Yes
- Circuit Breaker Application:
- HACR rated
- Mercury Free:
- Yes
- Protected Poles Description:
- 3t
- Mounting Support:
- lug
- Product Name:
- PowerPact H
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Range:
- PowerPact
- Quantity Per Set:
- 1
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Network Frequency:
- 50/60 Hz
- Color:
- Black
- Warranty:
- 18 months
- Depth:
- 86 mm
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Pollution Degree:
- 3 IEC 60947-1
- Product Or Component Type:
- circuit breaker
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Terminal Identifier:
- AL150HD
- Utilisation Category:
- category A
- Device Application:
- distribution
- Communication Interface:
- Modbus || Ethernet
- Eu Rohs Directive:
- Compliant with Exemptions
- Trip Unit Technology:
- thermal-magnetic
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Breaking Capacity:
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- Environmental Disclosure:
- ENVPEP2206027EN
- Magnetic Tripping Current:
- 1450-1450 A
- Suitability For Isolation:
- yes IEC 60947-2
- Height:
- 163 mm
- Ambient Air Temperature For Operation:
- -2-70 °C
- Sustainable Offer Status:
- Green Premium product
- Line Rated Current:
- 60-60 A
- Mounting Mode:
- unit mount lug)
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Poles Description:
- 3P
- Circularity Profile:
- ENVEOLI2206027EN
- Product Certifications:
- UL || CSA || NOM
