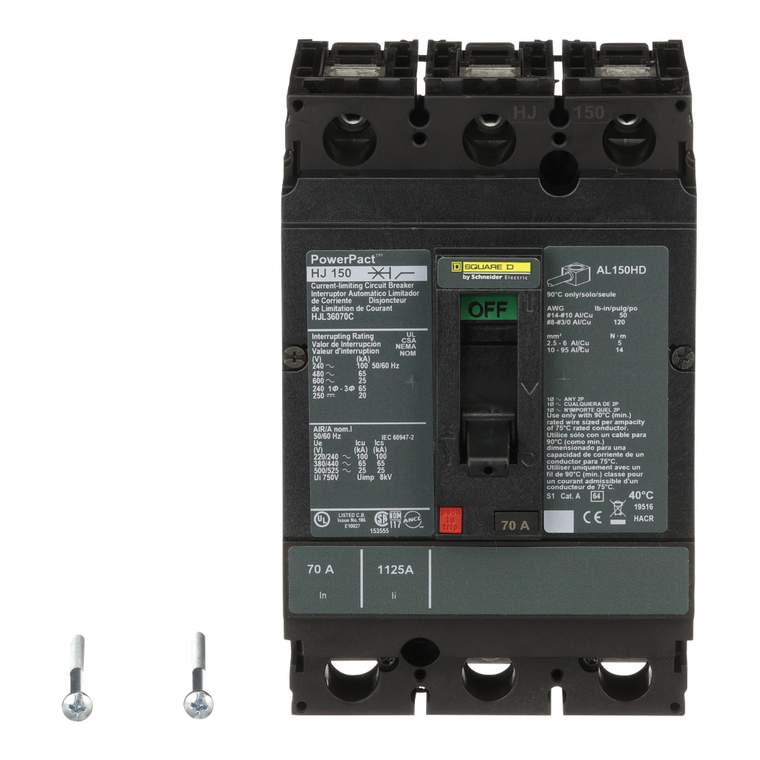

Schneider Electric HJL36070 Molded Case Circuit Breaker 600V 70A
Schneider Electric
$2,099.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 70A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Width:
- 104 mm
- Quality Labels:
- CE
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Magnetic Tripping Current:
- 1450-1450 A
- Electrical Connection:
- lugs, line || lugs, load
- Suitability For Isolation:
- yes IEC 60947-2
- Height:
- 163 mm
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Range:
- PowerPact
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Mounting Support:
- lug
- Warranty:
- 18 months
- Line Rated Current:
- 70-70 A
- Terminal Identifier:
- AL150HD
- Eu Rohs Directive:
- Compliant with Exemptions
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Sustainable Offer Status:
- Green Premium product
- Mounting Mode:
- unit mount lug)
- Mercury Free:
- Yes
- Product Name:
- PowerPact H
- Communication Interface:
- Modbus || Ethernet
- Circuit Breaker Application:
- HACR rated
- Depth:
- 86 mm
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Poles Description:
- 3P
- Utilisation Category:
- category A
- Wire Stripping Length:
- 16 mm
- Net Weight:
- 2.2 kg
- Breaking Capacity Code:
- J
- Product Or Component Type:
- circuit breaker
- Pollution Degree:
- 3 IEC 60947-1
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Continuous Current Rating:
- 0.8
- Product Certifications:
- UL || CSA || NOM
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Trip Unit Technology:
- thermal-magnetic
- Color:
- Black
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile:
- ENVEOLI2206027EN
- Network Frequency:
- 50/60 Hz
- Magnetic Hold Current:
- 800 A
- Pvc Free:
- Yes
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Control Type:
- toggle
- Breaking Capacity:
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- Device Application:
- distribution
- Ambient Air Temperature For Storage:
- -50-85 °C
- Protected Poles Description:
- 3t
- Rohs Exemption Information:
- Yes
- Ambient Air Temperature For Operation:
- -2-70 °C
- Quantity Per Set:
- 1
- Environmental Disclosure:
- ENVPEP2206027EN
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
