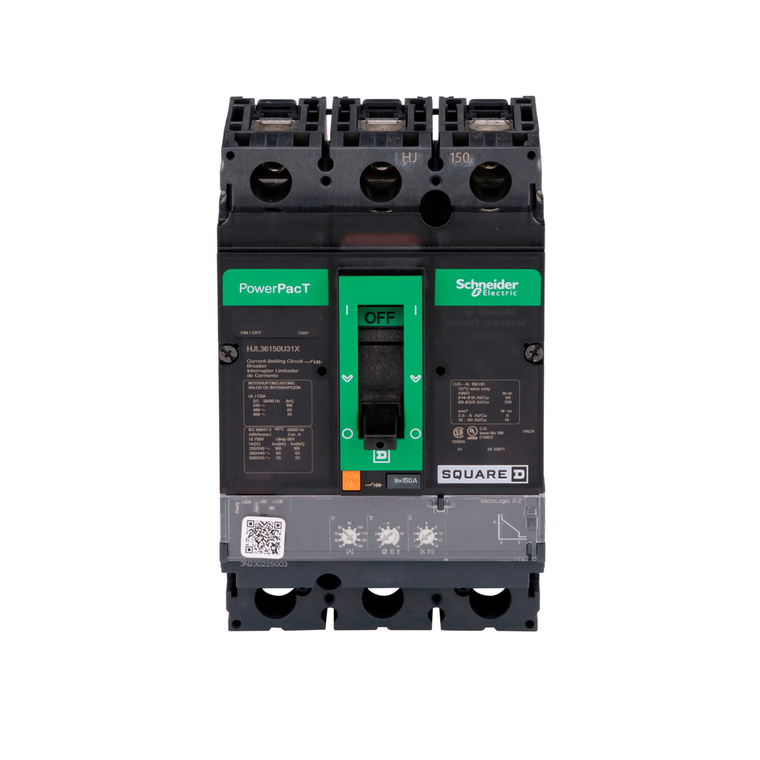

Schneider Electric HJL36150U31X Molded Case Circuit Breaker 600V 150A
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides Micrologic Standard with a 3.2 trip unit and an LI function with a breaking capacity of 25kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 150A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Communication Interface:
- Modbus || Ethernet
- Circuit Breaker Application:
- HACR rated
- Device Application:
- distribution
- Electrical Connection:
- lugs, line || lugs, load
- Mounting Support:
- lug
- Breaking Capacity:
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Breaking Capacity Code:
- J
- Suitability For Isolation:
- yes IEC 60947-2
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Mercury Free:
- Yes
- Product Name:
- PowerPact H
- Pollution Degree:
- 3 IEC 60947-1
- Warranty:
- 18 months
- Wire Stripping Length:
- 16 mm
- Quantity Per Set:
- 1
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Range:
- PowerPact
- Local Signalling:
- ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
- Ambient Air Temperature For Storage:
- -50-85 °C
- Pvc Free:
- Yes
- Height:
- 163 mm
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Mounting Mode:
- unit mount lug)
- Color:
- Black
- Sustainable Offer Status:
- Green Premium product
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Line Rated Current:
- 150-150 A
- Control Type:
- toggle
- Network Frequency:
- 50/60 Hz
- Width:
- 104 mm
- Trip Unit Technology:
- electronic, standard, MicroLogic 3.2, LI
- Product Or Component Type:
- circuit breaker
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive:
- Compliant with Exemptions
- Trip Unit Name:
- MicroLogic 3.2
- Utilisation Category:
- category A
- Rohs Exemption Information:
- Yes
- Depth:
- 86 mm
- Continuous Current Rating:
- 0.8
- Circularity Profile:
- ENVEOLI2206028EN
- Product Certifications:
- UL || CSA || NOM
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Protected Poles Description:
- 3t
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Poles Description:
- 3P
- Ambient Air Temperature For Operation:
- -2-70 °C
- Environmental Disclosure:
- ENVPEP2206028EN
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Net Weight:
- 2.2 kg
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Quality Labels:
- CE
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Terminal Identifier:
- AL150HD
