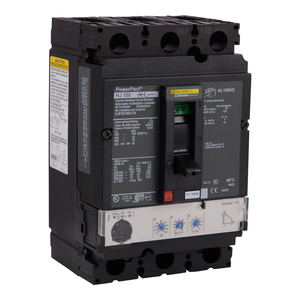

Schneider Electric HJP36100 Molded Case Circuit Breaker 600V 100A
Schneider Electric
$2,099.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has terminal nuts on the line side and lugs on the load side. This PowerPacT H, 100A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Warranty:
- 18 months
- Trip Unit Technology:
- thermal-magnetic
- Network Frequency:
- 50/60 Hz
- Circularity Profile:
- ENVEOLI2206027EN
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Height:
- 163 mm
- Breaking Capacity Code:
- J
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Product Name:
- PowerPact H
- Eu Rohs Directive:
- Compliant with Exemptions
- Quality Labels:
- CE
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Poles Description:
- 3P
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Environmental Disclosure:
- ENVPEP2206027EN
- Rohs Exemption Information:
- Yes
- Suitability For Isolation:
- yes IEC 60947-2
- Magnetic Hold Current:
- 900 A
- Pollution Degree:
- 3 IEC 60947-1
- Product Or Component Type:
- circuit breaker
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Width:
- 104 mm
- Electrical Connection:
- terminal nut, line || lugs, load
- Mounting Mode:
- unit mount lug)
- Ambient Air Temperature For Storage:
- -50-85 °C
- Device Application:
- distribution
- Depth:
- 86 mm
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Operation:
- -2-70 °C
- Mounting Support:
- lug
- Terminal Identifier:
- AL150HD
- Utilisation Category:
- category A
- Magnetic Tripping Current:
- 1700-1700 A
- Line Rated Current:
- 100-100 A
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Control Type:
- toggle
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Protected Poles Description:
- 3t
- Net Weight:
- 2.2 kg
- Quantity Per Set:
- 1
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Continuous Current Rating:
- 0.8
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Color:
- Black
- Circuit Breaker Application:
- HACR rated
- Wire Stripping Length:
- 16 mm
- Range:
- PowerPact
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Communication Interface:
- Modbus || Ethernet
- Product Certifications:
- UL || CSA || NOM
- Pvc Free:
- Yes
- Breaking Capacity:
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Mercury Free:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
