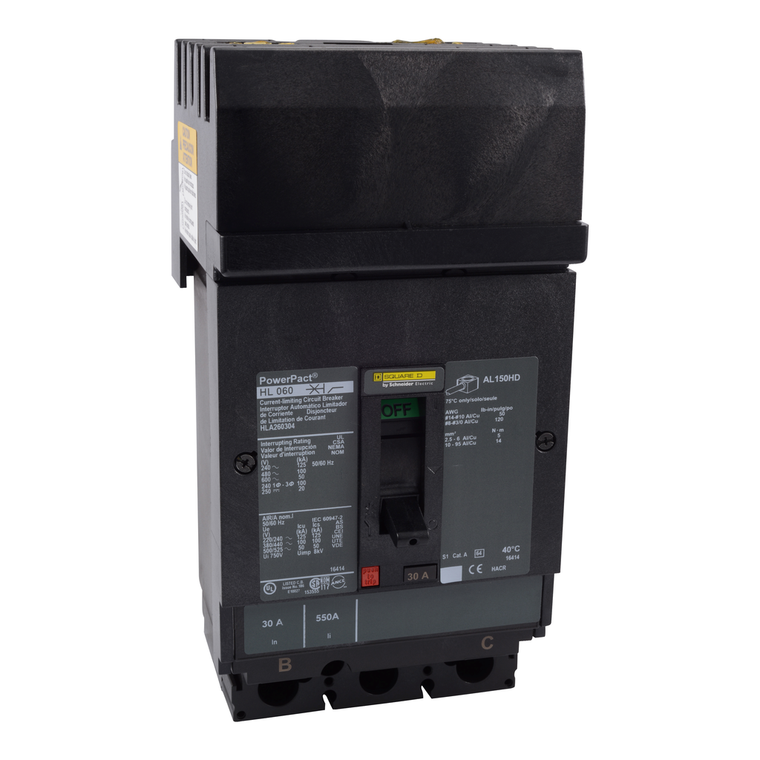

Schneider Electric HLA260201 Molded Case Circuit Breaker 600V 20A
Schneider Electric
$3,724.50
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric HLA260201 Molded Case Circuit Breaker 600V 20A
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 50kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 20A, 2 pole, circuit breaker has a breaking capacity of 50kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an AB phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Magnetic Tripping Current:
- 750-750 A
- Mounting Support:
- bracket
- Product Name:
- PowerPact H
- Color:
- Black
- Quantity Per Set:
- 1
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Rohs Exemption Information:
- Yes
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Network Frequency:
- 50/60 Hz
- Product Or Component Type:
- circuit breaker
- Communication Interface:
- Modbus || Ethernet
- Product Certifications:
- UL || CSA || NOM
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Environmental Disclosure:
- ENVPEP1311006EN
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Circuit Breaker Application:
- HACR rated
- Phase Connection:
- AB
- Depth:
- 86 mm
- Pvc Free:
- Yes
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Breaking Capacity Code:
- L
- [Ics] Rated Service Breaking Capacity:
- 125 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 100 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 50 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Ambient Air Temperature For Operation:
- -2-70 °C
- Quality Labels:
- CE
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Height:
- 163 mm
- Trip Unit Technology:
- thermal-magnetic
- Width:
- 104 mm
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Continuous Current Rating:
- 0.8
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Line Rated Current:
- 20-20 A
- Control Type:
- toggle
- Suitability For Isolation:
- yes IEC 60947-2
- Magnetic Hold Current:
- 350 A
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Sustainable Offer Status:
- Green Premium product
- Utilisation Category:
- category A
- Pollution Degree:
- 3 IEC 60947-1
- Circularity Profile:
- ENVEOLI1311006EN
- Wire Stripping Length:
- 16 mm
- Breaking Capacity:
- 125 kA 240 V AC 50/60 Hz UL 489 || 100 kA 480 V AC 50/60 Hz UL 489 || 50 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 50 kA 500 V DC UL 489
- Ambient Air Temperature For Storage:
- -50-85 °C
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Protected Poles Description:
- 2t
- Device Application:
- distribution
- Eu Rohs Directive:
- Compliant
- Mounting Mode:
- I-Line bracket)
- Mounting Height:
- 4.5 in
- Terminal Identifier:
- AL150HD
- Electrical Connection:
- I-Line connection, line || lugs, load
- Range:
- PowerPact
- Poles Description:
- 2P
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Net Weight:
- 2.2 kg
- Mercury Free:
- Yes
- Warranty:
- 18 months
- Brochure:
- View
