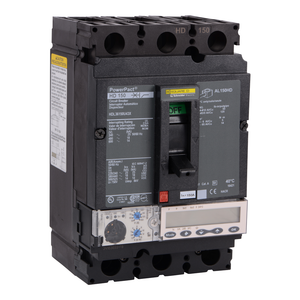

Schneider Electric HLA36150U33X Molded Case Circuit Breaker 600V 150A

Schneider Electric HLA36150U33X Molded Case Circuit Breaker 600V 150A

Schneider Electric
SKU:
HLA36150U33X
|
UPC:
3606486282809
Availability:
Contact us to confirm availability and lead times.
$7,484.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides Micrologic Standard with a 3.2S trip unit and an LSI function with a breaking capacity of 50kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 150A, 3 pole, circuit breaker has a breaking capacity of 50kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Circularity Profile:
ENVEOLI2206028EN
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-3
Continuous Current Rating:
0.8
Product Or Component Type:
circuit breaker
Breaking Capacity Code:
L
Product Certifications:
UL || CSA || NOM
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Ambient Air Temperature For Storage:
-50-85 °C
Pollution Degree:
3 IEC 60947-1
Line Rated Current:
150-150 A
Ambient Air Temperature For Operation:
-2-70 °C
Circuit Breaker Application:
HACR rated
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Communication Interface:
Modbus || Ethernet
Sustainable Offer Status:
Green Premium product
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Trip Unit Technology:
electronic, standard, MicroLogic 3.2 S, LSI
Quality Labels:
CE
Awg Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Net Weight:
2.2 kg
Device Application:
distribution
Phase Connection:
ABC
Pvc Free:
Yes
Protected Poles Description:
3t
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Eu Rohs Directive:
Compliant with Exemptions
Wire Stripping Length:
16 mm
Warranty:
18 months
Ip Degree Of Protection:
front cover IP40 IEC 60529
Control Type:
toggle
Mercury Free:
Yes
Poles Description:
3P
Rohs Exemption Information:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Network Frequency:
50/60 Hz
Height:
163 mm
Color:
Black
Environmental Disclosure:
ENVPEP2206028EN
Breaking Capacity:
125 kA 240 V AC 50/60 Hz UL 489 || 100 kA 480 V AC 50/60 Hz UL 489 || 50 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 50 kA 500 V DC UL 489
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Utilisation Category:
category A
Suitability For Isolation:
yes IEC 60947-2
Depth:
86 mm
Quantity Per Set:
1
Width:
104 mm
Mounting Mode:
I-Line bracket)
[Ics] Rated Service Breaking Capacity:
125 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 100 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 50 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Mounting Support:
bracket
Tightening Torque:
5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
Terminal Identifier:
AL150HD
Mounting Height:
4.5 in
Product Name:
PowerPact H
Electrical Connection:
I-Line connection, line || lugs, load
Range:
PowerPact
Trip Unit Name:
MicroLogic 3.2 S
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
