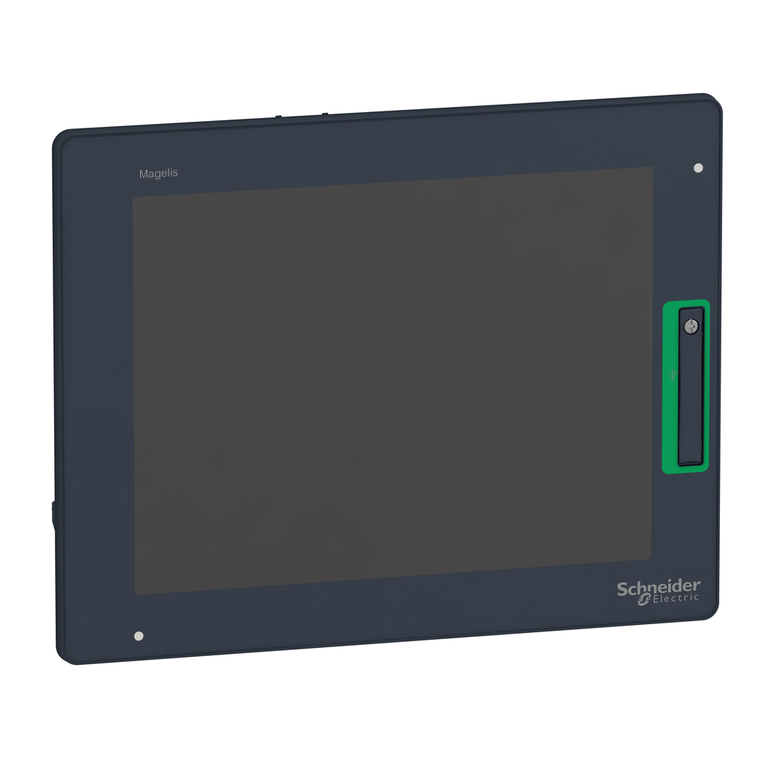

Schneider Electric HMIDT542 10.4 Touch Smart Display Svga

Schneider Electric HMIDT542 10.4 Touch Smart Display Svga

Schneider Electric
SKU:
HMIDT542
|
UPC:
3.60648E+12
Availability:
Contact us to confirm availability and lead times.
$3,205.65
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Magelis GTU universal touchscreen operator interface (HMI) is supplied with 12V to 24V DC, has a 10.4" color TFT LCD display with 800 x 600 pixels and 16M colors. It can handle multi-touch gestures. It is ideal for high-performance monitoring and communication thanks to a smartphone-like interface for use in the most demanding automation systems, including industrial control equipments, hazardous locations, and marine applications. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. It also offers removable storage, dual LAN and dual communication interfaces. It resists permanent 60°C temperature, this makes it ideal for installation in areas where ventilation of the cabinet is not possible or risky.
Additional Information
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Display Type:
colour TFT LCD
Power Consumption In W:
15 W
Circularity Profile:
ENVEOLI1402016EN
Environmental Disclosure:
ENVPEP1402016EN
Inrush Current:
30 A
Product Certifications:
cULus || CE || KC || RCM || UKCA || UKEX
Width:
272.5 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Integrated Connection Type:
USB 2.0 type A || USB 2.0 type mini B
Backlight Lifespan:
50000 hours
Standards:
UL 508 || ANSI/ISA 12-12-01 || class I division 2 CSA C22.2 No 213 || CSA C22.2 No 142 || IEC 61132-2
Mercury Free:
Yes
Rohs Exemption Information:
Yes
Aspect Ratio:
0.16875
Product Or Component Type:
flat screen
Supply Voltage Limits:
10.8-28.8 V
Relative Humidity:
10-90 % non-condensing
Range Of Product:
Harmony GTU
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Ambient Air Temperature For Operation:
0-60 °C IEC 61131-2
Type Of Installation:
indoor installation
Pixel Resolution:
800 x 600
Terminal Type:
touchscreen display
Electromagnetic Compatibility:
electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
Height:
214.5 mm
Cut-Out Dimensions:
259 (+ 1/- 0) x 201 (+ 1/- 0) mm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Display Resolution:
800 x 600 pixels SVGA
Nema Degree Of Protection:
NEMA 4X front panel
Sustainable Offer Status:
Green Premium product
Function Available:
brightness sensor
Display Size:
10.4 inch
Depth:
67 mm
Display Colour:
16 million colours
China Rohs Regulation:
X
Vibration Resistance:
3.5 mm constant amplitude 5-9 Hz) IEC 61131-2 || 9.8 m/s² 9-150 Hz) IEC 61131-2
Touchscreen Resolution:
1024 x 1024
Ambient Air Temperature For Storage:
-20-60 °C
Net Weight:
2.7 kg
Touch Panel:
multi touch analogue resistive
Operating Altitude:
6561.68 ft (2000 m)
Warranty:
18 months
Shock Resistance:
147 m/s²IEC 61131-2
[Us] Rated Supply Voltage:
12...24 V DC power supply
Ip Degree Of Protection:
front panel IP66 || front panel IP67
Type Of Cooling:
natural convection
