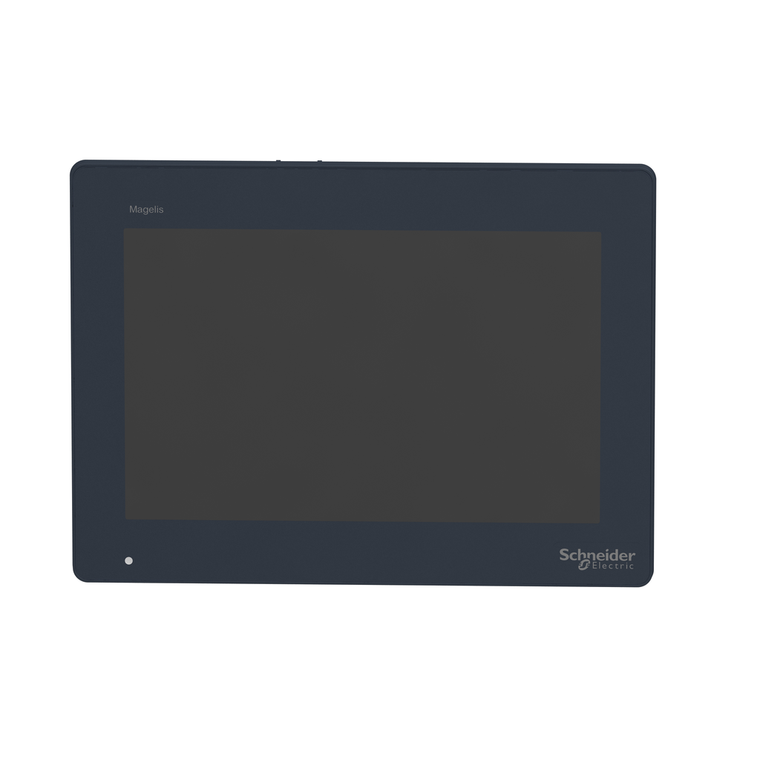

Schneider Electric HMIDT551 10W Touch Advanced Display Wxga
This Magelis GTU universal touchscreen operator interface (HMI) is supplied with 12V to 24V DC, has a 10" color TFT LCD display with 1280 x 800 pixels and 262K colors. This universal touchscreen operator interface (HMI) is ideal for high-performance monitoring and communication. High-performance monitoring and communication thanks to a smartphone-like interface for use in the most demanding automation systems, including industrial control equipments, hazardous locations, and marine applications. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. It also offers removable storage, dual LAN and dual communication interfaces. It resists permanent 60°C temperature, this makes it ideal for installation in areas where ventilation of the cabinet is not possible or risky.
- Cut-Out Dimensions:
- 255 (+ 1/- 0) x 185 (+ 1/- 0) mm
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Terminal Type:
- touchscreen display
- Pixel Resolution:
- 1280 x 800
- Warranty:
- 18 months
- China Rohs Regulation:
- X
- Operating Altitude:
- 6561.68 ft (2000 m)
- Product Certifications:
- RCM || cULus || KC || CE || UKCA || UKEX
- Sustainable Offer Status:
- Green Premium product
- Environmental Disclosure:
- ENVPEP1402017EN
- Width:
- 268.5 mm
- Relative Humidity:
- 10-90 % non-condensing
- Shock Resistance:
- 147 m/s²IEC 61131-2
- Display Colour:
- 262144 colors
- Net Weight:
- 2.5 kg
- Product Or Component Type:
- advanced touchscreen panel
- Electromagnetic Compatibility:
- electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
- Ambient Air Temperature For Operation:
- 0-60 °C IEC 61131-2
- Type Of Installation:
- indoor installation
- Range Of Product:
- Harmony GTU
- Power Consumption In W:
- 6.5 W
- Inrush Current:
- 30 A
- Nema Degree Of Protection:
- NEMA 4X front panel
- Type Of Cooling:
- natural convection
- Vibration Resistance:
- 3.5 mm constant amplitude 5-9 Hz) IEC 61131-2 || 9.8 m/s² 9-150 Hz) IEC 61131-2
- [Us] Rated Supply Voltage:
- 12...24 V DC power supply
- Supply Voltage Limits:
- 10.8-28.8 V
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Backlight Lifespan:
- 50000 hours
- Ambient Air Temperature For Storage:
- -20-60 °C
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Circularity Profile:
- ENVEOLI1402017EN
- Aspect Ratio:
- 0.16875
- Touchscreen Resolution:
- 1024 x 1024
- Height:
- 198.5 mm
- Mercury Free:
- Yes
- Depth:
- 67 mm
- Display Type:
- colour TFT LCD
- Ip Degree Of Protection:
- front panel IP66 || front panel IP67
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Standards:
- UL 508 || ANSI/ISA 12-12-01 || class I division 2 CSA C22.2 No 213 || CSA C22.2 No 142 || IEC 61132-2
- Display Size:
- 10.1 inch
- Rohs Exemption Information:
- Yes
- Display Resolution:
- 1280 x 800 pixels WVGA
- Touch Panel:
- single touch analogue resistive
