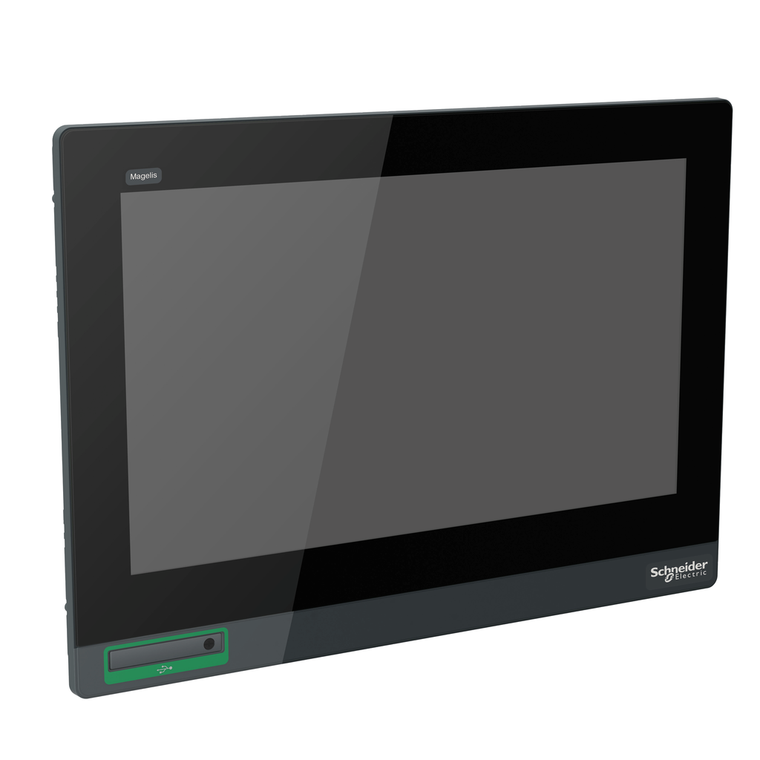

Schneider Electric HMIDT752 15W Touch Smart Display Fwxga

(No reviews yet) Write a Review

Write a Review

Schneider Electric HMIDT752 15W Touch Smart Display Fwxga

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

HMIDT752

UPC:

3606481203465

MPN:

Condition:

New

Nema Degree Of Protection:

NEMA 4X front panel

Depth:

69 mm

Display Size:

15.6 inch

Sustainable Offer Status:

Green Premium product

Power Consumption In W:

17 W

Range Of Product:

Harmony GTU

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Environmental Disclosure:

ENVPEP1402016EN

Display Resolution:

1366 x 768 pixels FWXGA

Supply Voltage Limits:

10.8-28.8 V

Aspect Ratio:

0.16875

Operating Altitude:

6561.68 ft (2000 m)

Product Certifications:

KC || CE || RCM || cULus || UKCA || UKEX

Display Type:

colour TFT LCD

Ambient Air Temperature For Operation:

0-55 °C IEC 61131-2

Function Available:

brightness sensor

Net Weight:

5 kg

Touch Panel:

multi-touch projected capactive technology (PCT) 50000000 cycles

Type Of Installation:

indoor installation

Product Or Component Type:

flat screen

Width:

414 mm

Relative Humidity:

10-90 % non-condensing

Vibration Resistance:

3.5 mm constant amplitude 5-9 Hz) IEC 61131-2 || 9.8 m/s² 9-150 Hz) IEC 61131-2

Display Colour:

16 million colours

Inrush Current:

30 A

Cut-Out Dimensions:

396 (+ 1/- 0) x 277 (+ 1/- 0) mm

Electromagnetic Compatibility:

electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2

Pixel Resolution:

1366 x 768

Ambient Air Temperature For Storage:

-20-60 °C

Mercury Free:

Yes

Type Of Cooling:

natural convection

China Rohs Regulation:

X

Ip Degree Of Protection:

front panel IP66 || front panel IP67

Standards:

UL 508 || ANSI/ISA 12-12-01 || class I division 2 CSA C22.2 No 213 || CSA C22.2 No 142 || IEC 61132-2

Backlight Lifespan:

50000 hours

Touchscreen Resolution:

2048 x 2048

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Shock Resistance:

147 m/s²IEC 61131-2

Rohs Exemption Information:

Yes

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Height:

295 mm

[Us] Rated Supply Voltage:

12...24 V DC power supply

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Terminal Type:

touchscreen display

Circularity Profile:

ENVEOLI1402016EN

Integrated Connection Type:

USB 2.0 type A || USB 2.0 type mini B

Brochure:

View

Catalog:

View

Datasheet:

View
