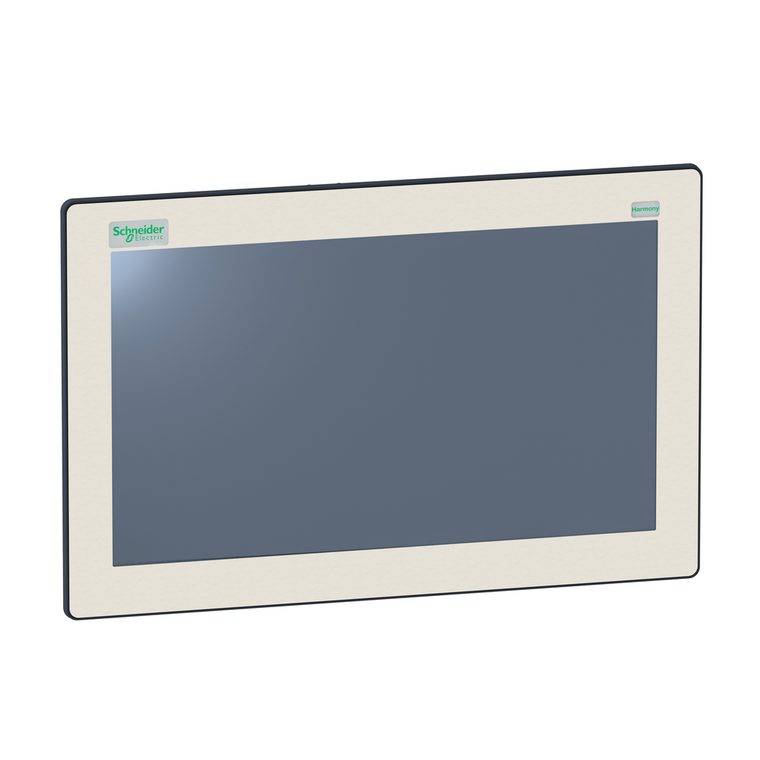

Schneider Electric HMIDT75XFH 15W Extreme Display Full Coated.

(No reviews yet) Write a Review

Write a Review

Schneider Electric HMIDT75XFH 15W Extreme Display Full Coated.

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

HMIDT75XFH

UPC:

3606481572943

MPN:

Condition:

New

Aspect Ratio:

0.16875

Luminance:

1000 cd/m²

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Power Consumption In W:

12.5 W

Width:

408 mm

Range Of Product:

Harmony GTUX

Ip Degree Of Protection:

IP66f || IP67f || front panel Type 4X

Pixel Resolution:

1366 x 768

Inrush Current:

30 A

Product Or Component Type:

eXtreme touchscreen panel

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Terminal Type:

touchscreen display

Supply Voltage Limits:

10.8-28.8 V

Rohs Exemption Information:

Yes

Standards:

UL 61010 || UL 121201 || CSA C22.2 No 213 || CSA C22.2 No 61010-1 || IEC 61132-2

Display Colour:

262144 colors

China Rohs Regulation:

X

Touchscreen Resolution:

1024 x 1024

Ambient Air Temperature For Operation:

-20-60 °C IEC 61131-2

Display Type:

colour TFT LCD

Net Weight:

4.8 kg

Touch Panel:

single touch analogue resistive

Environmental Characteristic:

3C3 || UV resistant

Vibration Resistance:

3.5 mm 5-9 Hz) IEC 61131-2 || 9.8 m/s² 9-150 Hz) IEC 61131-2

Circularity Profile:

ENVEOLI1402016EN

Environmental Disclosure:

ENVPEP1402016EN

Type Of Cooling:

natural convection

Cut-Out Dimensions:

394 (+ 1/- 0) x 250 (+ 1/- 0) mm

Ambient Air Temperature For Storage:

-20-60 °C

Display Resolution:

1366 x 768 pixels FWXGA

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Operating Altitude:

6561.68 ft (2000 m)

Electromagnetic Compatibility:

electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2

[Us] Rated Supply Voltage:

12 V DC power supply

Depth:

68 mm

Display Size:

15.6 inch

Relative Humidity:

10-90 % non-condensing

Pollution Degree:

2

Height:

264 mm

Product Certifications:

KC || CE || RCM || EAC || ATEX zone 2/22 || IEC-Ex || UL || CSA || UKCA || UKEX

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Sustainable Offer Status:

Green Premium product

Shock Resistance:

392 m/s²IEC 61131-2
