Schneider Electric HMIGK2310 5.7 Keypad Panel Qvga-Tft
Schneider Electric
$3,230.50
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

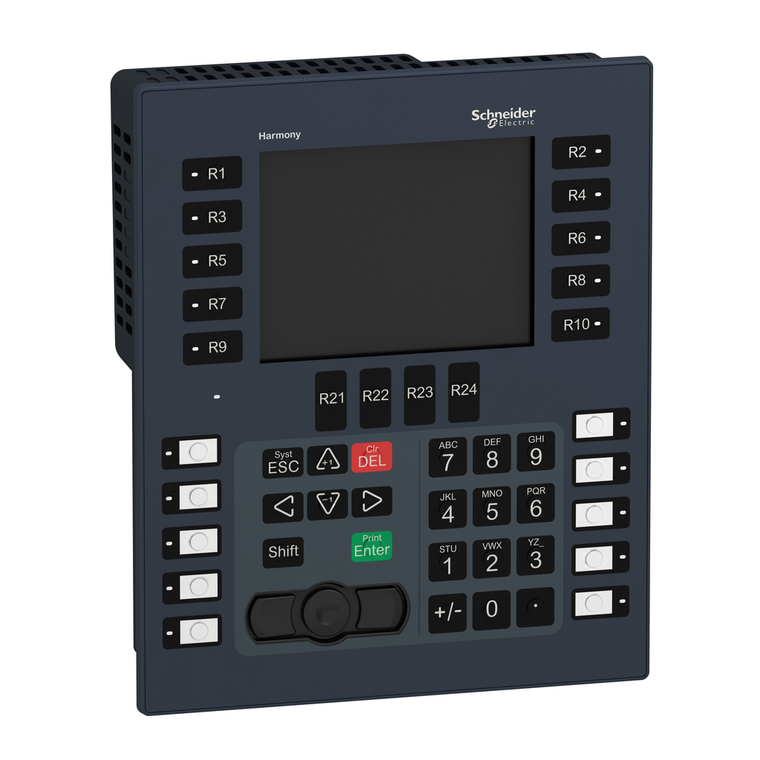

Schneider Electric HMIGK2310 5.7 Keypad Panel Qvga-Tft
This Magelis GK keypad-touchscreen operator interface (HMI) is supplied with 24V DC, has a 5.7" color TFT LCD display with, 320 x 240 pixels (QVGA), a complete keypad and 128MB EPROM. It also has 1 SD card slot, 1 host + 1 mini-B USB ports, 1 RS232C port, 1 RS485 port and 1 Ethernet TCP/IP port. It is ideal for complete control of an automation system in industry such as complex machines, CNC machines, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. It also offers 14 dynamic function keys, 10 static function keys, 12 alphanumeric keys, 8 service keys and an industrial mouse pointer. Its RS485 host port makes it ideal to supervise and control simple systems and machines.
- Number Of Service Keys:
- 8
- Standards:
- UL 61010-2-201 || IEC 61000-6-2 || IEC 61131-2 || ANSI/ISA 12.12.01 || CSA C22.2 No 213 || IEC 61000-6-4 || UBC 1997 (Seismic Zone 4)
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Local Signalling:
- for normal operation or backlighting faulty 1 LED (green or orange)
- Display Colour:
- 65536 colours
- Brightness:
- 16 levels via touch panel
- Display Resolution:
- 320 x 240 pixels QVGA
- Ambient Air Temperature For Operation:
- 0-55 °C
- Processor Frequency:
- 333 MHz
- Number Of Static Function Keys:
- 10 with LED and labels
- Front Material:
- aluminium alloy
- Power Consumption In W:
- 7.7 W
- Touch Sensitive Zone:
- 1024 x 1024
- Supply:
- external source
- Width:
- 220.3 mm
- Height:
- 265 mm
- Backlight Lifespan:
- 50000 hours
- Net Weight:
- 1.8 kg
- Number Of Alphanumeric Keys:
- 12
- Operating Altitude:
- < 6561.68 ft (2000 m)
- Port Ethernet:
- 10BASE-T/100BASE-TX
- Realtime Clock:
- built-in
- Number Of Dynamic Function Keys Symb:
- 14 with LED
- Product Or Component Type:
- touchscreen panel with keypad
- Vibration Resistance:
- 1 gn 9-150 Hz)IEC 60068-2-6 || 3.5 mm 5-9 Hz)IEC 60068-2-6
- Ip Degree Of Protection:
- IP20 IEC 60529 rear panel) || IP65 IEC 60529 front panel)
- Range Of Product:
- Harmony GK
- Immunity To Microbreaks:
- 5 ms
- Software Type:
- configuration software
- Depth:
- 70 mm
- Operating System:
- Harmony
- Mounting Mode:
- flush mounting
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation:
- X
- Electromagnetic Compatibility:
- resistance to electrostatic discharge - test level: 4 kV level 3 conforming to IEC 61000-4-2 || resistance to radiated electromagnetic fields - test level: 10 V/m conforming to IEC 61000-4-3 || resistance to fast transient - test level: 2 kV level 3
- Memory Type:
- up to 32 GB SD card RAM || up to 32 GB SDHC card RAM
- Number Of Pages:
- limited by internal memory capacity
- Nema Degree Of Protection:
- NEMA 4X front panel (indoor use)
- Software Designation:
- Vijeo Designer
- Fixing Mode:
- by 10 spring clips
- Relative Humidity:
- 10-90 % without condensation
- Marking:
- CE
- Inrush Current:
- 30 A
- Touch Panel:
- analogue
- Supply Voltage Limits:
- 19.2-28.8 V
- Ambient Air Temperature For Storage:
- -20-60 °C
- Cut-Out Dimensions:
- 209 (+/- 0.4) x 243 (+/- 0.4) mm
- Processor Name:
- CPU RISC
- Integrated Connection Type:
- <= 187.5 kbit/s RJ45, RS485 COM2 serial link Siemens MPI (187.5 kbits/s) || USB 2.0 type A master Modicon M340 terminal port communication || <= 115.2 kbits/s male SUB-D 9, RS232C COM1 serial link || removable screw terminal block power supply || RJ4
- Display Size:
- 5.7 inch
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- [Us] Rated Supply Voltage:
- 24 V DC
- Memory Description:
- 512 KB SRAM back up of data lithium battery || 128 MB flash EPROM application memory
- Rohs Exemption Information:
- Yes
- Downloadable Protocols:
- Telemecanique Modicon FIPWAY || Telemecanique Modicon Modbus Plus || Telemecanique Modicon Modbus TCP || Telemecanique Modicon Modbus || Mitsubishi Melsec third party protocols || Omron Sysmac third party protocols || Rockwell Automation Allen-Bradle
- Product Certifications:
- UL Class 1 Division 2 T5 || KC || CSA Class 1 Division 2 T5 || CSA Class 1 Division 2 T4A || EAC || RCM || cULus || UL Class 1 Division 2 T4A || UKCA
- Shock Resistance:
- 15 gn 11 ms IEC 60068-2-27
- Mercury Free:
- Yes
- Display Type:
- backlit colour TFT LCD
- Character Font:
- Korean || Taiwanese (traditional Chinese) || ASCII (European characters) || Japanese (ANK, Kanji) || Chinese (simplified Chinese)
- Enclosure Material:
- PPT
- Catalog:
- View
- Datasheet:
- View
