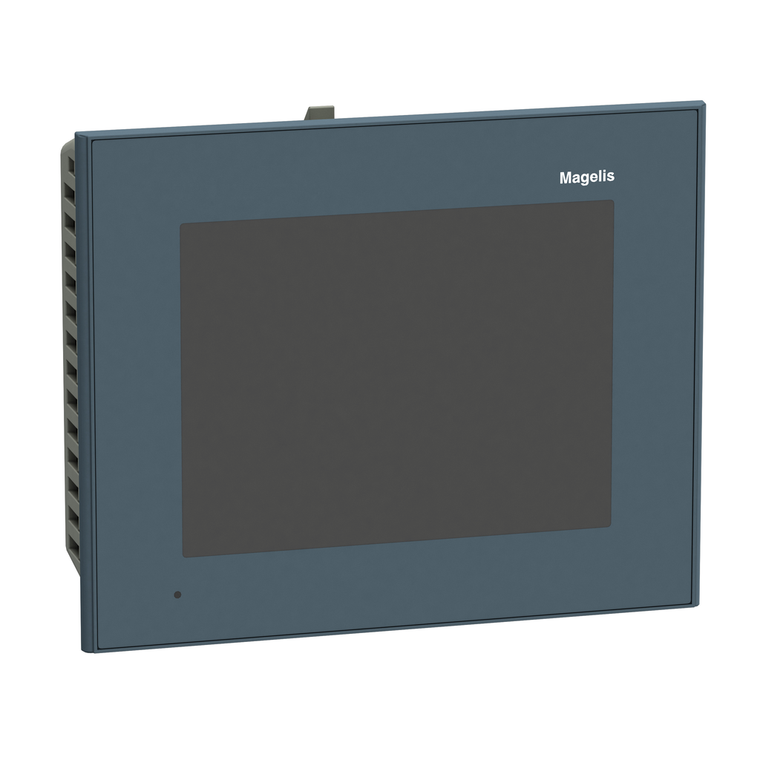

Schneider Electric HMIGTO2310FW Hmigto2310 Logo Removed

SKU:

HMIGTO2310FW

UPC:

3.60648E+12

MPN:

Condition:

New

Maximum Power Consumption In W:

6.5 W when power is not supplied to external devices || 4.5 W when backlight is OFF || 5 W when backlight is dimmed || 10.5 W

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Product Certifications:

KCC || C-tick || CE || cULus || UKCA || UKEX

Width:

169.5 mm

Vibration Resistance:

3.5 mm 5-9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2 || 1 gn 9-150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2

Sustainable Offer Status:

Green Premium product

Ambient Air Temperature For Operation:

0-55 °C

Data Storage Equipment:

SD card, <= 32 GB || SDHC card, <= 32 GB

Touch Panel:

resistive film, 1000000 cycles

Ambient Air Temperature For Storage:

-20-60 °C

China Rohs Regulation:

X

Range Of Product:

Harmony GTO

[Us] Rated Supply Voltage:

24 V DC

Touch Sensitive Zone:

1024 x 1024

Type Of Cooling:

natural convection

Software Designation:

Vijeo Designer configuration software >= V6.1

Net Weight:

0.8 kg

Standards:

IEC 61000-6-2 || EN 61131-2 || UL 508

Enclosure Material:

PPT

Product Mounting:

flush mounting

Shock Resistance:

147 m/s² 3 chocks in each direction X, Y and Z EN/IEC 61131-2

Product Or Component Type:

advanced touchscreen panel

Battery Type:

lithium internal RAM 100 days 5 day(s) 10 year(s)

Circularity Profile:

ENVEOLI1402012EN

Ip Degree Of Protection:

IP20 IEC 60529 rear panel) || IP65 IEC 60529 front panel)

Display Colour:

65536 colours

Fixing Mode:

by 4 screw clamps

Resistance To Electrostatic Discharge:

6 kV contact discharge IEC 61000-4-2 level 3

Supply:

external source

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Rohs Exemption Information:

Yes

Supply Voltage Limits:

19.2-28.8 V

Height:

137 mm

Character Font:

Korean || Japanese (ANK, Kanji) || Chinese (simplified Chinese) || Taiwanese (traditional Chinese) || ASCII (European characters)

Environmental Disclosure:

ENVPEP1402012EN

Relative Humidity:

10-90 % without condensation

Operating Altitude:

< 6561.68 ft (2000 m)

Terminal Type:

touchscreen display

Local Signalling:

status LED green, steady offline || status LED green, steady operating || status LED orange, flashing software starting up || status LED red, steady power supply (ON) || status LED clear, faded power supply (OFF) || COM2 LED yellow, steady data is be

Data Backed Up:

512 KB internal RAM SRAM)

Display Size:

5.7 inch

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Depth:

59.5 mm

Inrush Current:

30 A

Memory Description:

flash EPROM, 96 MB

Brightness:

16 levels by touch panel || 16 levels by software

Backlight Lifespan:

50000 hours white 25 °C

Display Resolution:

320 x 240 pixels QVGA

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Display Type:

backlit colour TFT LCD

Integrated Connection Type:

COM1 serial link SUB-D 9 RS232C 2400...115200 bps || COM2 serial link RJ45 RS485 2400...115200 bps || COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI || Ethernet RJ45 10BASE-T/100BASE-TX || Ethernet RJ45 IEEE 802.3 || USB 2.0 type A || USB 2.0 typ

Downloadable Protocols:

Schneider Electric Modicon Modbus || Schneider Electric Modicon Uni-TE || Schneider Electric Modicon Modbus Plus || Schneider Electric Modicon FIPWAY || Mitsubishi Melsec third party protocols || Omron Sysmac third party protocols || Rockwell Automat

Nema Degree Of Protection:

NEMA 4X front panel (indoor use)

Front Material:

PPT

Datasheet:
