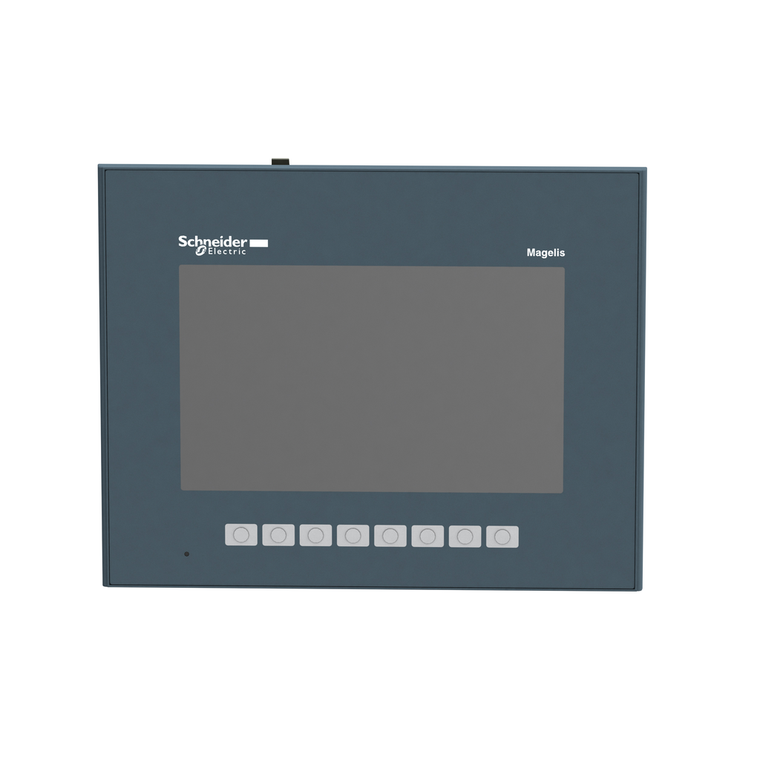

Schneider Electric HMIGTO3510 7.0 Color Touch Panel Wvga-Tft

(No reviews yet) Write a Review

Write a Review

Schneider Electric HMIGTO3510 7.0 Color Touch Panel Wvga-Tft

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

HMIGTO3510

UPC:

3595864150260

MPN:

Condition:

New

Display Type:

backlit colour TFT LCD

Brightness:

16 levels by touch panel || 16 levels by software

[Us] Rated Supply Voltage:

24 V DC

Fixing Mode:

by 4 screw clamps

Relative Humidity:

10-90 % without condensation

Product Certifications:

CE || C-tick || KCC || cULus || UKCA || UKEX

Standards:

UL 508 || IEC 61000-6-2 || IEC 61131-2

Battery Type:

lithium internal RAM 100 days 5 day(s) 10 year(s)

Height:

173 mm

Ip Degree Of Protection:

IP20 IEC 60529 rear panel) || IP65 IEC 60529 front panel)

Software Designation:

Vijeo Designer configuration software >= V6.1

Control Button Type:

8 operation defined using Vijeo Designer push-button key F1...F8

Type Of Cooling:

natural convection

Data Backed Up:

128 kB internal RAM SRAM)

Character Font:

Taiwanese (traditional Chinese) || ASCII || Chinese (simplified Chinese) || Japanese (ANK, Kanji) || Korean

Supply Voltage Limits:

19.2-28.8 V

Resistance To Electrostatic Discharge:

6 kV contact discharge IEC 61000-4-2 level 3

Terminal Type:

touchscreen display

Maximum Power Consumption In W:

8 W when power is not supplied to external devices || 5 W when backlight is OFF || 5.5 W when backlight is dimmed || 12 W

Rohs Exemption Information:

Yes

Depth:

60 mm

Enclosure Material:

PPT

Touch Sensitive Zone:

1024 x 1024

Ambient Air Temperature For Operation:

0-50 °C

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Supply:

external source

Backlight Lifespan:

50000 hours white 25 °C

Data Storage Equipment:

SD card, <= 32 GB || SDHC card, <= 32 GB

Warranty:

18 months

Operating Altitude:

< 6561.68 ft (2000 m)

Net Weight:

1.2 kg

Front Material:

PPT

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Inrush Current:

30 A

Memory Description:

flash EPROM, 96 MB

Range Of Product:

Harmony GTO

China Rohs Regulation:

X

Shock Resistance:

147 m/s² 3 chocks in each direction X, Y and Z IEC 61131-2

Product Or Component Type:

advanced touchscreen panel

Product Mounting:

flush mounting

Nema Degree Of Protection:

NEMA 4X front panel (indoor use)

Operating System:

Harmony

Local Signalling:

status LED green, steady offline || status LED green, steady operating || status LED orange, flashing software starting up || status LED red, steady power supply (ON) || status LED clear, faded power supply (OFF) || COM2 LED yellow, steady data is be

Ambient Air Temperature For Storage:

-20-60 °C

Width:

218 mm

Touch Panel:

resistive film, 1000000 cycles

Mercury Free:

Yes

Display Resolution:

800 x 480 pixels WVGA

Display Colour:

65536 colours

Downloadable Protocols:

Schneider Electric Modicon Modbus || Schneider Electric Modicon Uni-TE || Schneider Electric Modicon Modbus Plus || Schneider Electric Modicon FIPWAY || Mitsubishi Melsec third party protocols || Omron Sysmac third party protocols || Rockwell Automat

Circularity Profile:

ENVEOLI1402012EN

Environmental Disclosure:

ENVPEP1402012EN

Sustainable Offer Status:

Green Premium product

Vibration Resistance:

3.5 mm 5-9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-2 || 1 gn 9-150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-2

Display Size:

7 inch

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Integrated Connection Type:

COM1 serial link SUB-D 9 RS232C 2400...115200 bps || COM2 serial link RJ45 RS485 2400...115200 bps || COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI || Ethernet RJ45 10BASE-T/100BASE-TX || Ethernet RJ45 IEEE 802.3 || USB 2.0 type A || USB 2.0 typ
