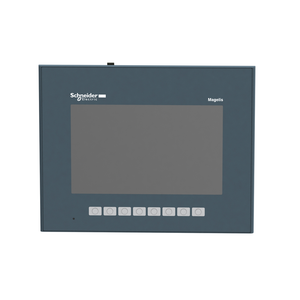

Schneider Electric HMIGTO3510FC Hmigto3510 Coated
Advanced touchscreen panel, Harmony GTO, 7.0 Color Touch WVGA TFT, coated display
- Fixing Mode:
- by 4 screw clamps
- Resistance To Electrostatic Discharge:
- 6 kV contact discharge IEC 61000-4-2 level 3
- Maximum Power Consumption In W:
- 8 W when power is not supplied to external devices || 5 W when backlight is OFF || 5.5 W when backlight is dimmed || 12 W
- Touch Sensitive Zone:
- 1024 x 1024
- Touch Panel:
- resistive film, 1000000 cycles
- Battery Type:
- lithium internal RAM 100 days 5 day(s) 10 year(s)
- Data Storage Equipment:
- SD card, <= 32 GB || SDHC card, <= 32 GB
- Environmental Disclosure:
- ENVPEP1402012EN
- Product Or Component Type:
- advanced touchscreen panel
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Product Mounting:
- flush mounting
- Circularity Profile:
- ENVEOLI1402012EN
- Depth:
- 60 mm
- Standards:
- UL 508 || EN 61131-2 || IEC 61000-6-2
- Enclosure Material:
- PPT
- Display Size:
- 7 inch
- Display Colour:
- 65536 colours
- Memory Description:
- flash EPROM, 96 MB
- Downloadable Protocols:
- Schneider Electric Modicon Modbus || Schneider Electric Modicon Uni-TE || Schneider Electric Modicon Modbus Plus || Schneider Electric Modicon FIPWAY || Mitsubishi Melsec third party protocols || Omron Sysmac third party protocols || Rockwell Automat
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation:
- X
- Backlight Lifespan:
- 50000 hours white 25 °C
- Sustainable Offer Status:
- Green Premium product
- Display Resolution:
- 800 x 480 pixels WVGA
- Nema Degree Of Protection:
- NEMA 4X front panel (indoor use)
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Range Of Product:
- Harmony GTO
- Data Backed Up:
- 128 kB internal RAM SRAM)
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Software Designation:
- Vijeo Designer configuration software >= V6.1
- Ambient Air Temperature For Storage:
- -20-60 °C
- Integrated Connection Type:
- COM1 serial link SUB-D 9 RS232C 2400...115200 bps || COM2 serial link RJ45 RS485 2400...115200 bps || COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI || Ethernet RJ45 10BASE-T/100BASE-TX || Ethernet RJ45 IEEE 802.3 || USB 2.0 type A || USB 2.0 typ
- Type Of Cooling:
- natural convection
- Operating Altitude:
- < 6561.68 ft (2000 m)
- Control Button Type:
- 8 operation defined using Vijeo Designer push-button key F1...F8
- Brightness:
- 16 levels by touch panel || 16 levels by software
- Rohs Exemption Information:
- Yes
- Local Signalling:
- status LED green, steady offline || status LED green, steady operating || status LED orange, flashing software starting up || status LED red, steady power supply (ON) || status LED clear, faded power supply (OFF) || COM2 LED yellow, steady data is be
- Supply Voltage Limits:
- 19.2-28.8 V
- Supply:
- external source
- Front Material:
- PPT
- Character Font:
- Japanese (ANK, Kanji) || Taiwanese (traditional Chinese) || Korean || ASCII || Chinese (simplified Chinese)
- Display Type:
- backlit colour TFT LCD
- Net Weight:
- 1.2 kg
- Inrush Current:
- 30 A
- Relative Humidity:
- 10-90 % without condensation
- Product Certifications:
- cULus || C-tick || CE || KCC || UKCA || UKEX
- Shock Resistance:
- 147 m/s² 3 chocks in each direction X, Y and Z EN/IEC 61131-2
- Ambient Air Temperature For Operation:
- 0-50 °C
- [Us] Rated Supply Voltage:
- 24 V DC
- Height:
- 173 mm
- Vibration Resistance:
- 3.5 mm 5-9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2 || 1 gn 9-150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2
- Width:
- 218 mm
- Terminal Type:
- touchscreen display
- Ip Degree Of Protection:
- IP20 IEC 60529 rear panel) || IP65 IEC 60529 front panel)
