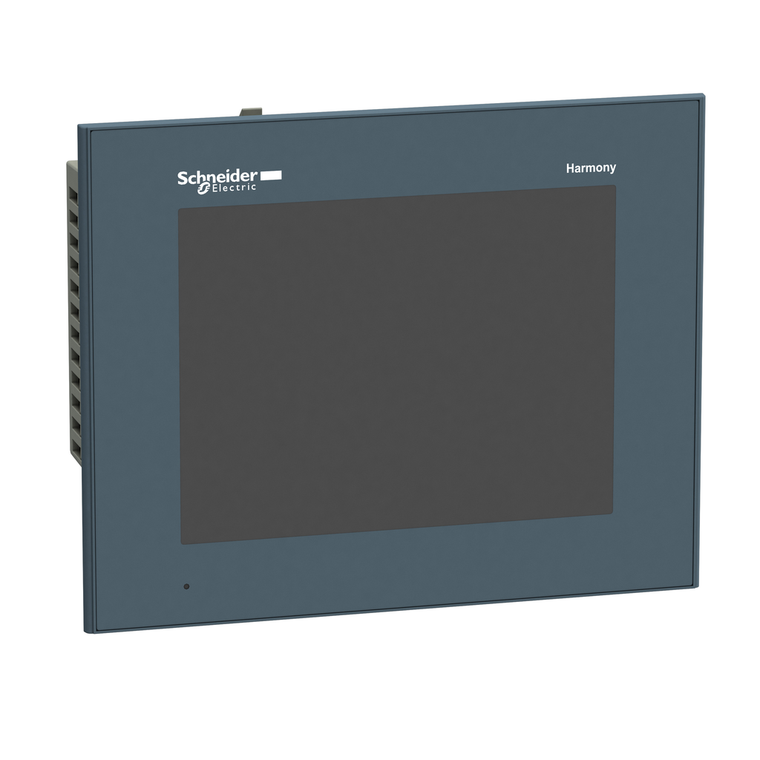

Schneider Electric HMIGTO4310FC Hmigto4310 Coated

Schneider Electric HMIGTO4310FC Hmigto4310 Coated

Schneider Electric
SKU:
HMIGTO4310FC
|
UPC:
3.60648E+12
$4,637.01
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
Advanced touchscreen panel, Harmony GTO, 7.5 Color Touch VGA TFT, coated display
Additional Information
China Rohs Regulation:
X
Software Designation:
Vijeo Designer configuration software >= V6.1
Ambient Air Temperature For Operation:
0-55 °C
Standards:
EN 61131-2 || IEC 61000-6-2 || UL 508
Maximum Power Consumption In W:
8 W when power is not supplied to external devices || 5 W when backlight is OFF || 5.5 W when backlight is dimmed || 12 W
Circularity Profile:
ENVEOLI1402012EN
Height:
173 mm
Type Of Cooling:
natural convection
Fixing Mode:
by 4 screw clamps
Terminal Type:
touchscreen display
Data Storage Equipment:
SD card, <= 32 GB || SDHC card, <= 32 GB
Product Mounting:
flush mounting
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Touch Panel:
resistive film, 1000000 cycles
Mercury Free:
Yes
Supply Voltage Limits:
19.2-28.8 V
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Display Colour:
65536 colours
Ip Degree Of Protection:
IP20 IEC 60529 rear panel) || IP65 IEC 60529 front panel)
Range Of Product:
Harmony GTO
Resistance To Electrostatic Discharge:
6 kV contact discharge IEC 61000-4-2 level 3
Memory Description:
flash EPROM, 96 MB
Supply:
external source
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Sustainable Offer Status:
Green Premium product
Width:
218 mm
Enclosure Material:
PPT
Character Font:
ASCII || Japanese (ANK, Kanji) || Taiwanese (traditional Chinese) || Korean || Chinese (simplified Chinese)
Integrated Connection Type:
COM1 serial link SUB-D 9 RS232C 2400...115200 bps || COM2 serial link RJ45 RS485 2400...115200 bps || COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI || Ethernet RJ45 10BASE-T/100BASE-TX || Ethernet RJ45 IEEE 802.3 || USB 2.0 type A || USB 2.0 typ
Local Signalling:
status LED green, steady offline || status LED green, steady operating || status LED orange, flashing software starting up || status LED red, steady power supply (ON) || status LED clear, faded power supply (OFF) || COM2 LED yellow, steady data is be
Net Weight:
1.2 kg
Inrush Current:
30 A
Ambient Air Temperature For Storage:
-20-60 °C
[Us] Rated Supply Voltage:
24 V DC
Display Resolution:
640 x 480 pixels VGA
Display Size:
7.5 inch
Depth:
60 mm
Battery Type:
lithium internal RAM 100 days 5 day(s) 10 year(s)
Operating Altitude:
< 6561.68 ft (2000 m)
Product Or Component Type:
advanced touchscreen panel
Product Certifications:
C-tick || cULus || CE || KCC || UKCA || UKEX
Data Backed Up:
512 KB internal RAM SRAM)
Environmental Disclosure:
ENVPEP1402012EN
Nema Degree Of Protection:
NEMA 4X front panel (indoor use)
Front Material:
PPT
Touch Sensitive Zone:
1024 x 1024
Vibration Resistance:
3.5 mm 5-9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2 || 1 gn 9-150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2
Rohs Exemption Information:
Yes
Relative Humidity:
10-90 % without condensation
Shock Resistance:
147 m/s² 3 chocks in each direction X, Y and Z EN/IEC 61131-2
Backlight Lifespan:
50000 hours white 25 °C
Brightness:
16 levels by touch panel || 16 levels by software
Display Type:
backlit colour TFT LCD
Downloadable Protocols:
Schneider Electric Modicon Modbus || Schneider Electric Modicon Uni-TE || Schneider Electric Modicon Modbus Plus || Schneider Electric Modicon FIPWAY || Mitsubishi Melsec third party protocols || Omron Sysmac third party protocols || Rockwell Automat
