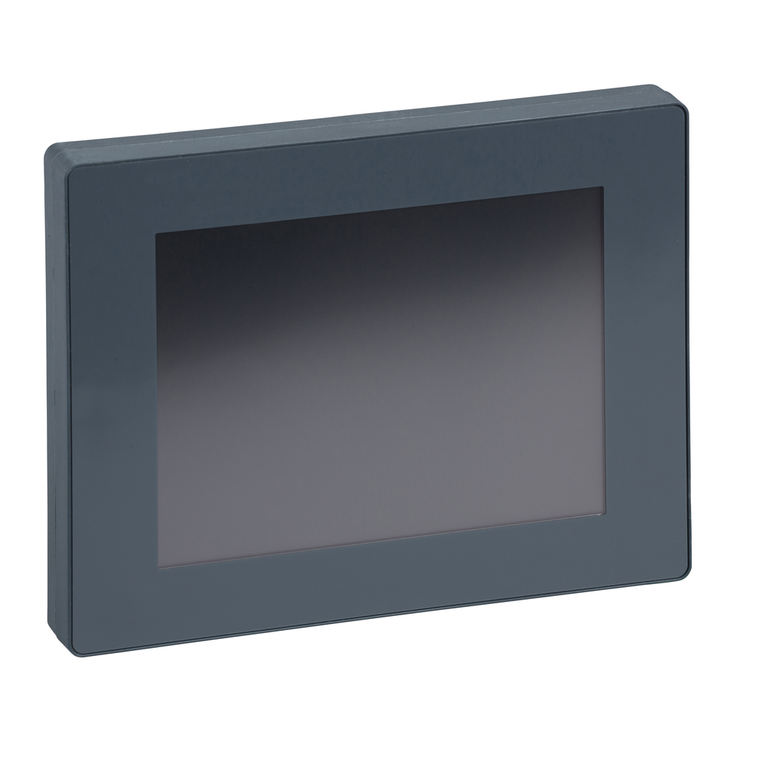

Schneider Electric HMIS85W Stu5In7 Front Module W/O Mark On Overlay

Schneider Electric HMIS85W Stu5In7 Front Module W/O Mark On Overlay

Schneider Electric
SKU:
HMIS85W
|
UPC:
3.59586E+12
Availability:
Contact us to confirm availability and lead times.
$624.98
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This product is part of the Harmony SCU range, an offer of HMI controllers from 3.5 to 5.7inch colour screens. The HMI small touchscreen features 5.7inch QVGA backlit LED colour TFT LCD display and supports 320 x 240 pixels resolution. It supports Taiwanese (traditional Chinese), Japanese (ANK, Kanji), Korean, ASCII and Chinese (simplified Chinese) character fonts. It supports 65536 colours with 50000 hours of backlight lifespan. The analogue touch panel with 16 levels brightness provides four viewing angles 60° left, 60° right, 40° top, 60° bottom in horizontal x vertical. Its dimensions are 163mm (width) x 129.4mm (depth) and weighs 0.405kg. The integrated design of Harmony SCU delivers maximum functionality while keeping installation easy. Designed for small machines and simple processes control, its state-of-the-art display provides clear readability. The Harmony SCU (formerly known as Magelis SCU) is designed to operate with EcoStruxure Machine Expert. It offers functionality for control of small machines and simple processes, while saving up to 30% in installation and ownership costs.
Additional Information
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Display Size:
5.7 inch
Width:
163 mm
Brightness:
16 levels via touch panel
Product Certifications:
UKCA || UKEX
Depth:
129.4 mm
Upgradeability:
Upgradeable through digital modules and upgraded components
Mercury Free:
Yes
Backlight Lifespan:
50000 hours 65536 colours
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Touch Panel:
analogue
China Rohs Regulation:
X
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Pixel Resolution:
320 x 240 pixels QVGA
Environmental Disclosure:
ENVPEP2101003EN
Character Font:
Taiwanese (traditional Chinese) || Japanese (ANK, Kanji) || Korean || ASCII || Chinese (simplified Chinese)
Display Type:
backlit LED colour TFT LCD
Rohs Exemption Information:
Yes
Range Of Product:
Harmony SCU
View Angle Horiz X Vert:
60° left || 60° right || 40° top || 60° bottom
Sustainable Offer Status:
Green Premium product
Net Weight:
0.405 kg
Product Or Component Type:
small touchscreen display HMI
Circularity Profile:
ENVEOLI2101003EN
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
