Schneider Electric HMISCU8A5 5.7Small Controller Panel For Machine.
Schneider Electric
$1,494.11
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

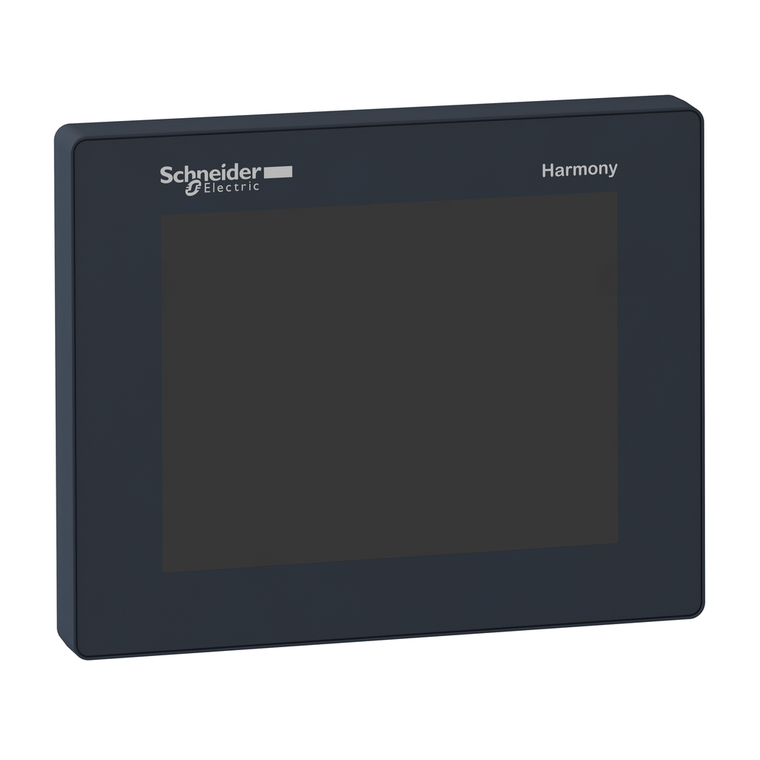

Schneider Electric HMISCU8A5 5.7Small Controller Panel For Machine.
This Magelis SCU small touchscreen operator interface controller (HMI) is supplied with 24V DC, has a 5.7" color TFT LCD display and 128MB EPROM. It also has 16 digital inputs, 10 digital outputs, 1 host + 1 mini-B USB ports, 1 RS232C / RS485 port and 1 CANopen port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. Its RS485 and CANopen host ports make it ideal to supervise and control simple systems and machines. Its multiple I/O, including high speed counters, allowing you to processes with fast sensing chains.
- Circularity Profile:
- ENVEOLI1405010EN
- Pollution Degree:
- 2 IEC 60664
- Connection Pitch:
- 3.5 mm
- Environmental Characteristic:
- corrosive gas free
- Absolute Accuracy Error:
- +/- 0.1 % of full scale cyclic ratio 1...99% fast output (PWM or PTO mode) || 1 % of full scale cyclic ratio 1...99% fast output (PWM or PTO mode) || +/- 5 % of full scale cyclic ratio 10...90% fast output (PWM or PTO mode) || +/- 10 % of full scale
- Input/Output Number:
- 2 fast input FI0...FI1 || 14 digital input DI0...DI13 || 2 fast output FQ0...FQ1 || 8 digital output DQ0...DQ7
- Width:
- 163 mm
- Environmental Disclosure:
- ENVPEP1405010EN
- Standards:
- IEC 61000-6-2 || ANSI/ISA 12-12-01 || CSA C22.2 No 213 Class I Division 2 || FCC Class A || EN 61131-2 || UL 508
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Realtime Clock:
- built-in
- Input Impedance:
- 2.81 kOhm || 4.7 kOhm
- Ip Degree Of Protection:
- IP20 IEC 60529 rear panel) || IP65 IEC 60529 front panel)
- Rohs Exemption Information:
- Yes
- Software Designation:
- SoMachine
- Display Size:
- 5.7 inch
- Number Of Common Point:
- 1 fast input (HSC mode) || 2 digital input
- Number Of Pages:
- limited by internal memory capacity
- Backlight Lifespan:
- 50000 hours 65000 colours
- Mercury Free:
- Yes
- Range Of Product:
- Harmony SCU
- Touch Panel:
- analogue
- [Us] Rated Supply Voltage:
- 24 V 20.4-28.8 V)DC
- Product Certifications:
- cULus 508 || KCC || cULus CSA 22-2 No 142 || GOST || cUL 1604 Class 1 Division 2 || C-tick || UKCA || UKEX
- Vibration Resistance:
- +/- 3.5 mm 5-9 Hz) IEC 60068-2-6 || 1 gn 9-150 Hz) IEC 60068-2-6
- Height:
- 129.4 mm
- Brightness:
- 16 levels via touch panel
- Ambient Air Temperature For Operation:
- 0-50 °C
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Device Presentation:
- complete product
- China Rohs Regulation:
- X
- Integrated Connection Type:
- 1 serial link - RJ45 - RS232/RS485 <= 115.2 kbits/s) || 1 Ethernet TCP/IP - RJ45 || 1 USB 2.0 type mini B || 1 USB 2.0 type A || CANopen master bus - SUB-D 9
- View Angle Horiz X Vert:
- 60° left || 60° right || 40° top || 60° bottom
- Discrete Input Number:
- 2 fast input (normal mode) IEC 61131-2 Type 1 || 14 digital input IEC 61131-2 Type 1
- Discrete Output Voltage:
- 24 V DC 19.2...28.8 V)transistor || 24 V DC 5...30 V)relay || 220 V AC 100...250 V)relay
- Maximum Cable Distance Between Devices:
- shielded cable <10 m fast input || shielded cable <100 m digital input || unshielded cable <50 m digital input
- Storage Altitude:
- 0-10000 m
- Local Signalling:
- no indicator
- Depth:
- 76.22 mm
- Processor Frequency:
- 333 MHz
- Operating Altitude:
- <= 6561.68 ft (2000 m)
- Discrete Input Voltage:
- 24 V DC sink or source (positive/negative)
- Isolation Between Channels:
- none
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Downloadable Protocols:
- Modbus TCP/IP || CANopen || Modbus
- Configurable Filtering Time:
- 0 ms no filter none) || 0.004...0.04 ms bounce filter latch/event and cumulative filter by step Nx0.5ms (64>=N>=2)) || 3...12 ms integrator none/run/stop)
- Ambient Air Temperature For Storage:
- -20-60 °C
- Marking:
- CE
- Maximum Pressure:
- 800...1114 hPa
- Upgradeability:
- Upgradeable through digital modules and upgraded components
- Power Consumption In W:
- 24 W
- Immunity To Microbreaks:
- 10 ms
- Character Font:
- Taiwanese (traditional Chinese) || ASCII || Korean || Japanese (ANK, Kanji) || Chinese (simplified Chinese)
- Overvoltage Protection:
- with
- Sensor Power Supply:
- 15-28.8 V DC >= 15 V >= 5 mA <= 5 V <= 1.5 mA || 15-28.8 V DC >= 15 V >= 2.5 mA <= 5 V <= 1 mA
- Sustainable Offer Status:
- Green Premium product
- Electromagnetic Compatibility:
- electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2 || electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 || susceptibility to electromagnetic fiel
- Shock Resistance:
- 147 m/s² 11 ms on DIN rail)IEC 60068-2-27 || 294 m/s² 6 ms on panel mounting)IEC 60068-2-27
- Maximum Output Frequency:
- 100 kHz fast output (PTO mode) || 1 kHz fast output (PWM mode)
- Discrete Input Current:
- 7.83 mA fast input || 5 mA digital
- Isolation Between Channels And Internal Logic:
- 500 V DC
- Inrush Current:
- 30 A
- Maximum Input Frequency:
- 100 kHz fast input (encoder mode) A/B || 100 kHz fast input single phase || 100 kHz fast input pulse/direction
- Nema Degree Of Protection:
- NEMA 4X front panel
- Display Resolution:
- 320 x 240 pixels QVGA
- Memory Description:
- flash NAND, 128 MB || internal data storage FRAM, 128 kB || application run DRAM, 128 MB
- Insulation Resistance:
- > 10 MOhm between the I/O and internal logic || > 10 MOhm between power supply and earth
- Processor Name:
- CPU RISC
- Net Weight:
- 0.764 kg
- Display Type:
- backlit LED colour TFT LCD
- Fixing Mode:
- by 1 nut à 22 mm 1...6 mm thick panel
- Operating System:
- Harmony
- Relative Humidity:
- 5-85 % without condensation
- Discrete Output Current:
- 2 A 4 A)5 ms opening contact digital output || 2 A 4 A)2 ms closing contact digital output || 300 mA2 ms fast output (normal mode) || 50 mA2 ms fast output (PWM or PTO mode)
- Supply:
- external source
- Enclosure Material:
- PC/PBT and PAA
- Discrete Output Number:
- 2 fast output (normal mode) source || 8 digital output source
- Product Or Component Type:
- small touch HMI controller
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
-
-
