Schneider Electric HMIST6200 4" W Basic Operator Terminal

Schneider Electric HMIST6200 4" W Basic Operator Terminal

Schneider Electric
SKU:
HMIST6200
|
UPC:
3.60649E+12
Availability:
Contact us to confirm availability and lead times.
$515.64
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

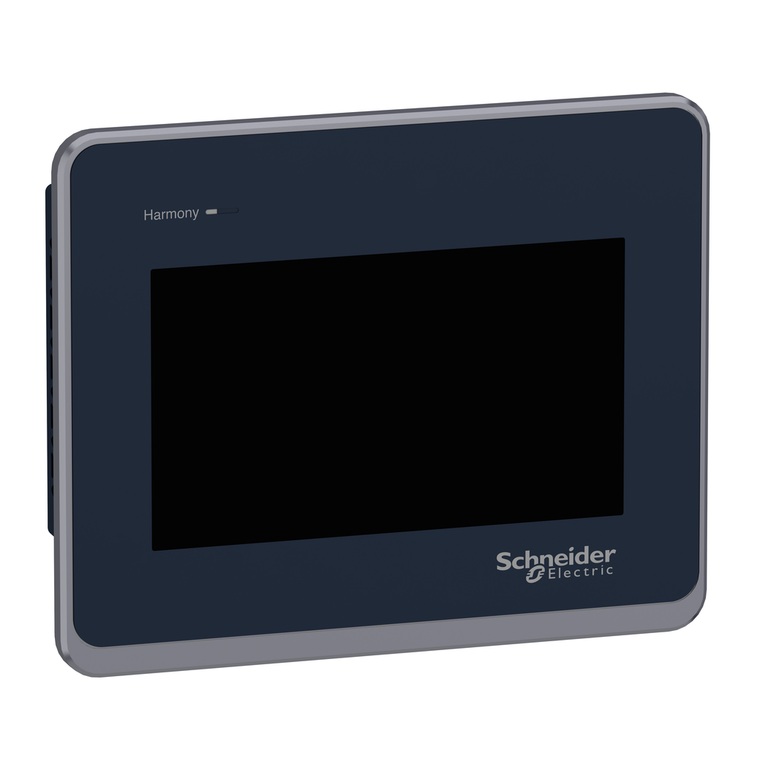

This Basic HMI panel belongs to the Schneider Electric Harmony ST6 range. This single touch resistive HMI is made of alluminium front panel with a multi-color status indicator showing the various operating modes. This HMI interface is 4.3 inch wide with 16 million colors and 480 x 272 pixel resolution. It is powered by EcoStruxure Operator Terminal Expert software for intuitive user experience. It has a 800 MHz ARM Cortex-A8 CPU, 512 MB device memory, 128 MB user data memory, and 512 KB backup memory. This HMI ST6 supports 1x Ethernet port, 1x COM1 (RS-232C or RS-485), 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port. Its dimensions are 134.5mm (width) x 108.5mm (height) x 43mm (depth) and weighs 0.40Kg. This is intended for indsutries like packaging, food & beverage, textile, HVAC equipment, and compressors, and also for end users looking for maintenance of their Web devices. It conforms to standards like EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 and certifications like CSA, CE, China RoHS, KC, REACH. This range is designed to meet the needs of simple machine operators for good visualization, connectivity, cybersecurity with EcoStruxure Secure Connect Advisor, and cost effective equipment. The various degree of protection are IP65F, Type 1, Type 4X (indoor use only), Type 13 (on the front panel when properly installed in an enclosure).
Additional Information
Brightness:
16 levels
[Us] Rated Supply Voltage:
24 V DC +/- 20 %)
Realtime Clock:
built-in 0...50 °C || built-in 10...90 % RH
Ambient Air Temperature For Storage:
-20-60 °C
Rohs Exemption Information:
Yes
Electromagnetic Compatibility:
electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4 || electrical fast transient/burst immunity test - test level: 1 kV (signal ports) || electrostatic discharge immunity test - test level: 6 kV
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Power Consumption In W:
6.9 W
Memory Description:
512 MB device memory || 128 MB user data memory || 512 KB backup memory
Character Font:
ASCII || ASCII (European characters) || Chinese (simplified Chinese) || Japanese (ANK, Kanji) || Katakana || Korean || Taiwanese (traditional Chinese)
Range Of Product:
Harmony ST6
Inrush Current:
30 A
Shock Resistance:
147 m/s² 11 ms X, Y, Z directions for 10 cycles (approx. 100 min))IEC 61131-2
Display Size:
4 inch
Depth:
43 mm
Enclosure Material:
PC
Marking:
CE
Ambient Air Temperature For Operation:
0-50 °C
Fixing Mode:
by 2 screws 1.6...5 mm thick panel UL 61010-2-201 || by 2 screws IEC 61131-2 || by 2 screws IEC 61000-6-2
Operating Altitude:
6561.68 ft (2000 m)
Standards:
IEC 61000-6-4 || IEC 61000-6-2 || IEC 61131-2 || UL 61010-2-201 || CSA C22.2 No 61010-2-201
Product Or Component Type:
touch panel screen
Processor Frequency:
800 MHz
Product Certifications:
CSA || CE || UKCA
Software Package:
EcoStruxure Operator Terminal Expert
Display Colour:
16 million colours
Width:
134.5 mm
Directives:
2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
Backlight Lifespan:
50000 hours white
China Rohs Regulation:
X
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Front Material:
aluminium
Downloadable Protocols:
Modbus || Uni-TE || third party protocols
Immunity To Microbreaks:
2 ms
Height:
108.5 mm
Ip Degree Of Protection:
IP20 IEC 61131-2 rear panel) || IP65 IEC 61131-2 front panel)
Relative Humidity:
10-90 % non-condensing
Integrated Connection Type:
1 COM1 serial link - 1 SUB-D 9-pin female - RS232C/RS485 2400...115200 bps)bottom || COM1 serial link 2400...187500 bps)back || 1 USB 2.0 type Aback || 1 USB 2.0 type micro Bbottom || 1 Ethernet - female RJ45 - RS485
Vibration Resistance:
+/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2 || 9.8 m/s² 9-150 Hz)
Display Resolution:
480 x 272 pixels
Cut-Out Dimensions:
118.5 x 92.5 mm panel cut dimension
Supply:
external supply
Number Of Pages:
200 application pages
Net Weight:
0.4 kg
Circularity Profile:
ENVEOLI1810005_V2
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Processor Name:
ARM Cortex-A8
Nema Degree Of Protection:
NEMA 4 front panel (indoor use) || NEMA 13 front panel (in enclosure)
Product Brand:
Schneider Electric Modicon || Mitsubishi Melsec || Omron Sysmac || Rockwell Automation Allen-Bradley || Siemens Simatic
Environmental Disclosure:
ENVPEP1810005EN
Display Type:
colour TFT LCD
Port Ethernet:
10/100BASE
Local Signalling:
status LED green, steady offline || status LED green, steady operating || status LED green, flashing operating || status LED green, faded stand-by || status LED orange, flashing software starting up || status LED red, steady power supply (ON) || stat
Touch Panel:
single touch analogue resistive
Sustainable Offer Status:
Green Premium product
