Schneider Electric HMISTM6200 "4""W Basic Modular Terminal"
Schneider Electric
$683.38
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric HMISTM6200 "4""W Basic Modular Terminal"

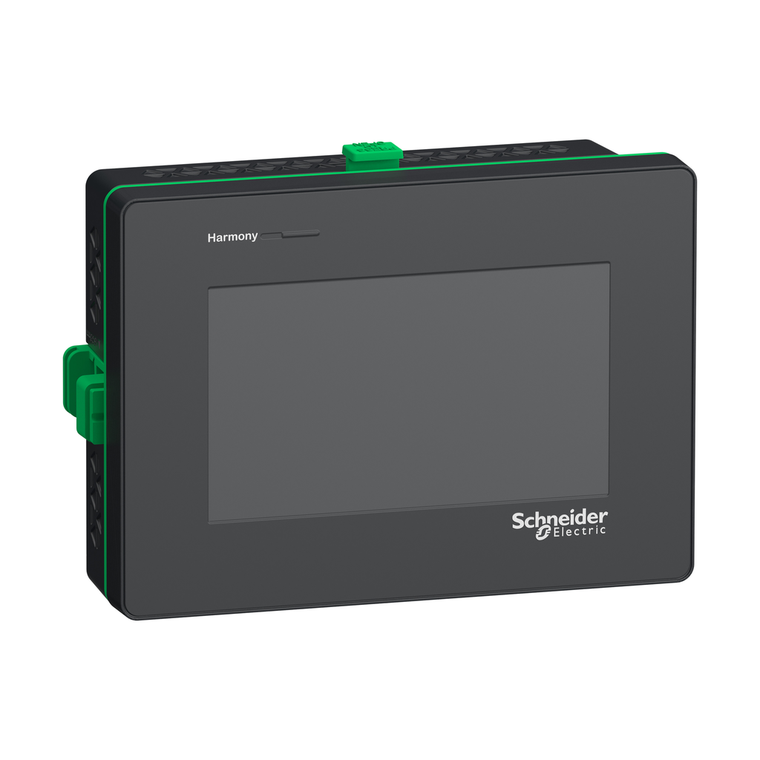

This Basic Modular HMI panel belongs to the Schneider Electric Harmony ST6 range. This single touch resistive HMI has a multi-color status indicator showing the various operating modes. This HMI interface is 4.3 inch wide with 16 million colors and 480 x 272 pixel resolution. It is a modular HMI with 22mm pushbutton mounting system and is powered by EcoStruxure Operator Terminal Expert software for intuitive user experience. It has a 800 MHz ARM Cortex-A8 CPU, 1 GB device memory, 128 MB user data memory, and 512 KB backup memory. This HMI ST6 supports 2x Ethernet port, 1x COM1 (RS-232C or RS-485), 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port. Its dimensions are 134.5mm (width) x 108.5mm (height) x 43mm (depth) and weighs 0.40Kg. This is intended for indsutries like packaging, food & beverage, textile, HVAC equipment, and compressors, and also for end users looking for maintenance of their Web devices. It conforms to standards like EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 and certifications like CSA, CE, China RoHS, KC, REACH, ATEX Zone2/22, Marine. This range is designed to meet the needs of simple machine operators for good visualization, connectivity, cybersecurity with EcoStruxure Secure Connect Advisor, and cost effective equipment. The various degree of protection are IP65F, Type 1, Type 4X (indoor use only),Type 12 and Type 13 (on the front panel when properly installed in an enclosure).
- Inrush Current:
- 30 A
- Nema Degree Of Protection:
- NEMA 4 front panel (indoor use) || NEMA 13 front panel (in enclosure)
- Marking:
- CE
- Electromagnetic Compatibility:
- electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4 || electrical fast transient/burst immunity test - test level: 1 kV (signal ports) || electrostatic discharge immunity test - test level: 6 kV
- Cut-Out Dimensions:
- Ã 22.5 mm
- Supply:
- external supply
- Touch Panel:
- single touch analogue resistive
- Net Weight:
- 0.49 kg
- Vibration Resistance:
- +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2 || 9.8 m/s² 9-150 Hz)
- Shock Resistance:
- 147 m/s² 11 ms X, Y, Z directions for 10 cycles (approx. 100 min))IEC 61131-2
- Standards:
- IEC 61000-6-4 || IEC 61000-6-2 || IEC 61131-2 || UL 61010-2-201 || CSA C22.2 No 61010-2-201 || CSA C22.2 No 213
- Ambient Air Temperature For Storage:
- -20-60 °C
- Enclosure Material:
- PC
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ambient Air Temperature For Operation:
- 0-50 °C
- Port Ethernet:
- 10/100BASE
- Product Brand:
- Schneider Electric Modicon || Mitsubishi Melsec || Omron Sysmac || Rockwell Automation Allen-Bradley || Siemens Simatic
- Power Consumption In W:
- 7.8 W
- Display Size:
- 4 inch
- Downloadable Protocols:
- Modbus || Uni-TE || third party protocols
- Sustainable Offer Status:
- Green Premium product
- Fixing Mode:
- Ã 22 mm hole 1.5 to 6 mm thick panel UL 61010-2-201 || Ã 22 mm hole IEC 61131-2 || Ã 22 mm hole IEC 61000-6-2
- Display Colour:
- 16 million colours
- Memory Description:
- 1 GB device memory || 128 MB user data memory || 512 KB backup memory
- Range Of Product:
- Harmony ST6
- Front Material:
- plastic
- Circularity Profile:
- ENVEOLI2007003EN
- Processor Name:
- ARM Cortex-A8
- Realtime Clock:
- built-in 0...50 °C || built-in 10...90 % RH
- Software Package:
- EcoStruxure Operator Terminal Expert
- Processor Frequency:
- 800 MHz
- Backlight Lifespan:
- 20000 hours white
- Ip Degree Of Protection:
- IP20 IEC 61131-2 rear panel) || IP65 IEC 61131-2 front panel)
- Operating Altitude:
- 6561.68 ft (2000 m)
- Environmental Disclosure:
- ENVPEP2007003EN
- Relative Humidity:
- 10-90 % non-condensing
- Mercury Free:
- Yes
- Rohs Exemption Information:
- Yes
- Directives:
- 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Number Of Pages:
- 200 application pages
- Depth:
- 53.9 mm
- Display Type:
- colour TFT LCD
- Product Or Component Type:
- touch panel screen
- China Rohs Regulation:
- X
- Width:
- 145.6 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Brightness:
- 16 levels
- Product Certifications:
- CE || UKCA || cULus || RCM || KC || cULus Class 1 Division 2 || DNV || ABS || RINA || BV
- Local Signalling:
- status LED green, steady offline || status LED green, steady operating || status LED green, flashing operating || status LED green, faded stand-by || status LED orange, flashing software starting up || status LED red, steady power supply (ON) || stat
- Display Resolution:
- 480 x 272 pixels
- [Us] Rated Supply Voltage:
- 24 V DC +/- 20 %)
- Height:
- 108.2 mm
- Character Font:
- ASCII || ASCII (European characters) || Chinese (simplified Chinese) || Japanese (ANK, Kanji) || Katakana || Korean || Taiwanese (traditional Chinese)
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Integrated Connection Type:
- 1 COM1 serial link - female RJ45 - RS232C/RS485 2400...115200 bps)bottom || 1 USB 2.0 type Aback || 1 USB 2.0 type micro Bback || 2 Ethernet - female RJ45bottom
- Immunity To Microbreaks:
- 2 ms
- Catalog:
- View
- Datasheet:
- View
