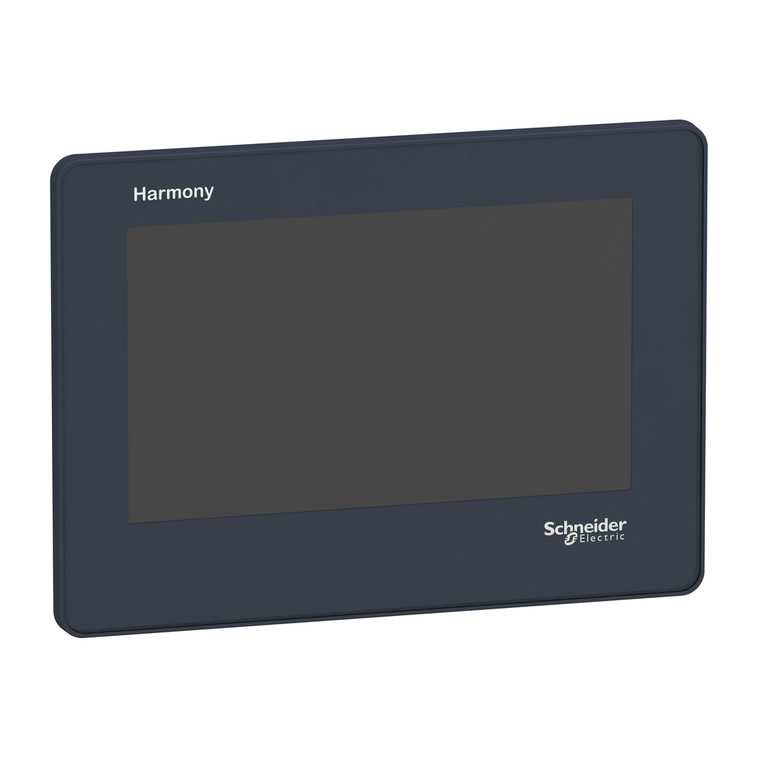

Schneider Electric HMISTO705 4.3" Touch Panel Screen Rs232C
Schneider Electric
$434.88
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric HMISTO705 4.3" Touch Panel Screen Rs232C
This Magelis STO small touchscreen operator interface (HMI) is supplied with 12V to 24V DC, has a 4.3" color TFT LCD display with, 480 x 272 pixels and 26MB EPROM. It also has 1 host + 1 mini-B USB ports and 1 RS232C / RS485 port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays color graphic pages. Its RS485 host port makes it ideal to supervise and control simple systems and machines.
- Rohs Exemption Information:
- Yes
- Standards:
- ANSI/ISA 12.12.01 || CSA C22.2 No 142 || EN 61000-6-2 || CSA C22.2 No 213 || UL 61010-1 || EN 61131-2 || EN 61000-6-4 || UL 61010-2-201
- Realtime Clock:
- with RTC-battery set optional
- Enclosure Material:
- PPT
- Range Of Product:
- Harmony STO & STU
- Display Size:
- 4.3 inch
- Display Colour:
- 65536 colours
- Vibration Resistance:
- 1 gn 5-150 Hz) IEC 61131-2 || 3.5 mm constant amplitude 5-150 Hz) IEC 61131-2
- Sustainable Offer Status:
- Green Premium product
- Number Of Pages:
- 8999
- Ip Degree Of Protection:
- IP65f front panel) || IP20 rear panel)
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Display Resolution:
- 480 x 272 pixels
- Software Designation:
- EcoStruxure Operator Terminal Expert
- [Us] Rated Supply Voltage:
- 12...24 V DC - 10...20 %
- Product Or Component Type:
- touch panel screen
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Net Weight:
- 0.22 kg
- Front Material:
- plastic
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Character Font:
- ASCII (European characters) || Chinese (simplified Chinese) || Korean || Japanese (ANK, Kanji) || Cyrillic || Taiwanese (traditional Chinese)
- Range Compatibility:
- MitsubishI || Siemens || Omron || Allen-Bradley
- Operating Altitude:
- 6561.68 ft (2000 m)
- China Rohs Regulation:
- X
- Product Certifications:
- KCC || CE || UL || C-tick || ATEX zone 2/22 || cUL || UKCA
- Power Consumption In W:
- 7.5 W
- Mercury Free:
- Yes
- Operating System:
- Harmony
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Electromagnetic Compatibility:
- resistance to radiated electromagnetic fields - test level: 10 V/m (80 MHz...2.7 GHz) || resistance to electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to EN 61000-4-2 || resistance to electrostatic discharge - test level
- Circularity Profile:
- ENVEOLI1511015EN
- Integrated Connection Type:
- 1 USB 2.0 type mini B || 1 USB 2.0 type A || 1 serial link - 9-pin terminal block - RS232C 2400...115200 bps)
- Relative Humidity:
- 10-90 % without condensation
- Memory Description:
- back up of data 512 KB || application memory 26 MB
- Touch Panel:
- analogue
- Supply:
- external source
- Ambient Air Temperature For Operation:
- 0-50 °C
- Environmental Disclosure:
- ENVPEP1511015EN
- Downloadable Protocols:
- third party protocols || Modbus
- Shock Resistance:
- 15 gn 11 msIEC 61131-2
- Brightness:
- 16 levels via touch panel
- Backlight Lifespan:
- 50000 hours white
- Fixing Mode:
- by 2 installation fasteners 1.5 to 6 mm thick panel
- Nema Degree Of Protection:
- NEMA 4X/13 front panel indoor use)
- Ambient Air Temperature For Storage:
- -20-60 °C
- Cut-Out Dimensions:
- 77.5 x 112.5 mm || 66 x 105 mm with mounting adaptor
- Display Type:
- colour TFT LCD
