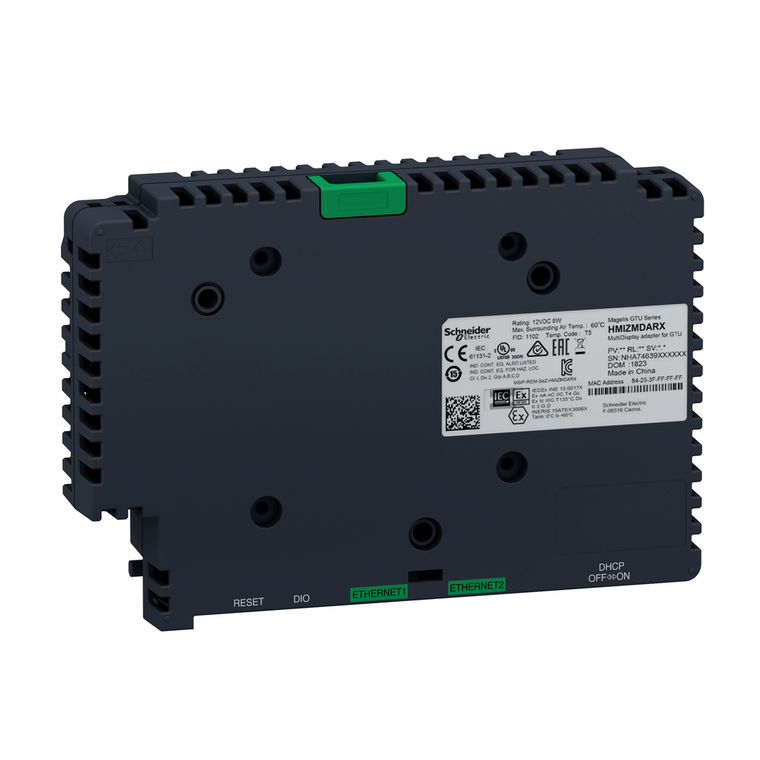

Schneider Electric HMIZMDARX Multidisplay Adaptor For Gtu

(No reviews yet) Write a Review

Write a Review

Schneider Electric HMIZMDARX Multidisplay Adaptor For Gtu

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

HMIZMDARX

UPC:

3606480778711

MPN:

Condition:

New

Output Current:

50 mA

Accessory / Separate Part Type:

adaptor

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Input Voltage:

12 V DC module supply || 24 V DC

Mercury Free:

Yes

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Product Compatibility:

Harmony GTU open || Harmony iPC industrial PCs

Accessory / Separate Part Category:

adaptation accessory

Rohs Exemption Information:

Yes

Net Weight:

0.8 kg

[Us] Rated Supply Voltage:

12 V DC module supply

Reach Free Of Svhc:

Yes

Ambient Air Temperature For Operation:

0-60 °C

Electromagnetic Compatibility:

electrostatic discharge immunity test - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 || electrostatic discharge immunity test - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2

China Rohs Regulation:

X

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Output Voltage Type:

DC

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Relative Humidity:

10-90 % non-condensing

Accessory / Separate Part Destination:

Harmony GTU display

Type Of Cooling:

natural

Output Voltage:

24 V

Ambient Air Temperature For Storage:

-20-60 °C

Operating Altitude:

6561.68 ft (2000 m)

Power Consumption In W:

8 W

Shock Resistance:

147 m/s²X, Y, Z directions for 3 times EN/IEC 61131-2

Pollution Degree:

2

Vibration Resistance:

3.5 mm constant amplitude 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) EN/IEC 61131-2 || 9.8 m/s² constant acceleration 9-150 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) EN/IEC 61131-2

Width:

188 mm

Product Certifications:

UL 508 || CSA C22-2 No 142 || CSA C22-2 No 213 || cULus HazLoc Class I Division 2 ANSI/ISA 12-12-01 || IEC-Ex || ATEX zone 2/22 || EAC || UKCA || UKEX

Environmental Characteristic:

corrosive gas free || dustproof

Local Signalling:

LED green, steady operating status (RUN) || LED green, faded stand-by || LED green/orange, alternate program mode || LED orange, flashing establishing communication connection || LED red, steady power ON || LED green, orange and red, alternate ERROR

Resistance To Fast Transients:

1 kV IEC 61000-4-4 signal ports) || 2 kV IEC 61000-4-4 power ports)

Height:

131 mm

Depth:

35 mm

Integrated Connection Type:

1 DIO terminal block 3 inputs + 1 output || 2 Ethernet TCP/IP RJ45 jack

Range Of Product:

Harmony GTU
