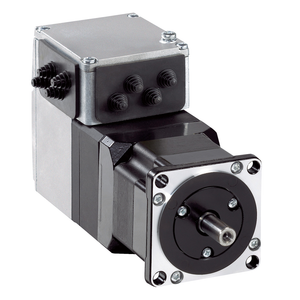

Schneider Electric ILA1F571PB1A0 Lexium Ila Servomot 24 36V Canop Enc

SKU:

ILA1F571PB1A0

UPC:

3389119225380

MPN:

Condition:

New

Number Of Motor Poles:

6

Peak Stall Torque:

0.6 N.m

Ambient Air Temperature For Storage:

-25-70 °C

Associated Fuse Rating:

0.416666666666667

Input/Output Type:

4 signals (each be used as input or output)

Net Weight:

1.4 kg

Accuracy Error:

+/- 0.05 °

Relative Humidity:

15-85 % without condensation

Voltage State 0 Guaranteed:

-3...4.5 V

Shaft End:

untapped

Motor Type:

AC Synchronous Servo Motor

Holding Brake:

without

Pvc Free:

Yes

Product Or Component Type:

motion integrated drive

Device Short Name:

ILA

Type Of Cooling:

natural convection

Electrical Connection:

printed circuit board connector

Feedback Type:

single turn encoder

Shaft Length:

20 mm

Maximum Radial Force Fr:

89 N

Shock Resistance:

150 m/s² 1000 shocks IEC 60068-2-29

Second Shaft:

without second shaft end

Vibration Resistance:

20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6

Number Of Motor Stacks:

1

[Us] Rated Supply Voltage:

24 V || 36 V

Rohs Exemption Information:

Yes

Motor Flange Size:

57 mm

Circle Diameter Of The Mounting Holes:

66.6 mm

Winding Type:

medium speed of rotation and medium torque

China Rohs Regulation:

X

Length:

145.3 mm

Shaft Diameter:

9 mm

Rotor Inertia:

0.1 kg.cm²

Current Consumption:

5000 mA maximum continuous || 7000 mA peak

Operating Altitude:

<= 3280.84 ft (1000 m) without derating

Standards:

IEC 61800-3 || IEC 60072-1 || EN 61800-3:2001, second environment || IEC 50178 || IEC 50347 || IEC 61800-3, Ed 2 || EN 61800-3 : 2001-02

Phase:

single phase

Gear Box Type:

without

Nominal Torque:

0.26 N.m

Speed Feedback Resolution:

16384 points/turn

Voltage State 1 Guaranteed:

15...30 V

Maximum Axial Force Fa:

104 N force pressure) || 104 N tensile force)

Discrete Output Voltage:

23...25 V

Nominal Speed:

3200 rpm 24 V || 5500 rpm 36 V

Maximum Switching Current:

100 mA per output || 200 mA total

Transmission Rate:

50, 100, 125, 250, 500, 800 and 1000 kbauds

Service Life In Hours:

20000 h bearing

Mounting Holes Diameter:

5.2 mm

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Discrete Input Current:

10-10 mA at 24 V on/STO_A safety input || 3-3 mA at 24 V on/STO_B safety input || 2-2 mA at 24 V 24 V signal interface

Warranty:

18 months

Network Type:

DC

Protection Type:

short circuit of the output voltage || overload of output voltage || safe torque off

Sustainable Offer Status:

Green Premium product

Permissible Ambient Air Temperature Around The Device:

105 °C power amplifier || 110 °C motor

Marking:

CE

Ip Degree Of Protection:

shaft bushing IP41 IEC 60034-5 || total except shaft bushing IP54 IEC 60034-5

Continuous Stall Torque:

0.26 N.m

Range Of Product:

Lexium integrated drive

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Communication Interface:

CANopen DS301, Integrated

Supply Voltage Limits:

18-40 V

Environmental Disclosure:

ENVPEP2011004EN

Circularity Profile:

ENVEOLI2011004EN

Number Of Mounting Holes:

4

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Product Certifications:

TÜV || cUL || UL

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Centring Collar Diameter:

50 mm

Mercury Free:

Yes

Mounting Support:

flange

Centring Collar Depth:

1.6 mm

Ambient Air Temperature For Operation:

50-65 °C with power derating of 2 % per °C) || 0-50 °C without derating)
