safe torque off || overload of output voltage || short circuit of the output voltage
Nominal Speed:
2600 rpm 24 V || 4300 rpm 36 V
Motor Flange Size:
57 mm
Centring Collar Diameter:
50 mm
Speed Feedback Resolution:
16384 points/turn x 4096 turns
Number Of Mounting Holes:
4
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Service Life In Hours:
20000 h bearing
Mounting Holes Diameter:
5.2 mm
Accuracy Error:
+/- 0.05 °
Holding Torque:
1.2 N.m holding brake
Environmental Disclosure:
ENVPEP2011004EN
Sustainable Offer Status:
Green Premium product
Permissible Ambient Air Temperature Around The Device:
105 °C power amplifier || 110 °C motor
Motor Type:
AC Synchronous Servo Motor
Type Of Cooling:
natural convection
Voltage State 0 Guaranteed:
-3...4.5 V
Transmission Rate:
50, 100, 125, 250, 500, 800 and 1000 kbauds
Discrete Output Voltage:
23...25 V
Communication Interface:
CANopen DS301, Integrated
Electrical Connection:
industrial connector
Ambient Air Temperature For Operation:
50-65 °C with power derating of 2 % per °C) || 0-50 °C without derating)
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Brake Pull-In Power:
10 W
Winding Type:
medium speed of rotation and medium torque
Circularity Profile:
ENVEOLI2011004EN
Second Shaft:
without second shaft end
Shaft Length:
20 mm
Product Certifications:
cUL || TÃV || UL
Marking:
CE
Gear Box Type:
without
Phase:
single phase
Relative Humidity:
15-85 % without condensation
Pvc Free:
Yes
Number Of Motor Poles:
6
Shaft End:
untapped
Mounting Support:
flange
Standards:
IEC 61800-3, Ed 2 || EN 61800-3 : 2001-02 || IEC 60072-1 || EN 61800-3:2001, second environment || EN/IEC 61800-3 || EN 50347 || EN/IEC 50178
Associated Fuse Rating:
0.416666666666667
Brake Release Time:
14 ms
Device Short Name:
ILA
Feedback Type:
single turn encoder
Number Of Motor Stacks:
2
Shaft Diameter:
9 mm
Peak Stall Torque:
0.72 N.m
Circle Diameter Of The Mounting Holes:
66.6 mm
Centring Collar Depth:
1.6 mm
Warranty:
18 months
Supply Voltage Limits:
18-40 V
Continuous Stall Torque:
0.45 N.m
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Holding Brake:
with
China Rohs Regulation:
X
Brake Application Time:
13 ms
Mercury Free:
Yes
Voltage State 1 Guaranteed:
15...30 V
Nominal Torque:
0.45 N.m
Operating Altitude:
<= 3280.84 ft (1000 m) without derating
Current Consumption:
7000 mA maximum continuous || 8500 mA peak
Discrete Input Current:
10-10 mA at 24 V on/STO_A safety input || 3-3 mA at 24 V on/STO_B safety input || 2-2 mA at 24 V 24 V signal interface
[Us] Rated Supply Voltage:
36 V || 24 V
Maximum Axial Force Fa:
104 N force pressure) || 104 N tensile force)
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)

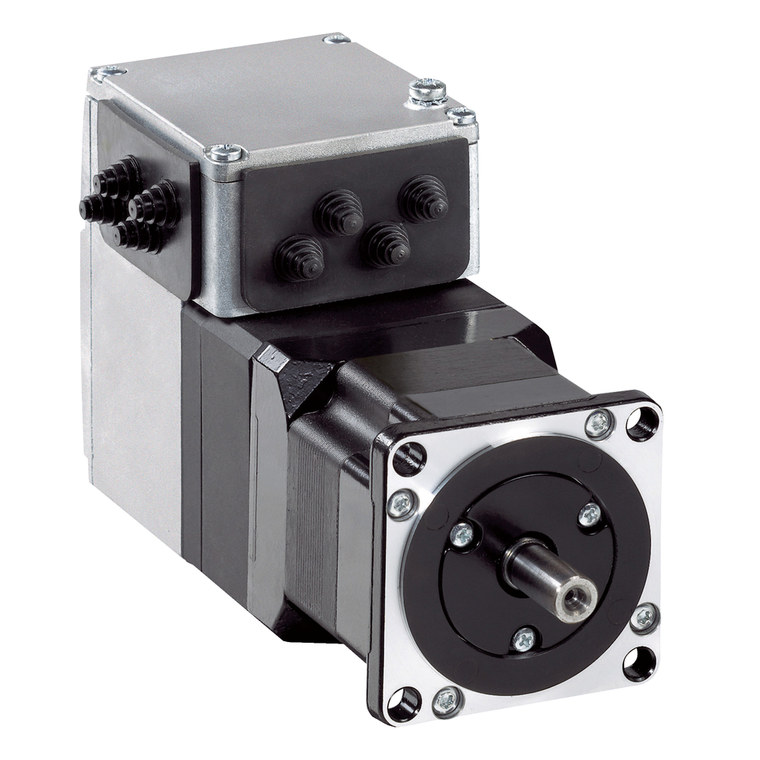

This product is part of the Lexium ILA range, an offer of motion integrated drives for motion control. The motion integrated drive with a 6-pole AC synchronous servo motor features an integrated...
